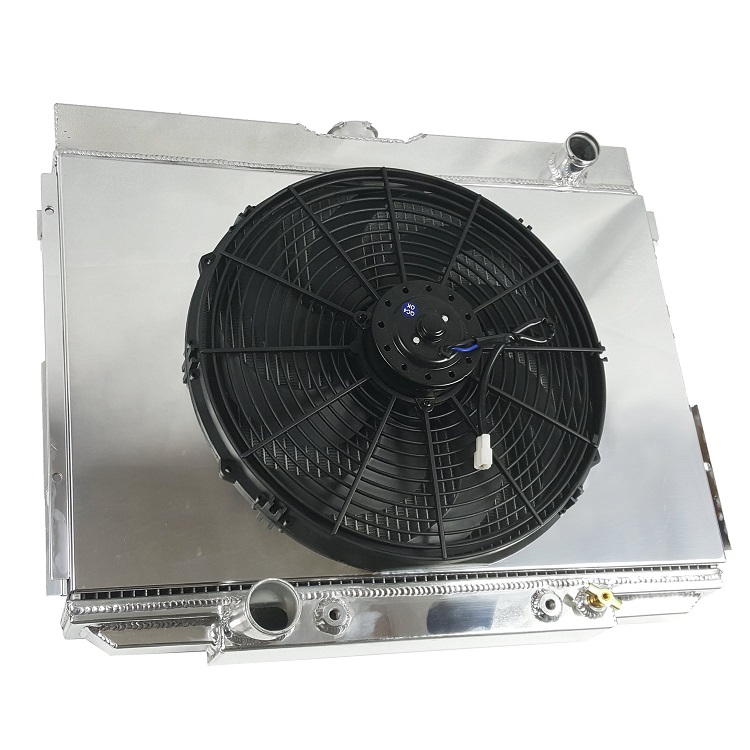

Champion Aluminum Radiator Plus
Shroud and SPAL-1516 Medium Profile 16" Fan

The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below

3-Row Core | Cools 650hp | Usually For Big Blocks

Radiator Dimensions:
Total: 20.88" tall (21.5" with cap) x 25.75" wide (including brackets)
Core: 16.5" tall x 24.25" wide x 2" thick
Inlet: 1.5" passenger
Outlet: 1.75" driver
Tanks: 2.5" thick
Tubes: 0.63" thick
Total Thickness: 5.5" thick

Typically Saddle mounted, Includes Bracket Mounts

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
