Ledfoot Racing
M - F | 8:30am - 4:30pm PST
714-974-1650

Baracuda (66-69) 22" Small Block Radiator

Scroll down for additional options

This is the 22" Core radiator call if you need the 26" Core.
Please note your inlet and outlet positions.
Call if you have any questions.


No OEM Shroud support

EC2374-2374FS10SP

EC2374-2374FS10SP

EC2374-2374FS10SP
Click to enlarge image(s)

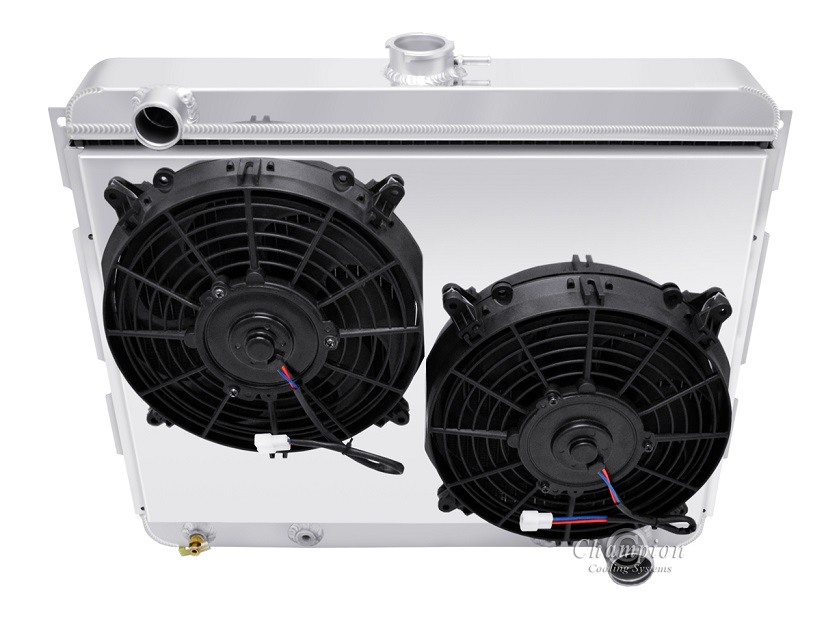

Champion All Aluminum Radiator
Plus 2-10" SPAL-0435 Fans "SAVE $30"
2-Row Core | Cools 375hp

Radiator Dimensions:
Total: 20" tall (21" with cap) x 25.75" (with brackets)
Core: 15.88" tall x 22.38" wide x 1.75" thick
Inlet: 1.5" Driver's side off-Center
Outlet: 1.75" passenger
Tanks: 2.75" thick
Tubes: 0.75" thick
Total Thickness: 5.5" (4" between fan motors)

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/8- 27NPT)


CC2374B-2374FS10SP

CC2374B-2374FS10SP

CC2374B-2374FS10SP
Click to enlarge image(s)

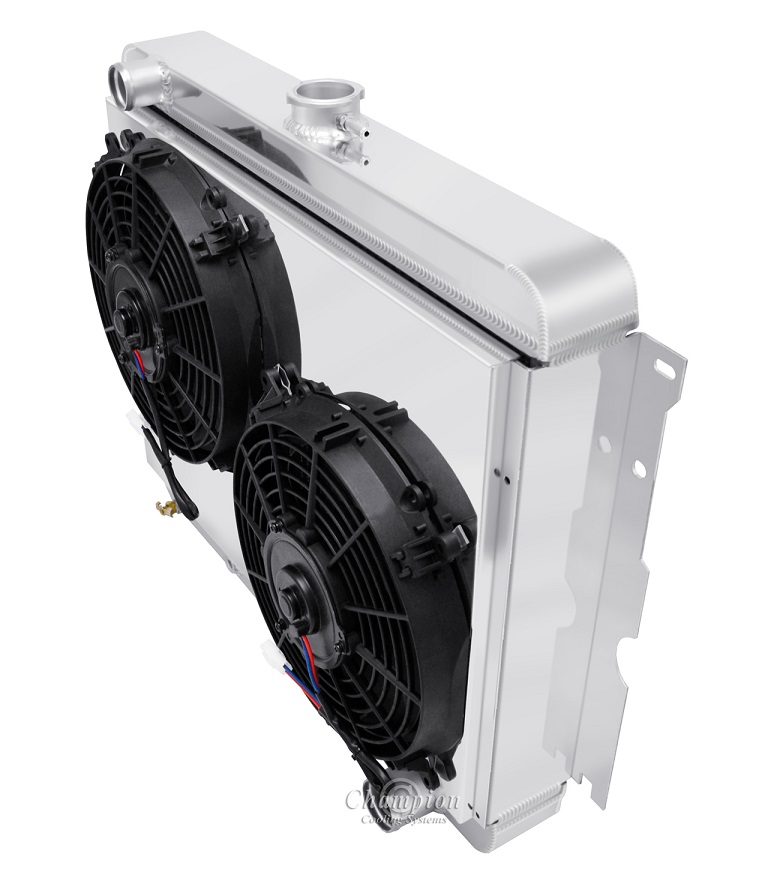

Champion All Aluminum Radiator
Includes Ledfoot Racing Aluminum Shroud
Plus 2-10" SPAL-0435 Fans "SAVE $30"
3-Row Core | Cools up to 550hp

Radiator Dimensions:
Total: 20" (21" with cap) x 25.75" (with brackets)
Core: 16" tall x 22.38" wide x 2.5" thick
Inlet: 1.5" driver side of center
Outlet: 1.75" passenger
Tanks: 2.75" thick
Tubes: 0.75" thick
Total Thickness: 5.5" (5" between fan motors)

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included (1/8- 27NPT)


Compatible With
Dodge Challenger 1970-1971 (318ci V8)
Dodeg Charger 1970-1972 (318ci V8)
Dodge Coronet 1970-1973 (318ci V8)
Plymouth Barracuda 1970-1973 (318ci V8)
Plymouth Belvedere 1970 (318ci V8)
Plymouth Roadrunner 1972-1973(318ci V8)
Plymouth Satellite 1971-1973 (318ci V8)
MC2374-2374FS10SP

MC2374-2374FS10SP

MC2374-2374FS10SP
Click to enlarge image(s)
Champion All Aluminum Radiator
Includes Ledfoot Racing Aluminum Shroud

Plus 2-10" SPAL-0435 Fans "SAVE $30"
4-Row Core: Polished Tanks | Cools 650hp

MC2374 Radiator Dimensions:
Total: 21.13" tall x 25.75" wide (including brackets)
Core: 15.88" tall x 22.38" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick
Total Thickness: 6.25" (5" between fan motors)

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/8- 27NPT)

note: this radiator is shorter than OEM to fit multiple Mopar cars


2374FS10

2374FS10

2374FS10
Click to enlarge image(s)

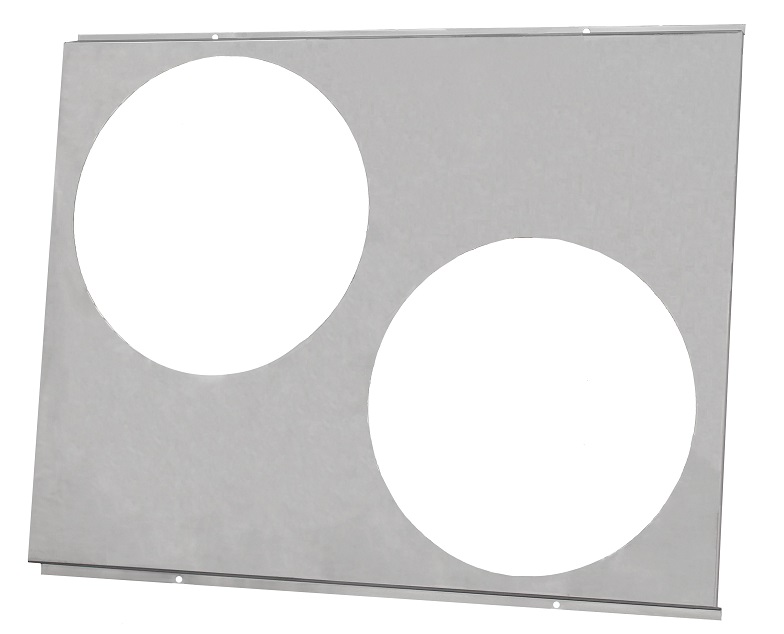

Ledfoot Racing Aluminum Fan Shroud for 2-10" Electric Fans

Dimensions:
16" tall x 22 5/8" wide

Attributes:
All-Aluminum Fan Shroud
Cut-outs to accept two 10" electric fans
Designed Exclusively for Two Electric Fans (sold separately)
Made in the U.S.A

Compatible with:
Champion CC2374, EC2374, and American Eagle AE2374.



This part applies to the following cars:
