Flaps (Rubber) For Shrouds

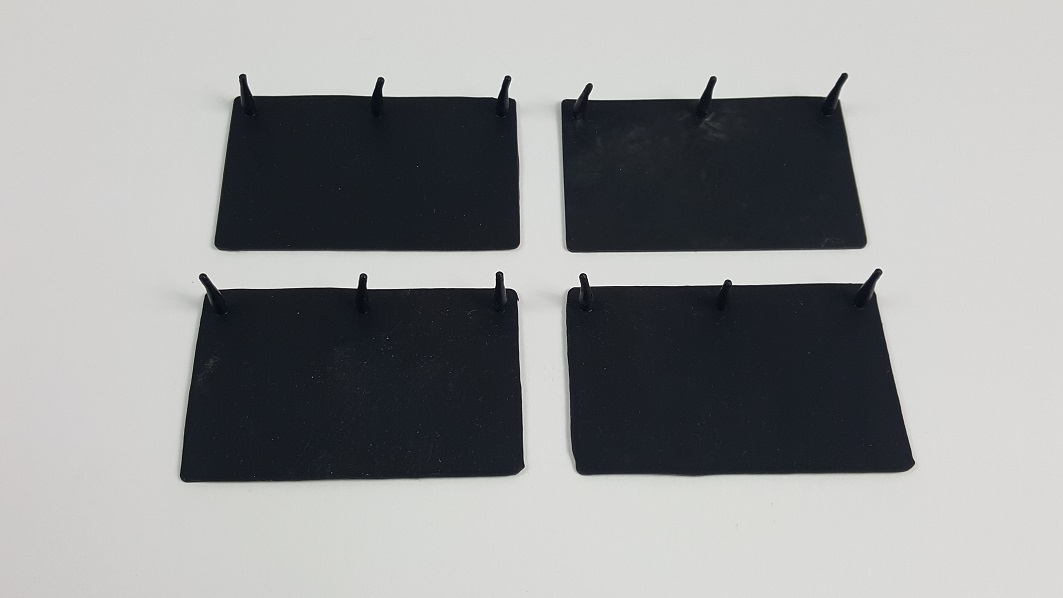

Rubber Shroud Flaps (4)

Rubber Shroud Flaps (4)

Rubber Shroud Flaps (4)
Click to enlarge image(s)

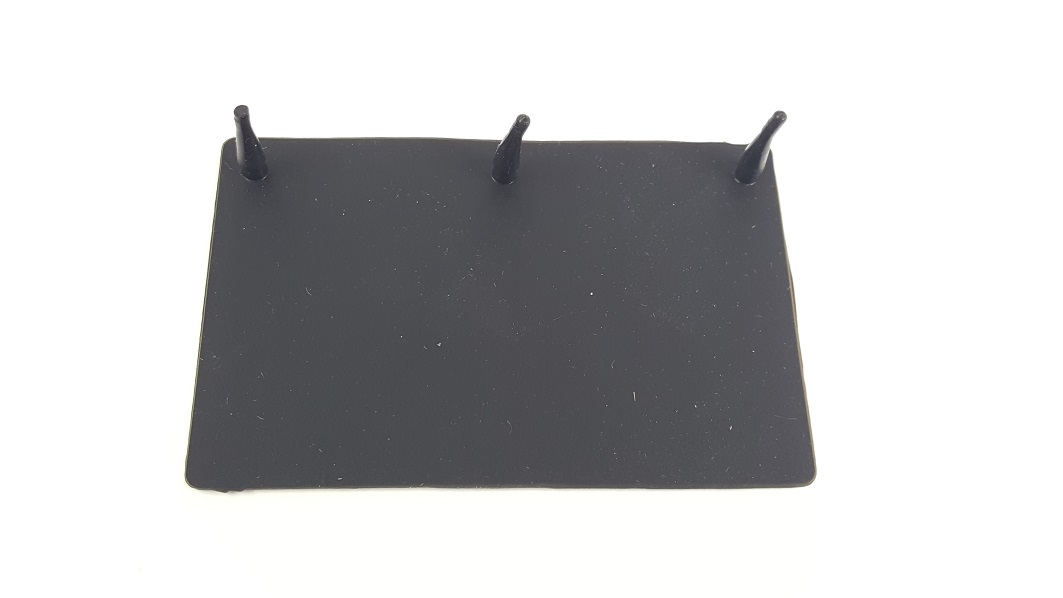

These fan shroud rubber flaps can help allow natural air flow through the shroud while driving.
They will close when at a stop for better suction while at an idle.

Installation: Our shrouds use a 2 3/4" x 1 1/2" window that has a 3/16" wide
veritcal divider to keep the flap from sucking inwards. 3/16" above the window

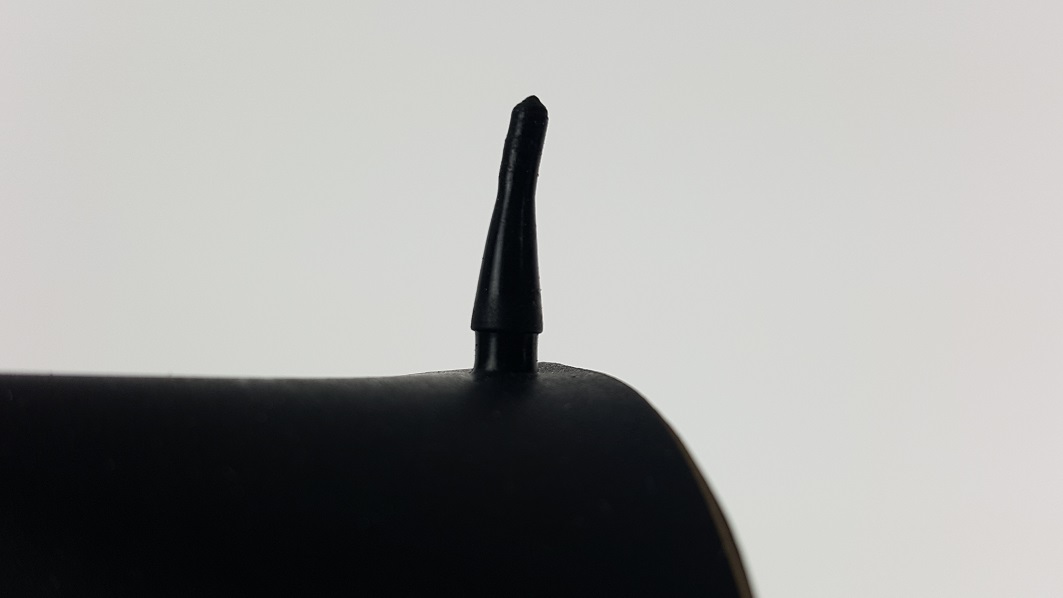

are three 1/8" mounting holes. The flap will show you the spread. You can come
up with any similar installation.

Includes:
  • (4) rubber flaps
  • Dimensions 2" x 3 1/16"

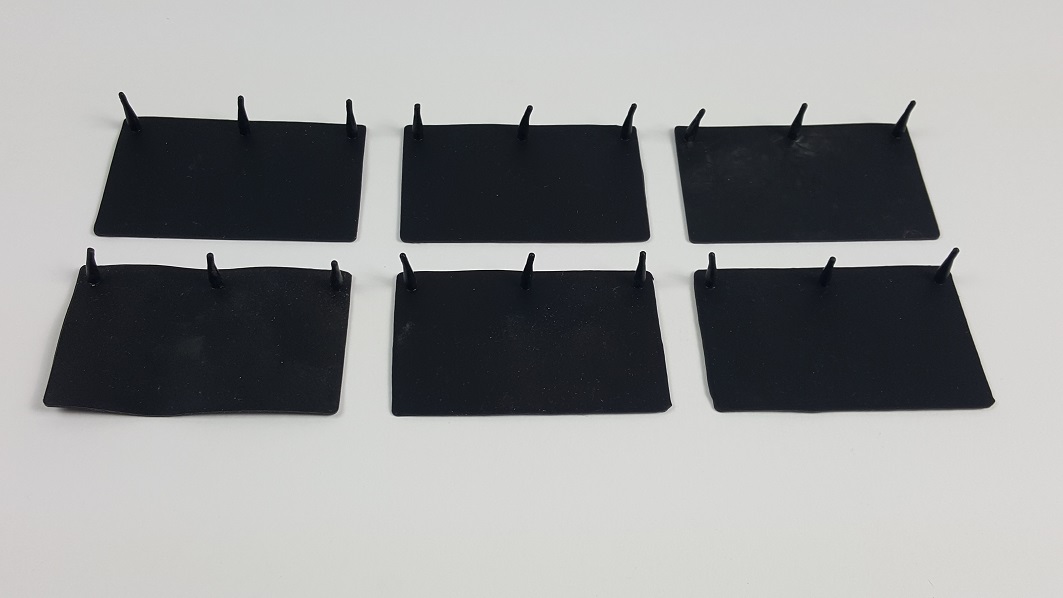

Rubber Shroud Flaps (6)

Rubber Shroud Flaps (6)

Rubber Shroud Flaps (6)
Click to enlarge image(s)
These flaps can help allow natural air flow through the shroud while driving.
They will close when at a stop for better suction while at an idle.

Installation: Our shrouds use a 2 3/4" x 1 1/2" window that has a 3/16" wide
veritcal divider to keep the flap from sucking inwards. 3/16" above the window
are three 1/8" mounting holes. The flap will show you the spread. You may come
up with any similar installation.

Includes:
  • (6) rubber flaps
  • Dimensions 2" x 3 1/16"
