(1996) Ford Mustang Radiator without fill neck

EC1775

EC1775

EC1775
Click to enlarge image(s)

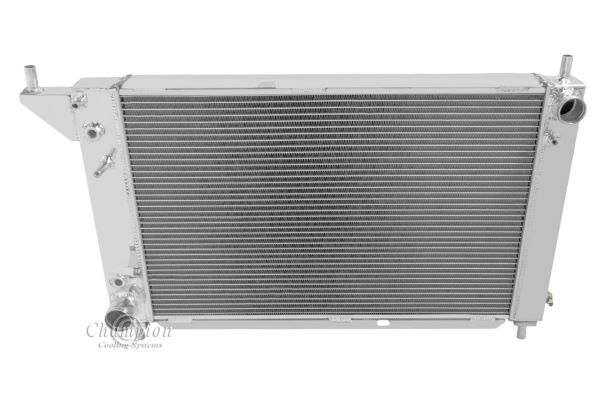

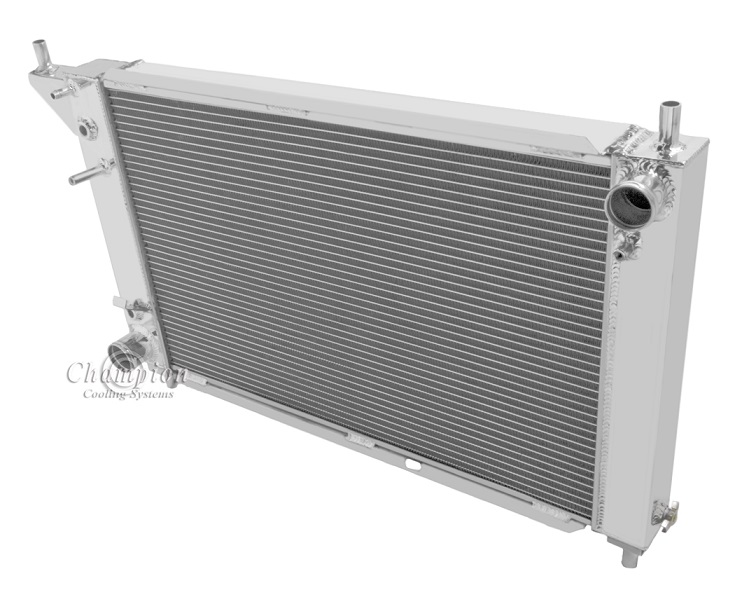

All Aluminum Champion Radiator
2-Row Core | Cools up to 500hp

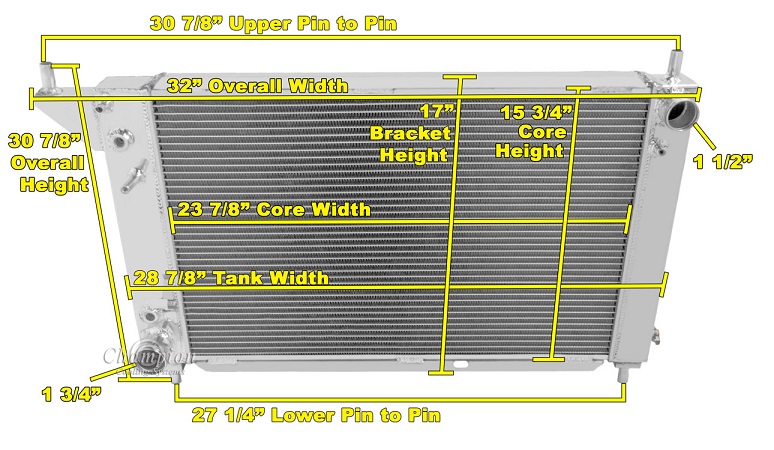

Radiator Dimensions:
Total: 19.5" tall (with cap) x 31.75" wide
Core: 15.75" tall x 24.5" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75” drivers side
Tanks: 2.75" thick
Tubes: 0.75" thick

Pin Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8-27npt)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)


Compatible With
Ford Mustang 1996
CC1775

CC1775

CC1775
Click to enlarge image(s)
All Aluminum Champion Radiator
3-Row Core | Cools up to 700hp

Radiator Dimensions:
Total: 19.5" tall (with cap) x 31.75" wide
Core: 15.75" tall x 24.5" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75” drivers side
Tanks: 2.75" thick
Tubes: 0.63" thick

Pin Mounted

16 lb. Radiator Cap included
Transmission Cooler included (1/8-27npt)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)


Compatible With
Ford Mustang 1996
MC1775

MC1775

MC1775
Click to enlarge image(s)
All Aluminum Champion Radiator
4-Row Core | Cools up to 800hp
Make sure you can fit this thicker version
before purchase


Radiator Dimensions:
Total: 19.5" tall (with cap) x 31.75" wide
Core: 15.75" tall x 24.5" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75” drivers side
Tanks: 3.13" thick
Tubes: 0.63" thick

Pin Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27npt)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)


Compatible With
Ford Mustang 1996
