AE284

AE284

AE284
Click to enlarge image(s)

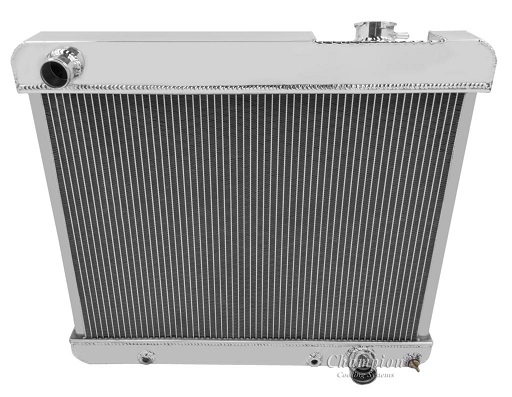

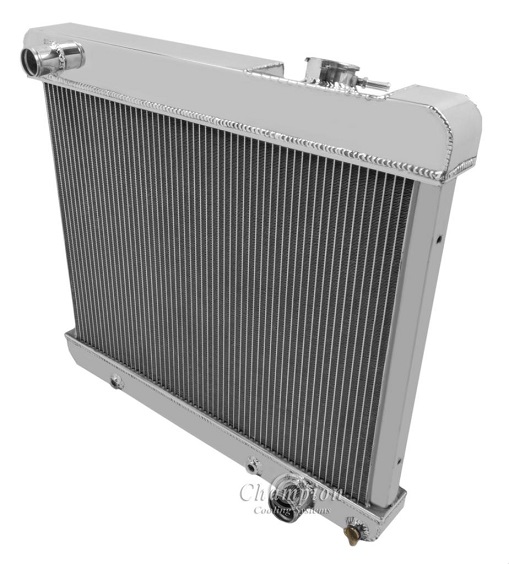

American Eagle All Aluminum Radiator
2-Row Core 1" Tubes | Cools up to 600hp

Radiator Dimensions:
Total: 22.5" tall (23.5" with cap) x 25.25" wide
Core: 17.38" tall x 22.75" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: (top) 2.75" thick; (bottom) 2.38" thick
Tubes: 1" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare )
Aluminum Shroud for One 16" Electric Fan available (sold separately)

When using electric fans:
Two 12" Electric fans or one 16" Electric fan recommended for this core size (sold separately)



Buy the Fan and Shroud Combo, and Save!
Compatible With
Pontiac Grand Prix 1962 (389ci V8)
Pontiac Grand Prix 1963-1964 (389ci, 421ci V8)
Pontiac Catalina 1961-1962 (389ci V8)
Pontiac Bonneville1961-1962 (389ci V8)
Pontiac Bonneville 1963-1966 (389ci, 421ci V8)
Chevrolet C/K Series 1963-1966 (283ci V8)
Oldsmobile "88"/Dynamic 1961-1962
Oldsmobile Cutlass 1965-1966
Oldsmobile F85 1964-1965
