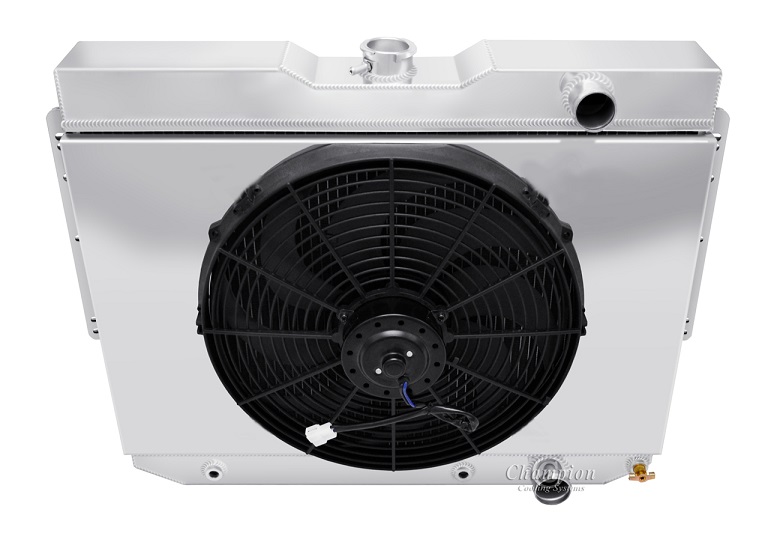

Champion All-Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" fan
3-Row Core | Cools up to 650hp

Impala's sometimes need a notched lower tank to miss the
optional power
steering box, please refer to CC281B-PS.
DOES NOT WORK WITH GMC 605 STEERING BOX

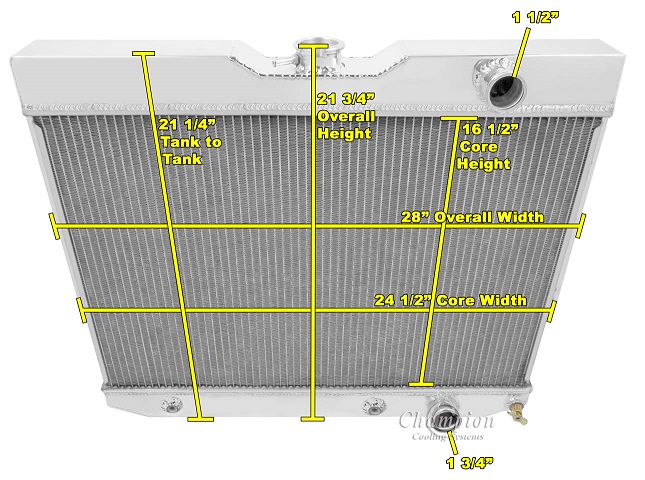

Radiator Dimensions:
Total: 21.75" tall x 28" wide (including brackets)
Core: 16.5" tall x 24.75" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick
Total Thickness: 6" to back of fan

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)




Compatible With
Chevy Bel Air 1963
Chevy Bel Air 1964
Chevy Bel Air 1965
Chevy Biscayne 1960-1965 (3.9L I6, 283ci V8, 409ci V8)
Chevy Caballero 1964-1965
Chevy Caprice 1959-1962
Chevy Chevelle 1964-1965
Chevy El Camino 1959-1960
Chevy Kingswood 1959-1962
Chevy Impala 1959
Chevy Impala 1960 (283ci V8)
Chevy Impala 1961 (3.9L I6, 283ci V8)
Chevy Impala 1962-1963 (3.9L I6, 283ci V8, 327ci V8)
