Econoline Van (60-65)

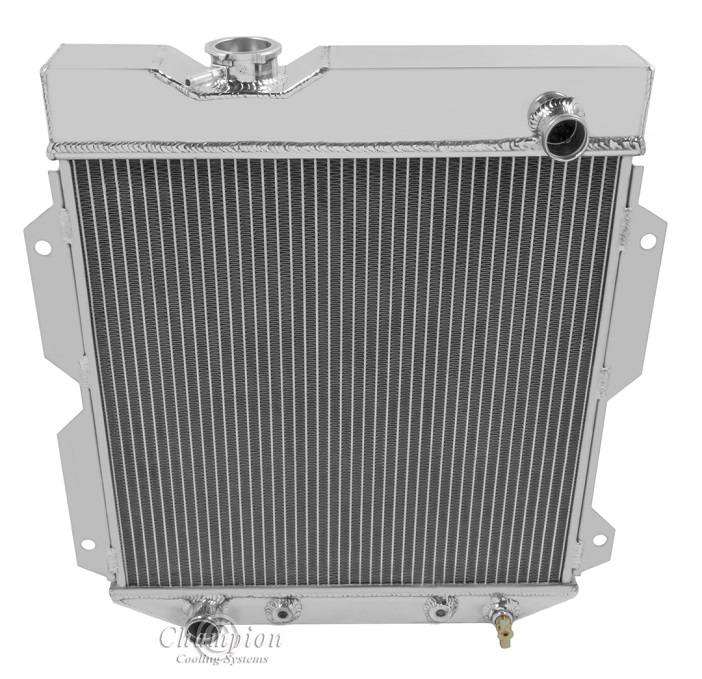

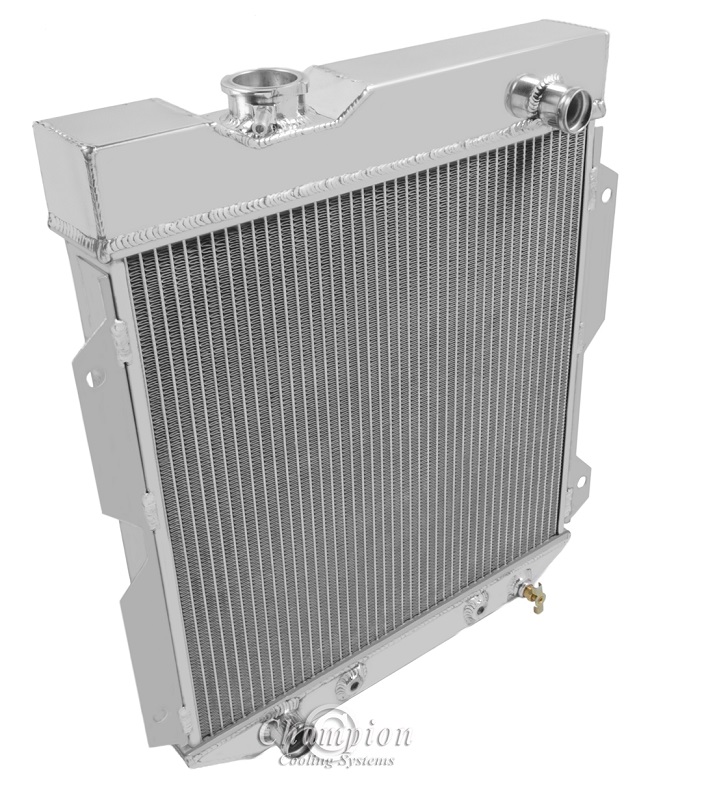

CC6065LD

CC6065LD

CC6065LD
Click to enlarge image(s)
Champion All Aluminum Radiator
3-Row Core | Cools up to 450hp
Set up is for the 6 cyl motors except for the 240 Big Block

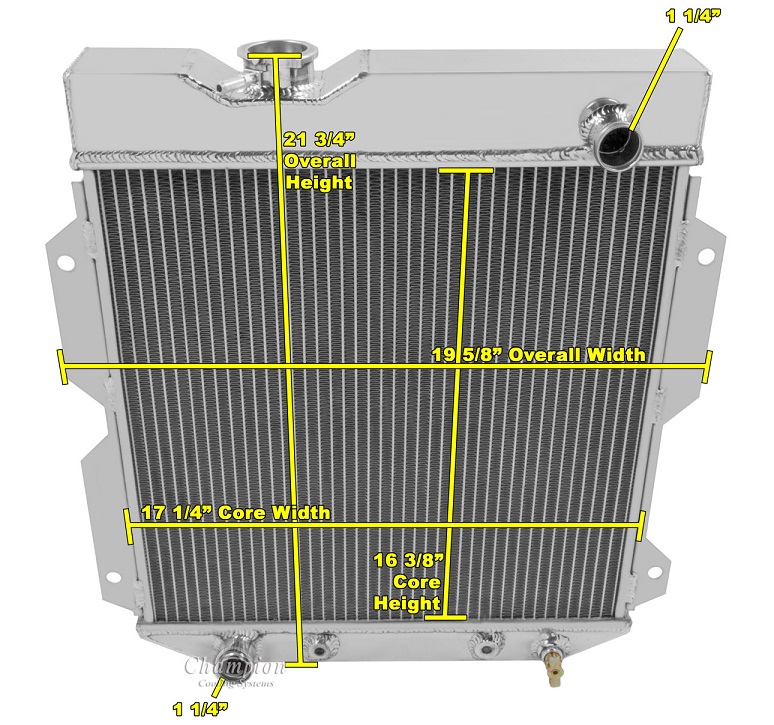

Radiator Dimensions:
Total: 21" tall (21.5" with cap) x 20" wide (with brackets)
Core: 16.5" tall x 17" wide x 2" thick
Inlet: 1.25" passenger side
Outlet: 1.25" drivers side
Tanks: 2.75" thick
Tubes: 0.63" thick

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included (1/8-27npt)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)

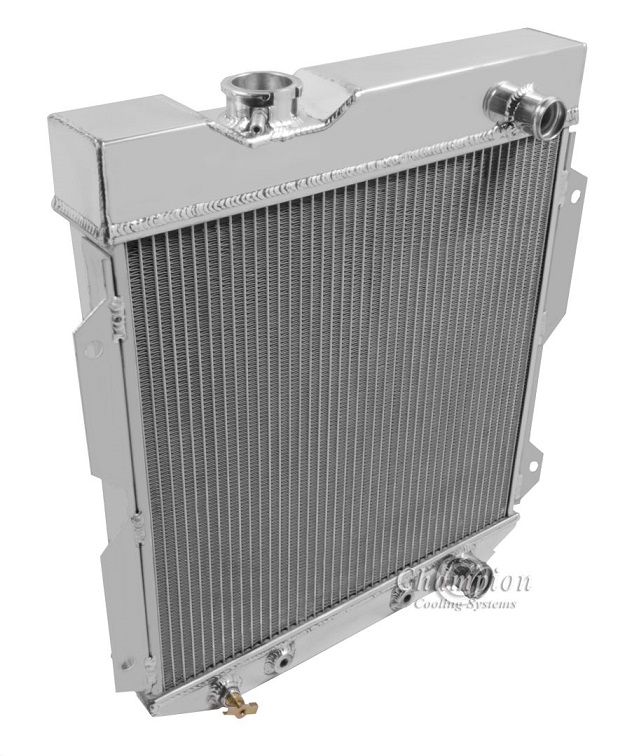

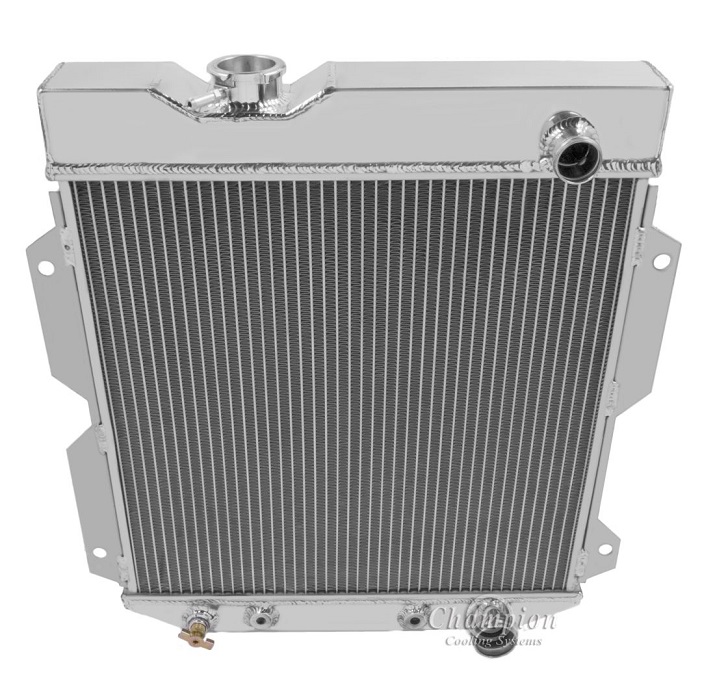

CC6065LP

CC6065LP

CC6065LP
Click to enlarge image(s)
Champion All Aluminum Radiator
3-Row Core | Cools up to 450hp
This set up is for the 240 Big Block 6 cly and 289 V8

Radiator Dimensions:
Total: 21" tall (21.5" with cap) x 20" wide (with brackets)
Core: 16.5" tall x 17" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included (1/8-27npt)

When using electric fans:
One 16" Electric fan recommended for this core size
