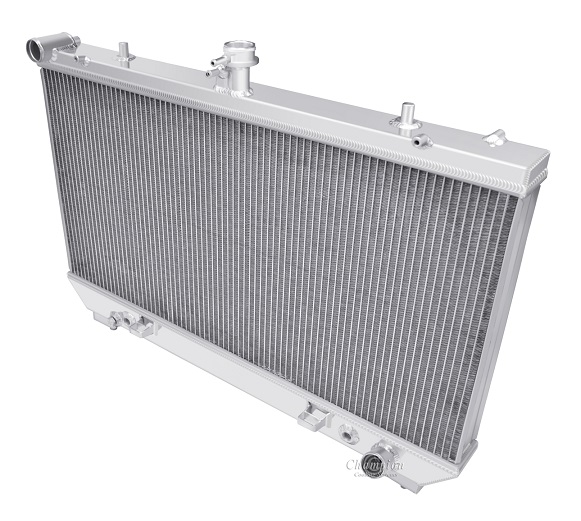

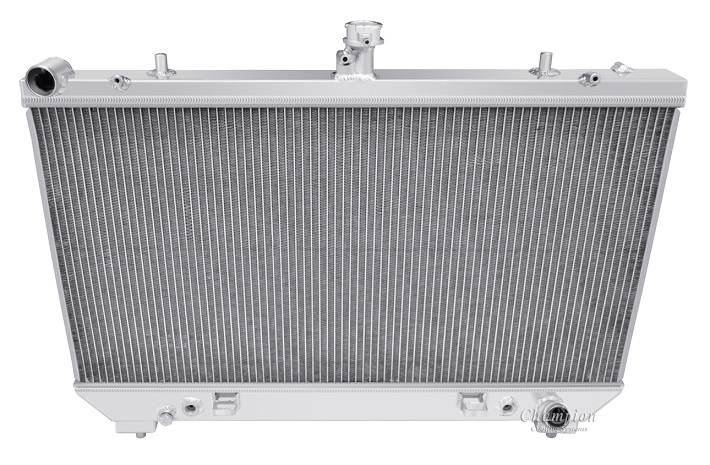

Champion All Aluminum Radiator
2-Row Core | Cools up to 500hp

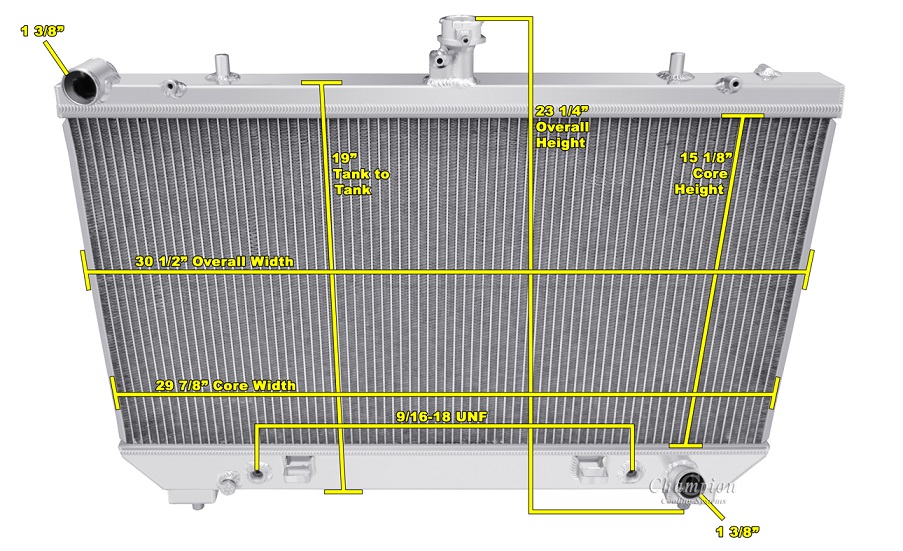

EC13142 Radiator Dimensions:
Total: 23.25" tall (with cap) x 30.5" wide
Core: 15.13" tall x 29.87" wide x 1.75" thick
Inlet: 1.38" driver side
Outlet: 1.38" passenger side
Tanks: 2.5” thick
Tubes: 0.75" thick

Pin Mounted

13. lb Radiator Cap Included
Transmission Cooler Included (9/16-18 UNF)

When using electric fans:
Two 14" Electric fans recommended for this core size (sold separately)

Custom shroud for electric fan(s) available upon request:



Specifications
2010-2011 Chevy Camaro (6.2L/376ci V8)
CC13142

CC13142

CC13142
Click to enlarge image(s)
Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp

CC13142 Radiator Dimensions:
Total: 23.25" tall (with cap) x 30.5" wide
Core: 15.13" tall x 29.87" wide x 2" thick
Inlet: 1.38" driver side
Outlet: 1.38" passenger side
Tanks: 2.5” thick
Tubes: 0.63" thick

Pin Mounted

13. lb Radiator Cap Included
Transmission Cooler Included (9/16-18 UNF)

When using electric fans:
Two 14" Electric fans recommended for this core size (sold separately)

Custom shroud for electric fan(s) available upon request:



Specifications
2010-2011 Chevy Camaro (6.2L/376ci V8)
MC13142

MC13142

MC13142
Click to enlarge image(s)
Champion All Aluminum Radiator
3-Row Core | Cools up to 800hp

MC13142 Radiator Dimensions:
Total: 23.25" tall (with cap) x 30.5" wide
Core: 15.13" tall x 29.87" wide x 2.75" thick
Inlet: 1.38" driver side
Outlet: 1.38" passenger side
Tanks: 2.5” thick
Tubes: 0.63" thick

Pin Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (9/16-18 UNF)

When using electric fans:
Two 14" Electric fans recommended for this core size (sold separately)


Custom shroud for electric fan(s) available upon request:



Specifications
2010-2011 Chevy Camaro (6.2L/376ci V8)
