Ford Truck (68-79) grill side brackets

Note: This is the 19 3/8" tall core radiator with grill side brackets. The 24 3/8" tall
vesion is the CC480 though no shroud is available. Call with any questions.

Scroll down for More options including Chevy Conversions

EC433-433FS12SPF

EC433-433FS12SPF

EC433-433FS12SPF
Click to enlarge image(s)
Champion All Aluminum Radiator
Plus Ledfoot Racing Custom Aluminum Shroud
with eight (8) rubber air flow flaps
and Two 12" SPAL-1522 Fans "SAVE $30"
2-Row Core | Cools 450hp
Note: Uses Grill Side Mounting Brackets
Engine Side Brackets available with part # CC444


EC433 Radiator Dimensions:
Total: 25" (26 3/8 Incl Cap) x 29.5" (including brackets)
Core: 19.25" tall x 26.38" wide x 1.75" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)


CC433B-433FS12SP

CC433B-433FS12SP

CC433B-433FS12SP
Click to enlarge image(s)
Champion All Aluminum Radiator
Includes Ledfoot Racing Aluminum Shroud
with eight (8) rubber air flow flaps
Plus 2-12" SPAL-1522 Fans "SAVE $30"
3-Row Core | Cools 700hp
Note: Uses Grill Side Mounting Brackets
Engine Side Brackets available with part # CC444


Radiator Dimensions:
Total: 25" (26.375" with cap) x 29.125" (with brackets)
Core: 19.25" tall x 26.375" wide x 2.5" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 2.5" thick
Tubes: 0.75" thick
Total Thickness: 6.75" (5.75" between fan motors)

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)


MC433-433FS12SPF

MC433-433FS12SPF

MC433-433FS12SPF
Click to enlarge image(s)
Champion All Aluminum Radiator
Includes Ledfoot Racing Aluminum Shroud
with eight (8) rubber air flow flaps
Plus 2-12" SPAL-1522 Fans "SAVE $30"
4-Row Core: Polished Tanks | Cools 800hp
Note: Uses Grill Side Mounting Brackets
Engine Side Brackets available with part # CC444


Radiator Dimensions:
Total: 26.5" tall (incl cap) x 29.5" wide (including brackets)
Core: 19.25" tall x 26.375" wide x 2.75 thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 3.25"
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)

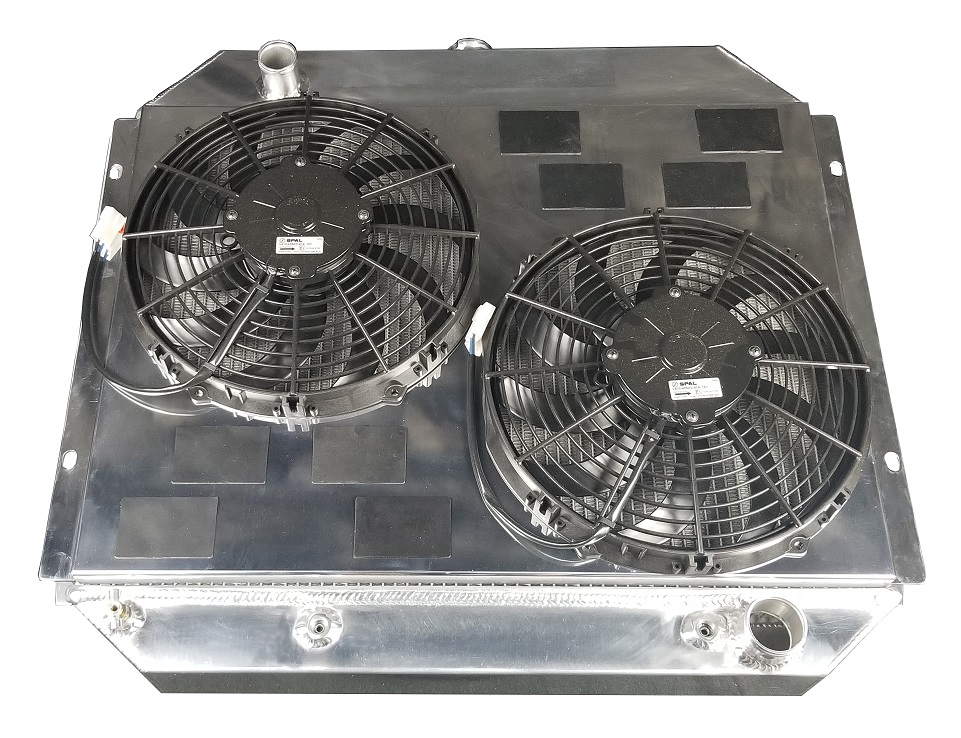

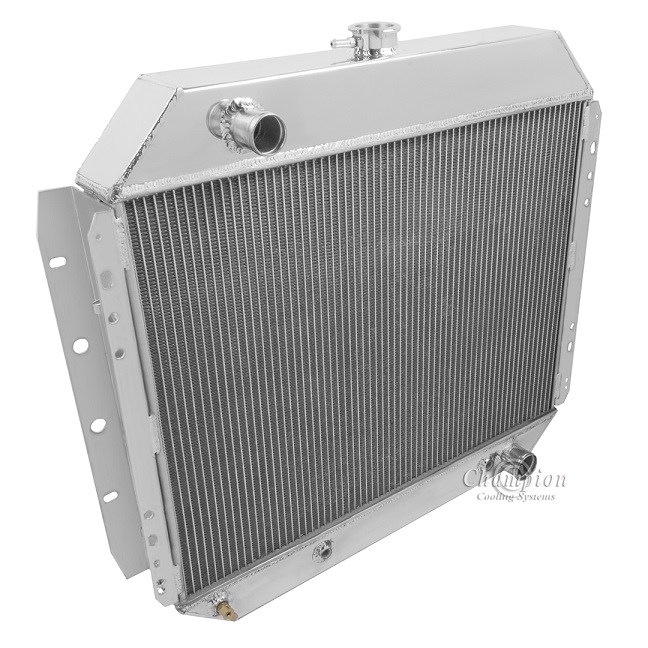

CC833B-833FS12SPF

CC833B-833FS12SPF

CC833B-833FS12SPF
Click to enlarge image(s)
Champion All Aluminum Radiator
Includes Ledfoot Racing Aluminum Shroud
Plus 2-12" SPAL-1522 Fans "SAVE $50"

For Chevy V8 Conversions
3-Row Core | Cools 700hp

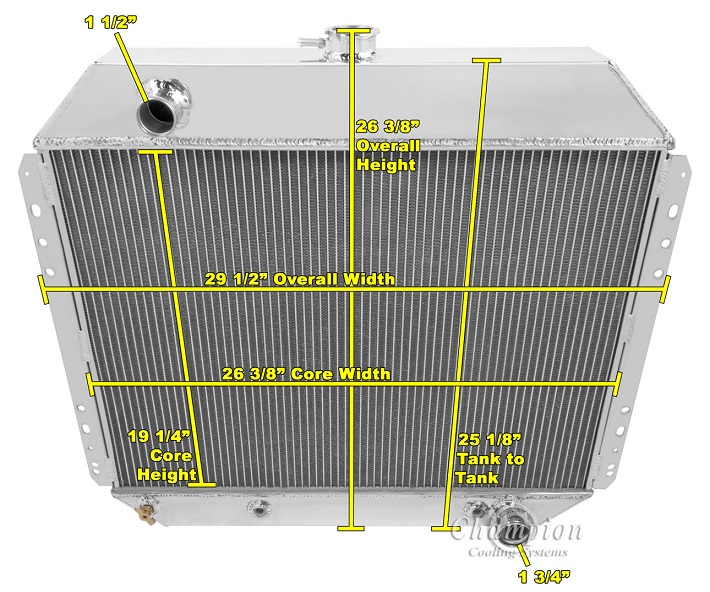

Radiator Dimensions:
Total: 25" tall (26.38" with cap) x 29" wide (with brackets)
Core: 18.75" tall x 26" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes0.75" thick

Bracket Mounted

Transmission Cooler Included (1/2" 20 STRAIGHT THREAD)
13 lb. Radiator Cap included


433FS12F

433FS12F

433FS12F
Click to enlarge image(s)

Ledfoot Racing Aluminum Fan Shroud for Two 12" Electric Fans
"NEW DESIGN" Now features 8 cut outs with
rubber flaps for better flow going down the road


Dimensions:
19" tall x 28.25" wide

Attributes:
All-Aluminum Fan Shroud
Cut-outs to accept two 12" electric fans (SPAL Recommended)
2 sets of 4 cut outs with rubber flaps
Designed Exclusively for Two Electric Fans (sold separately)
Made in the U.S.A

Compatible with:
Champion EC433, CC433B CC318B, CC444B, MC433, and American Eagle AE433.
