Chevy Blazer / Jimmy  Radiator: Check your core height (17" or 19")
Scroll down for additional options
AE716

AE716

AE716
Click to enlarge image(s)

American Eagle All Aluminum Radiator
2-Row Core | Cools up to 850hp | 1" Thick Tubes

Radiator Dimensions:
Total: 20.5" tall (21.13" with cap) x 33.13" wide
Core: 19" tall x 28.25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 1" thick

16 lb. Radiator Cap Included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD, INVERTED FLARE)

Saddle Mounted

When using electric fans:
One 16" or two 14" Electric fans recommended for this core size (sold separately)



This part applies to the following cars:
Compatible With
Chevrolet Blazer/Jimmy 1973-1978 (400ci V8, 454ci V8)
Chevrolet Blazer/Jimmy 1979 (305ci V8, 350ci V8, 400ci V8, 454ci V8)
Chevrolet Blazer/Jimmy 1980 (305ci V8, 350ci V8, 454ci V8)
Chevrolet Blazer/Jimmy 1981-1991 (250ci V8, 305ci V8, 350ci V8)
Chevrolet C/K Series 1973-1980 (305ci V8, 350ci V8, 400ci V8, 454ci V8)
Chevrolet C/K Series 1981-1987 (305ci V8, 350ci V8, 454ci V8)
Chevrolet Suburban 1973-1975 (454ci V8)
Chevrolet Suburban 1976-1979 305ci V8, 350ci V8, 400ci V8, 454ci V8)
Chevrolet Suburban 1980-1987 (305ci V8, 350ci V8, 454ci V8)
Chevrolet Suburban 1988-1991 (350ci V8)
AE716-716FS14

AE716-716FS14

AE716-716FS14
Click to enlarge image(s)

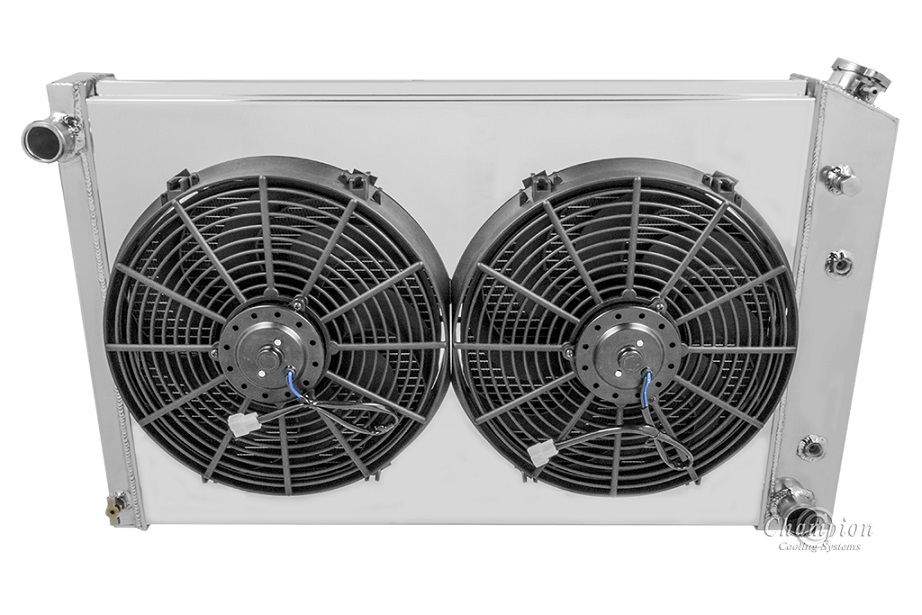

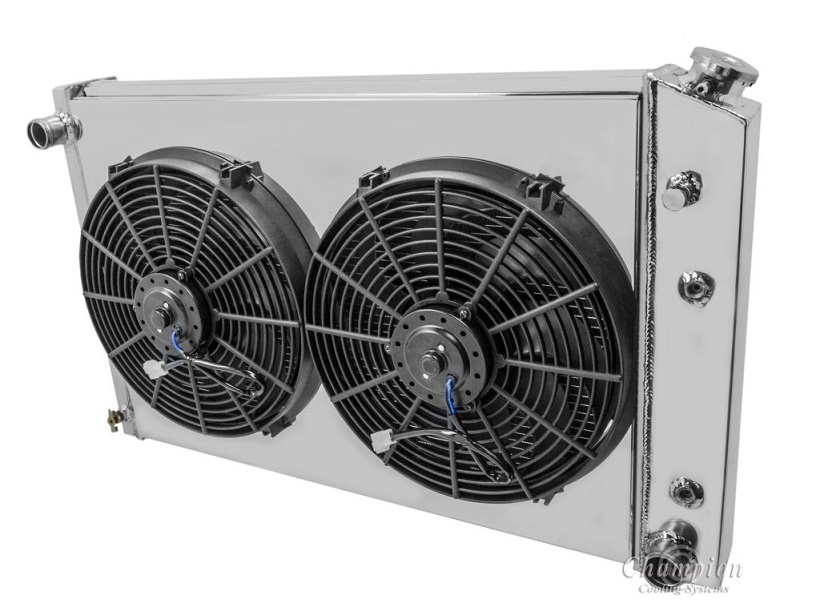

American Eagle All Aluminum Radiator
PLUS Ledfoot Racing Aluminum Shroud & Two 14" Fans
Verify clearance for electric fan
Total thickness: 6" to fan motor
2-Row Core | Cools up to 850hp | 1" Thick Tubes

Radiator Dimensions:
Total:
20.5" tall (21.13" with cap) x 33" wide
Inlet: 1.5" driver side
Outlet: 1.5" pass side
Core: 19" tall x 28.25" wide x 2.25" thick
Tanks: 2.75" thick
Tubes:  1" thick

Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD, INVERTED FLARE)
Polished Champion 16 lb Radiator Cap included (Pictured Above)

Saddle Mounted

Entire set up is about 6.5" thick to back of fans
4 3/4" in the center around the edge of the fans.



Compatible With
Chevy Blazer/Jimmy 1973-1978 (400ci V8, 454ci V8)
Chevy Blazer/Jimmy 1979 (305ci V8, 350ci V8, 400ci V8, 454ci V8)
Chevy Blazer/Jimmy 1980 (305ci V8, 350ci V8, 454ci V8)
Chevy Blazer/Jimmy 1981-1991 (250ci V8, 305ci V8, 350ci V8)
Chevy C/K Series 1973-1980 (305ci V8, 350ci V8, 400ci V8, 454ci V8)
Chevy C/K Series 1981-1987 (305ci V8, 350ci V8, 454ci V8)
Chevy Suburban 1973-1975 (454ci V8)
Chevy Suburban 1976-1979 305ci V8, 350ci V8, 400ci V8, 454ci V8)
Chevy Suburban 1980-1987 (305ci V8, 350ci V8, 454ci V8)
Chevy Suburban 1988-1991 (350ci V8)
