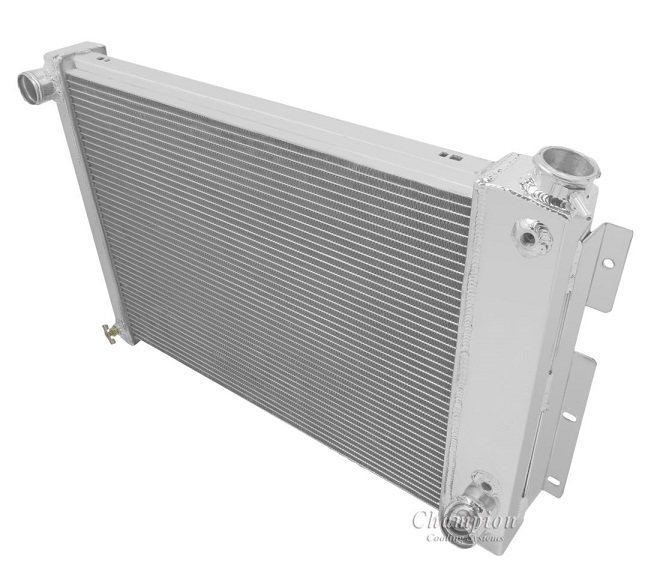

American Eagle All Aluminum Radiator
2-Row Core, 1" tubes | Cools up to 600hp

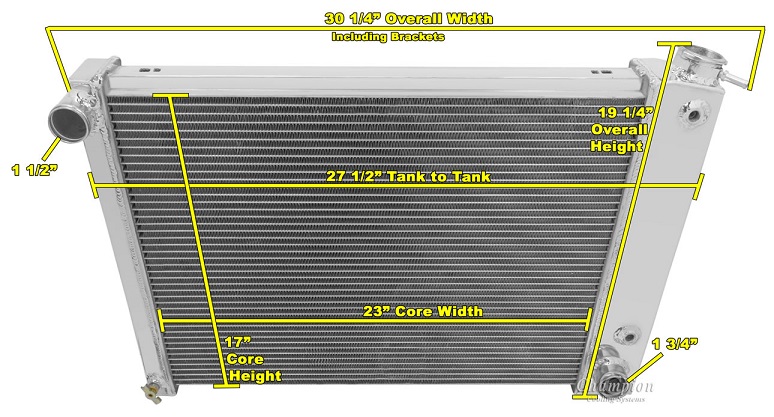

Radiator Dimensions:
Total: 18.5" tall (19.5" with cap) x 30.25" wide (including brackets)
Core: 16.75" tall x 23" wide x 2.2" thick
Inlet: 1.5" drivers side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 1" thick

Bracket Mounted

16 lb. Radiator Cap included
Transmission Cooler included (1/2" 20 STRAIGHT THREAD G1/4)
Aluminum Shroud for One 16" or 2-12" Electric fans is also available (sold separatly)

When using electric fans (sold separately):
One 16" or two 12" Electric fans recommended for this core size

Compatible With
Chevrolet Camaro 1967-1969 "Big Block" (5.7L V8)
Pontiac Firebird/Trans Am 1967-1969 (5.2L/5.7L V8)
