Nissan 300ZX (84-89)

EC762

EC762

EC762
Click to enlarge image(s)

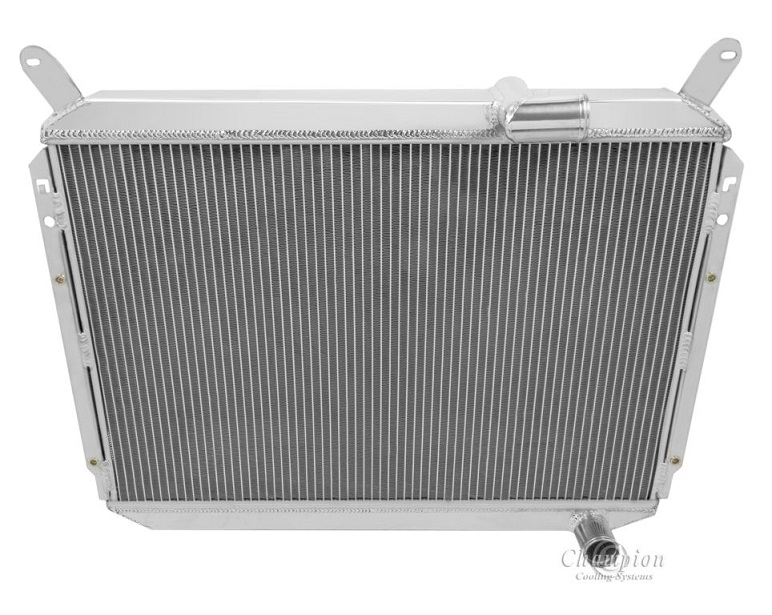

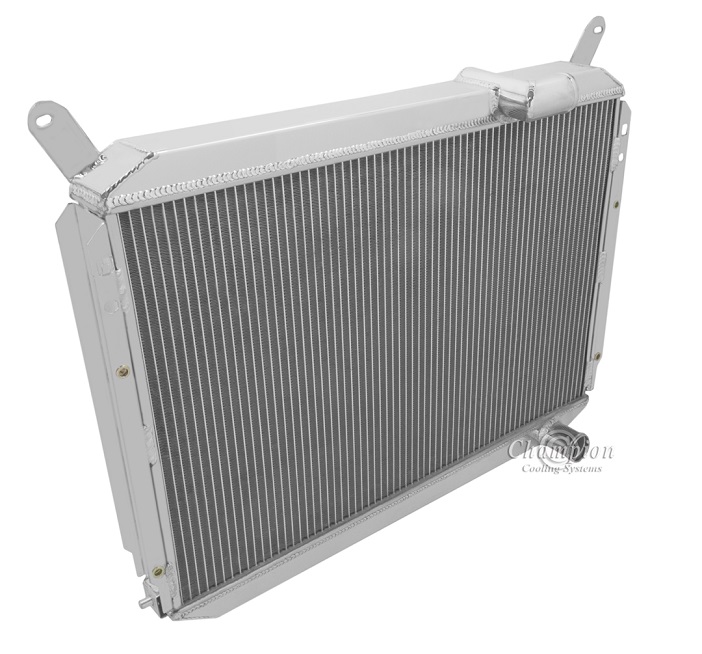

All Aluminum Champion Radiator
2-Row Core | Cools up to 400hp

Radiator Dimensions:
Total: 22.38" (with cap) x 27.63" (including brackets)
Core: 16.13" tall x 25.38" wide x 1.75" thick
Inlet: 1.5" passenger side angled to the right
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.75"

Bracket Mounted
Automatic Trans Cooler included (Metric 12-1.25)



When using electric fans:
One 16" Fan or two 12" Electric fans recommended for this core size (sold separately)



Compatible With
Nissan 300ZX 1984-1989 (3.0 V6 TT/NA)
CC762

CC762

CC762
Click to enlarge image(s)

All Aluminum Champion Radiator
3-Row Core | Cools up to 650hp

Radiator Dimensions:
Total: 22.38" (with cap) x 27.63" (including brackets)
Core: 16.13" tall x 25.38" wide x 2" thick
Inlet: 1.5" passenger side angled to the right
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63"

Bracket Mounted

Automatic Trans Cooler included (Metric 12-1.25)


When using electric fans:
One 16" Fan or two 12" Electric fans recommended for this core size (sold separately)



Compatible With
Nissan 300ZX 1984-1989 (3.0 V6 TT/NA)
