Ford Mustang Radiator and Shroud (64-66)

AE251

AE251

AE251
Click to enlarge image(s)

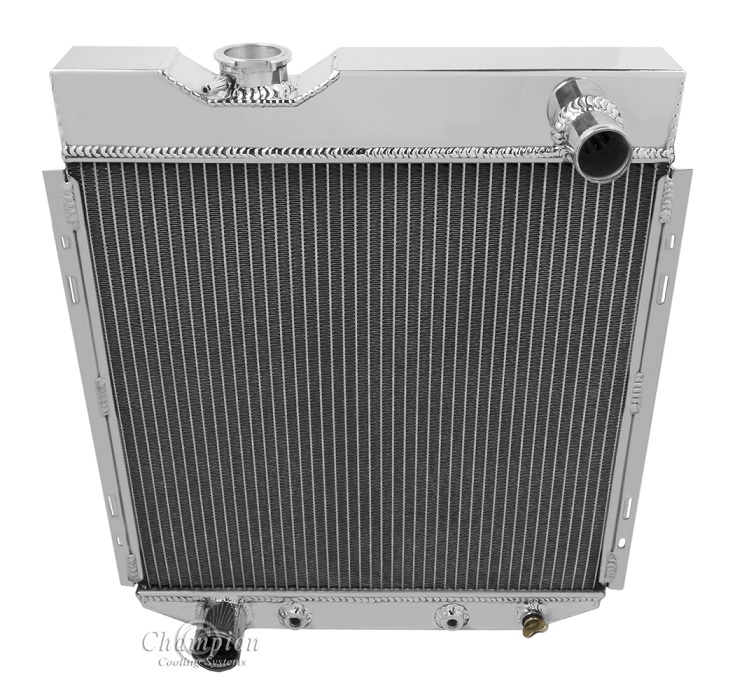

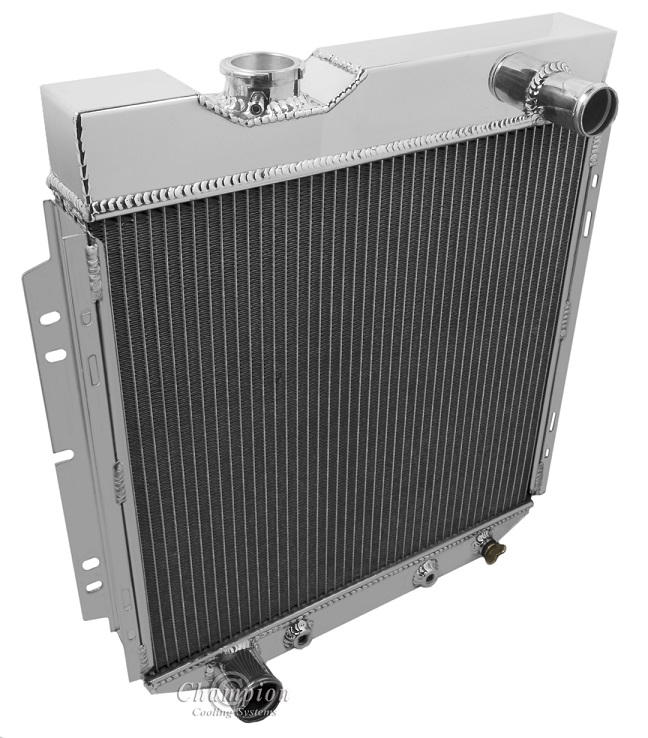

American Eagle All Aluminum Radiator
2-Row Core | Cool up to 450hp

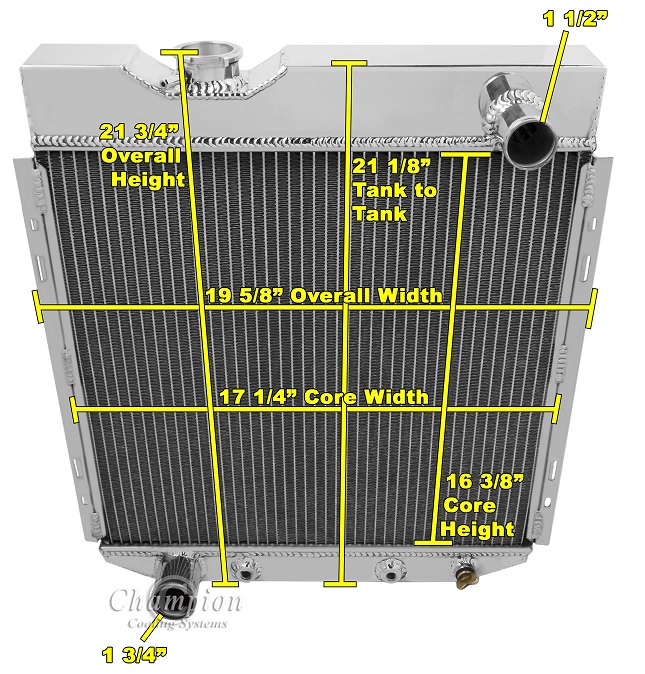

Radiator Dimensions:
Total: 21" tall (21.5" with cap) x 19.63" wide (with brackets)
Core: 16.5" tall x 17" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.75" thick
Tubes: 1" thick

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/8-27NPT)
Aluminum Fan Shroud for One 16" Electric fan is also available (sold separately)

Recommended Cooling Fans:
16" Electric Cooling Fan (sold separately)

Note: When buying our 16" Electric Fan make sure there's room for the 3.5" Fan thickness



Compatible With
Ford Falcon 1960-1965 (302ci, 351ci, 390ci, 428ci, 429ci V8)
Mercury Comet 1961-1965
Ford Mustang 1965-1966
Ford Ranchero 1960-1965
Ford Econoline 1961-1965
AE251-251FS16SP

AE251-251FS16SP

AE251-251FS16SP
Click to enlarge image(s)

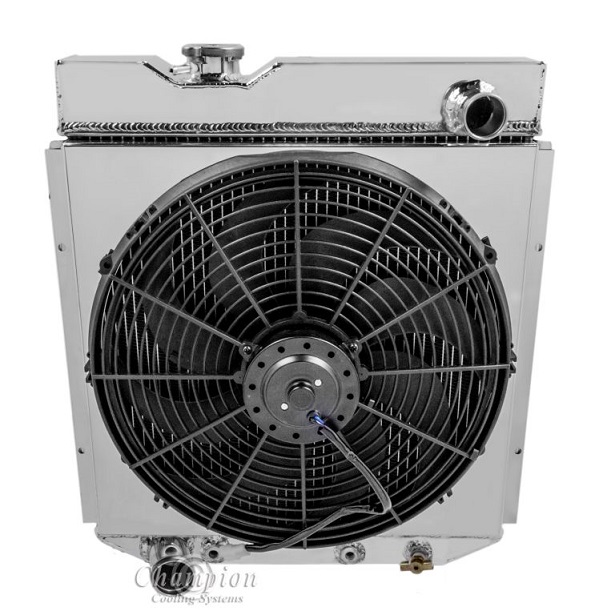

American Eagle Aluminum Radiator Plus
Shroud & SPAL Medium Profile 16" Fan

The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below

2-Row Core 1" tubes | Cool up to 500hp

Radiator Dimensions:
Total: 21" tall (21.5" with cap) x 19.63" wide (with brackets)
Core: 16.5" tall x 17" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.75" thick
Tubes: 1" thick
Total Thickness: 5.25" to back of fan

Bracket Mounted

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler Included (1/8-27NPT)



Compatible With
Ford Falcon 1960-1965 (302ci, 351ci, 390ci, 428ci, 429ci V8)
Mercury Comet 1961-1965
Ford Mustang 1965-1966
Ford Ranchero 1960-1965
Ford Econoline 1961-1965
