Firebird / Trans Am (82-92)
This radiator does not fit the 6 cylinder.

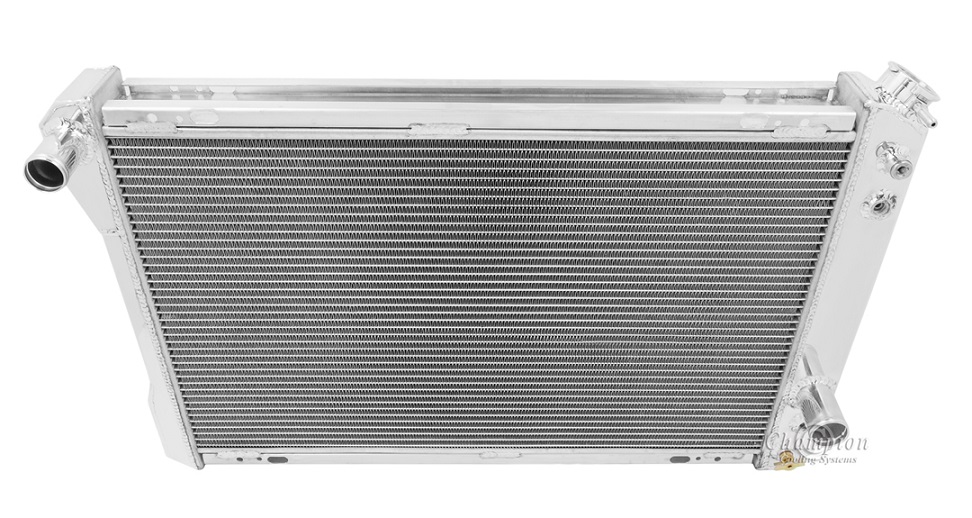

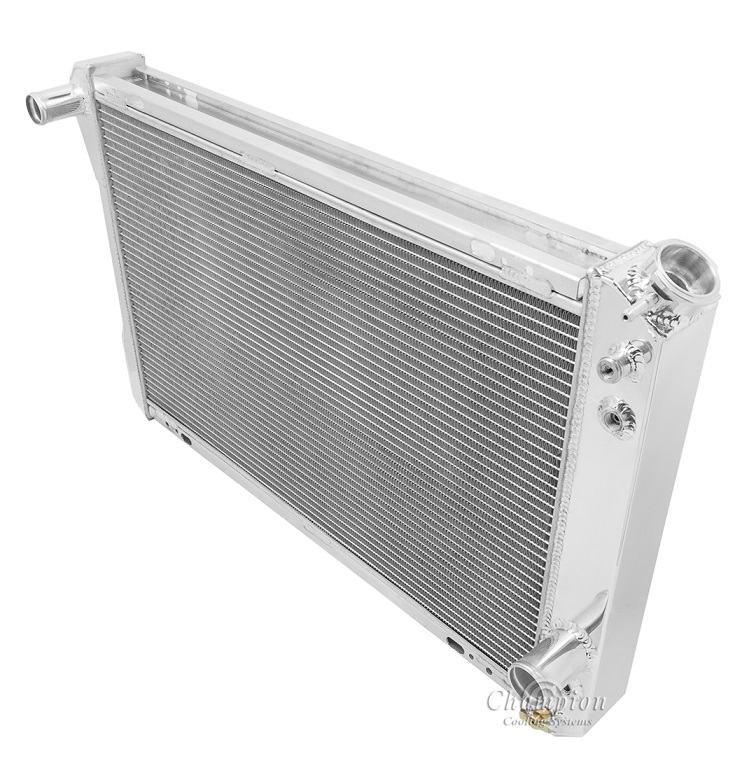

EC951
 |
  |
| Click to enlarge image(s) |
2-Row Core | Cools up to 450hp
EC951 Radiator Dimensions:
Total: 18.88" wide (20 " with cap) x 32" wide
Core: 17.25" tall x 26.25" wide x 1.75 thick
Inlet: 1.5" driver side
Outlet: 1.63" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick
13lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD, INVERTED FLARE)
Aluminum Shroud for a 16" fan available (sold separately)
When using electric fans:
One 16" or Two 12" Electric fans recommended for this core size (sold separately)
| Compatible With | |
| Pontiac Firebird/Trans Am 1982-1984 (2.5L Straight 4-cylinder and 305ci V8) | |
| Pontiac Firebird/Trans Am 1985-1986 (305ci V8) | |
| Pontiac Firebird/Trans Am 1987-1988 (305ci V8 and 350ci V8) | |
| Pontiac Firebird/Trans Am 1989-1992 (3.8L V6, 305ci V8, and 350ci V8) | |
| Chevrolet Camaro 1982-1984 (2.5L Straight 4-cylinder and 305ci V8) | |
| Chevrolet Camaro 1985-1986 (305ci V8) | |
| Chevrolet Camaro 1987-1989 (305ci V8 and 350ci V8) | |
| Chevrolet Camaro 1990-1992 (3.8L V6, 305ci V8, and 350ci V8) |
CC951
|
|
|
|
| Click to enlarge image(s) |
Champion All Aluminum Radiator
3-Row Core | Cools up to 750hp
Radiator Dimensions:
Total: 18.88" tall (20.13" with cap) x 31” wide
Core: 17” tall x 26.25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.56" passenger side
Tanks: 2.5” thick
Tubes: 0.63" thick
Transmission Cooler Included (1/2" -20 STRAIGHT THREAD, INVERTED FLARE)
Aluminum Shroud is also available (sold separately)
When using electric fans:
One 16" or Two 12" Electric fans recommended for this core size(sold separately)
Click Here For Manual Transmissions
| Compatible With | |
| Pontiac Firebird/Trans Am 1982-1984 (2.5L Straight 4-cylinder, 305ci V8) | |
| Pontiac Firebird/Trans Am 1985-1986 (305ci V8) | |
| Pontiac Firebird/Trans Am 1987-1988 (305ci V8, 350ci V8) | |
| Pontiac Firebird/Trans Am 1989-1992 (3.8L V6, 305ci V8, 350ci V8) | |
| Chevrolet Camaro 1982-1984 (2.5L Straight 4-cylinder, 305ci V8) | |
| Chevrolet Camaro 1985-1986 (305ci V8) | |
| Chevrolet camaro 1987-1989 (305ci V8, 350ci V8) | |
| Chevrolet Camaro 1990-1992 (3.1L V6, 305ci V8, 350ci V8) |
MC951
|
|
|
|
| Click to enlarge image(s) |
Champion All Aluminum Radiator
4-Row Core (2.8" thick) Polished Tanks | Cools up to 850hp
MC951 Radiator Dimensions:
Total: 20" tall x 32" wide
Core: 17.25" tall x 26.25" wide x 2.75" thick
Inlet: 1.38" driver side
Outlet: 1.63" pass side
Tanks: 3.13" thick
Tubes: 0.63" thick
Saddle Mounted
13 lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud for a 16" fan is also Available (sold separately)
When using electric fans:
One 16" or Two 12" Electric fans recommended for this core size (sold separately)
| Compatible With | |
| Pontiac Firebird/Trans Am 1982-1992 (2.5L 4-cylinder, 3.8L V6, 305ci V8, and 350ci V8) | |
| Chevrolet Camaro 1982-1992 (2.5L 4-cylinder, 3.8L V6, 305ci V8, and 350ci V8) |
