(1964) Plymouth Barracuda Champion Radiator
Top Radiator is for the Slant 6, the bottom is for the 273 V8
Please check your outlet positions.

CC63DT

CC63DT

CC63DT
Click to enlarge image(s)
All Aluminum Champion Radiator
3-Row Core | Cools up to 450hp

To solve the lower outlet issue
please get a Gates Hose #20949


CC63DT Radiator Dimensions:
Total: 22.25" tall x 22.5" wide (with brackets)
Core: 16.75" tall x 19" wide x 2" thick
Inlet: 1.5" passenger side off-center
Outlet: 1.5" passenger
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

16 lb. Radiator cap included
Transmission Cooler included (1/8" 27npt)


Compatible with:
63-64 Dart Slant 6
63-64 Valiant Slant 6

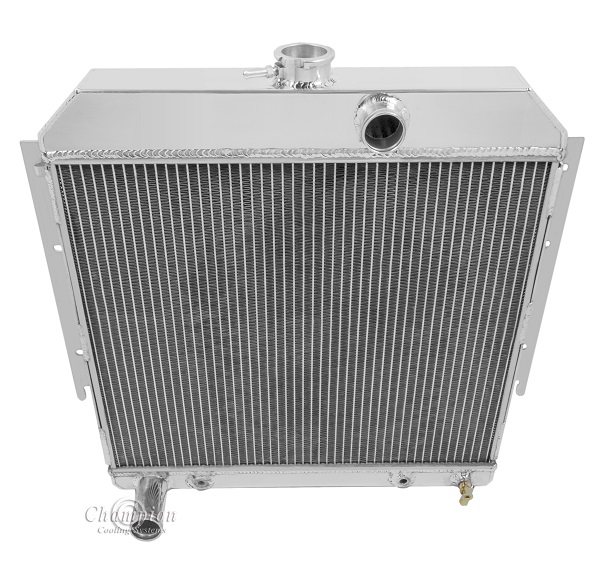

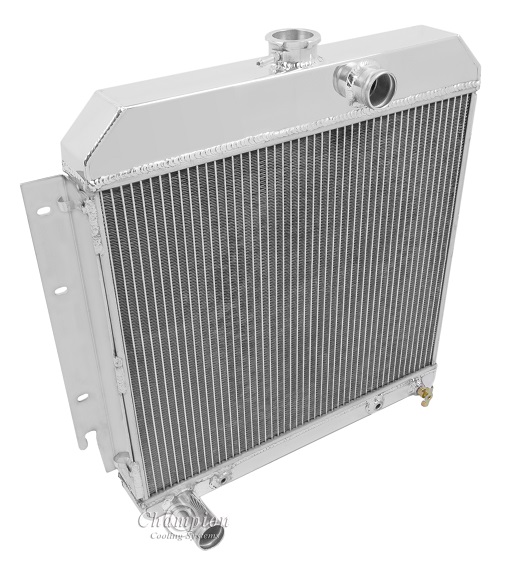

CC64DT

CC64DT

CC64DT
Click to enlarge image(s)
All Aluminum Champion Radiator
3-Row Core | Cools up to 500hp

CC64DT Radiator Dimensions:
Total: 21.63" tall (with cap) x 22.38" wide (with brackets)
Core: 18.25" tall x 18.36" wide x 2" thick
Inlet: 1.5" passenger side off-center
Outlet: 1.5" driver
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

16 lb. Radiator cap included
Transmission Cooler included (1/8" 27npt)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)


Compatible With
Dodge Dart 1964
Plymouth Barracuda 1964
Plymouth Valiant 1964
