ChampionRadiators.com is owned and operated by Ledfoot Racing, an authorized distributor for Champion Cooling Systems and American Eagle Radiators.
CC7180-7180FS10SP

CC7180-7180FS10SP

CC7180-7180FS10SP
Click to enlarge image(s)

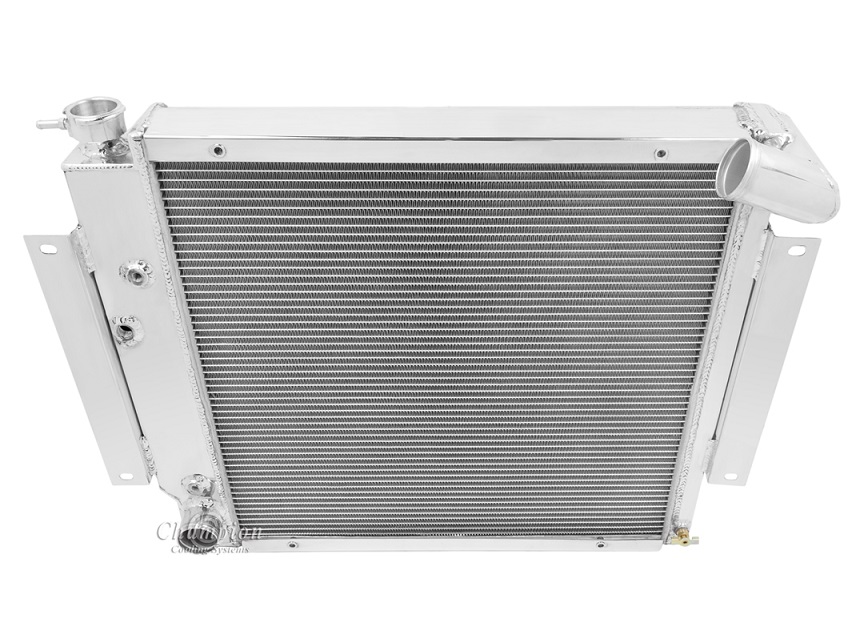

Champion All Aluminum Radiator

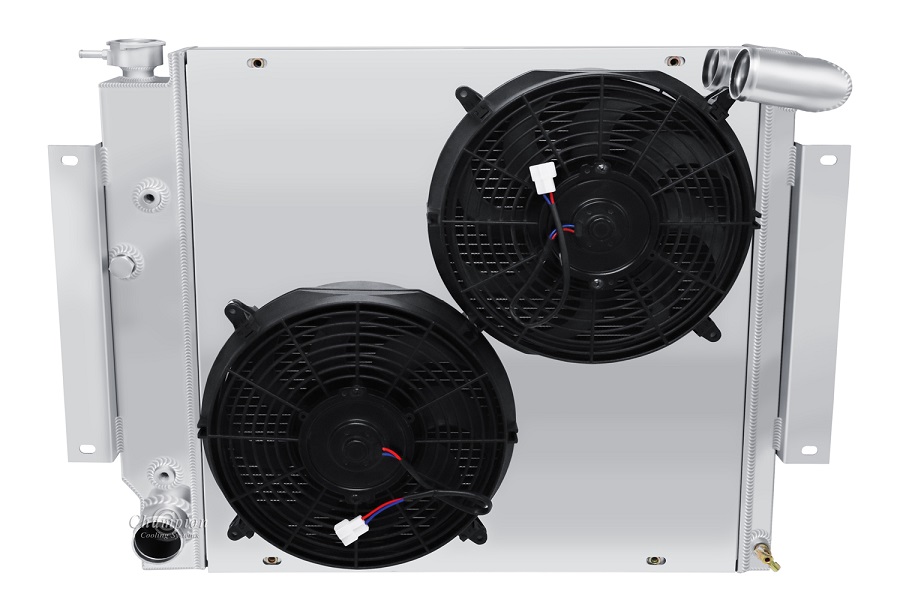

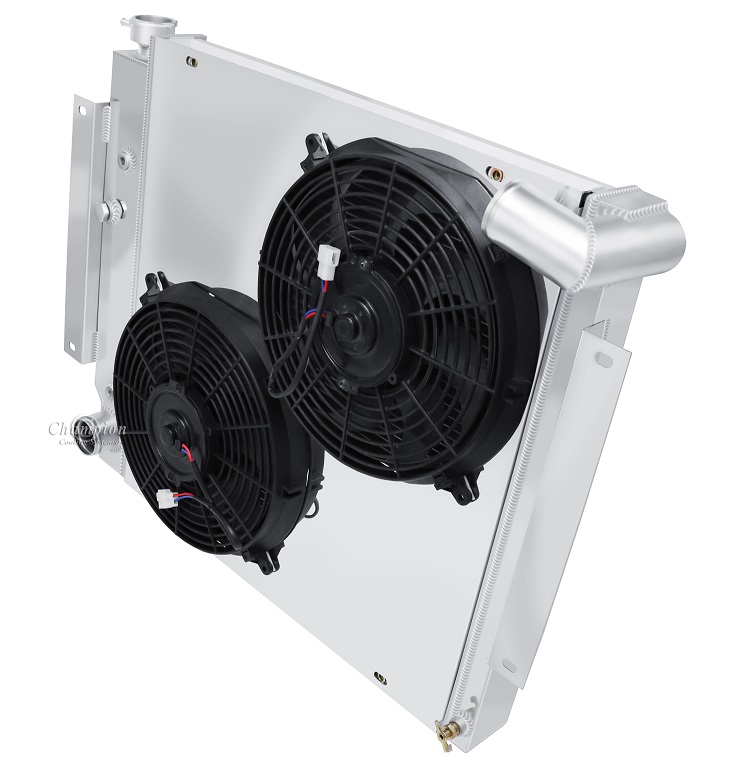

Plus Champion Aluminum Shroud & 2-10" SPAL High Performance Fans
3-Row Core | Cools up to 650hp

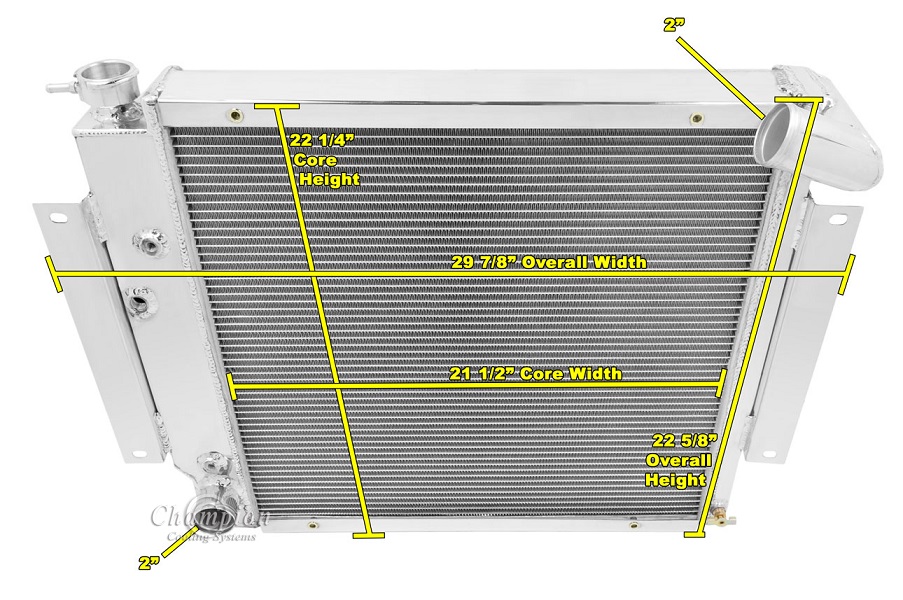

Radiator Dimensions:
Total: 23" tall (with cap) x 29.25" wide (including brackets)
Core: 22.13" tall x 21.75" wide x 2" thick
Inlet: 2” passenger side
Outlet: 1.88" driver side
Tanks: 2.75"
Tubes: 0.63" thick

Bracket Mounted

Radiator Cap Included
Transmission Cooler (1/8 27 npt)

When using electric fans:
One 16" fan recommended for this core size (sold separately)



Specifications
International Scout II / Pickup 1970-1981 (5.0L/5.6L V8)
CC7180-7180FS16SP0400

CC7180-7180FS16SP0400

CC7180-7180FS16SP0400
Click to enlarge image(s)

Champion All Aluminum Radiator

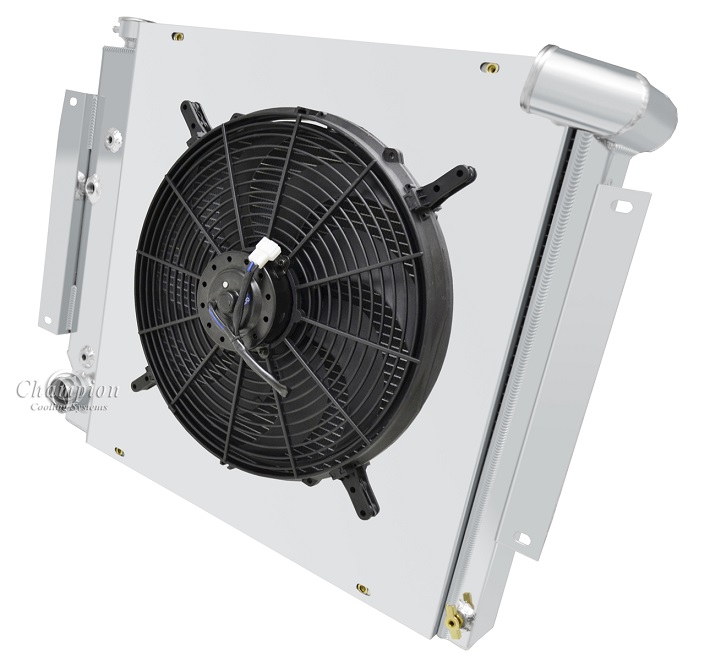

Plus Champion Aluminum Shroud & 16"SPAL Low Profile Fan
3-Row Core | Cools up to 650hp
SPAL 2049 Upgrade Adds 1.5" On Setup Please Measure Clearance

Radiator Dimensions:
Total: 23" tall (with cap) x 29.25" wide (including brackets)
Core: 22.13" tall x 21.75" wide x 2" thick
Inlet: 2” passenger side
Outlet: 1.88" driver side
Tanks: 2.75"
Tubes: 0.63" thick
Total Thickness of Setup: 2.55
Bracket Mounted

Radiator Cap Included
Transmission Cooler (1/8 27 npt)

When using electric fans:
One 16" fan recommended for this core size (sold separately)



Specifications
International Scout II / Pickup 1970-1981 (5.0L/5.6L V8)
