Galaxie Radiator (1960-1963)

CC6063

CC6063

CC6063
Click to enlarge image(s)

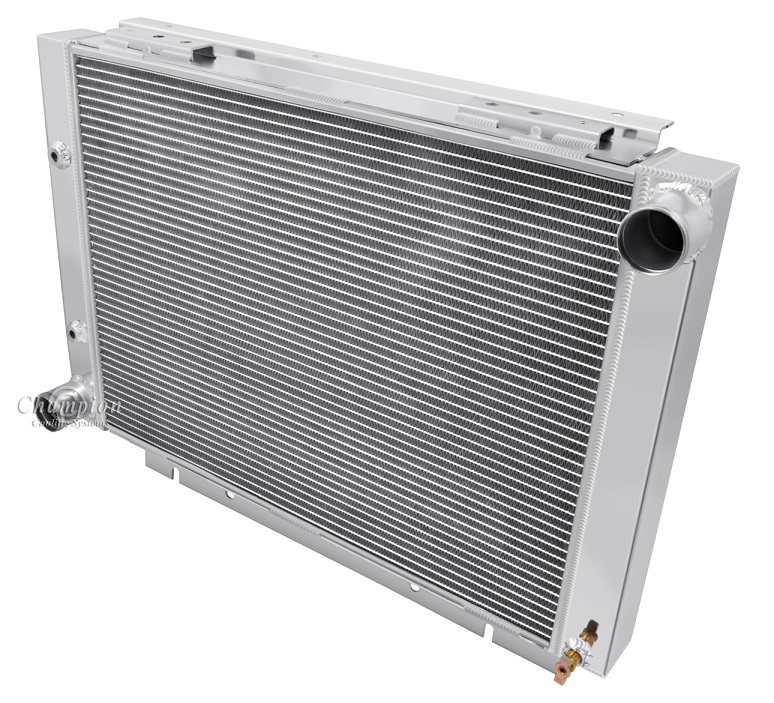

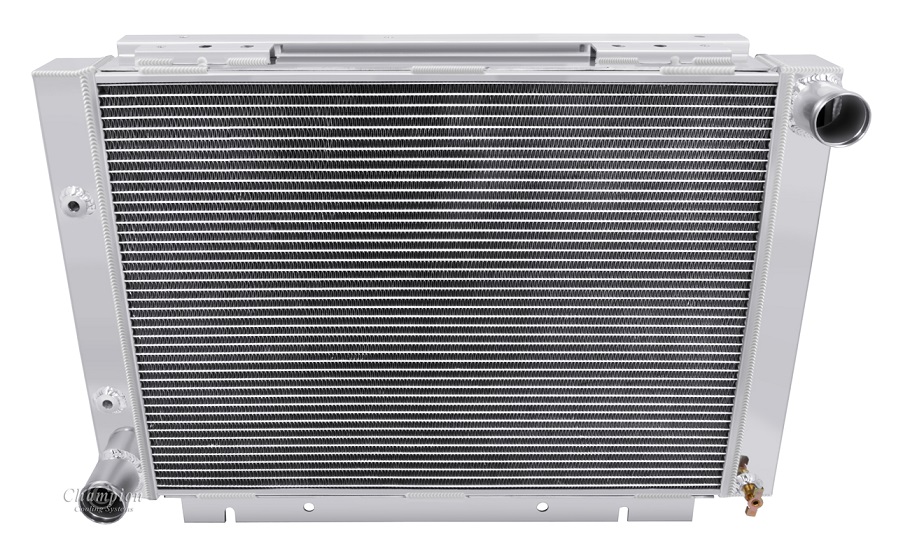

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp

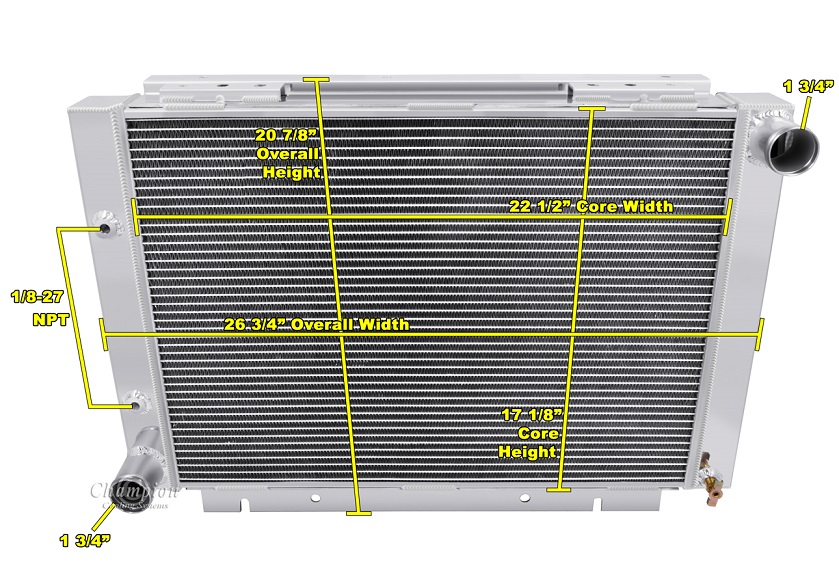

Radiator Dimensions:
Total: 20.88" tall  x 26.75" wide
Core: 17.125" tall x 22.5" wide x 2" thick
Inlet: 1.75" passenger side
Outlet: 1.75" driver side
Tanks: 2.63" thick
Tubes: 0.63" thick

Top Flange Mounted
Lower Bracket Mounted

Transmission Cooler included (1/8-27npt)


Compatible With
Ford Galaxie 1960-1963
MC6063

MC6063

MC6063
Click to enlarge image(s)
Champion All Aluminum Radiator
4-Row Core | Cools up to 700hp

Radiator Dimensions:
Total: 20.88" tall  x 26.75" wide
Core: 17.125" tall x 22.5" wide x 2.75" thick
Inlet: 1.75" passenger side
Outlet: 1.75" driver side
Tanks: 3.13" thick
Tubes: 0.63" thick

Top Flange Mounted
Lower Bracket Mounted

Transmission Cooler included (1/8-27npt)


Compatible With
Ford Galaxie 1960-1963
CC64GLT

CC64GLT

CC64GLT
Click to enlarge image(s)

Champion All Aluminum Surge Tank
For the FE engine series

Tank Dimensions:
Total (tank only): 10" x 6" x 3.5"

Direct replacement for the original no mods needed

13 lb. Radiator Cap included
These look great when polished!



Compatible With
Ford Galaxie 500XL 1964
Ford Galaxie with FE Engines (1960-1963)
