Chevrolet Corvette Champion Radiator (89-96)

Note: 89-90 if your radiator had a fill neck refer to the 84-90 radiators
EC1052

EC1052

EC1052
Click to enlarge image(s)

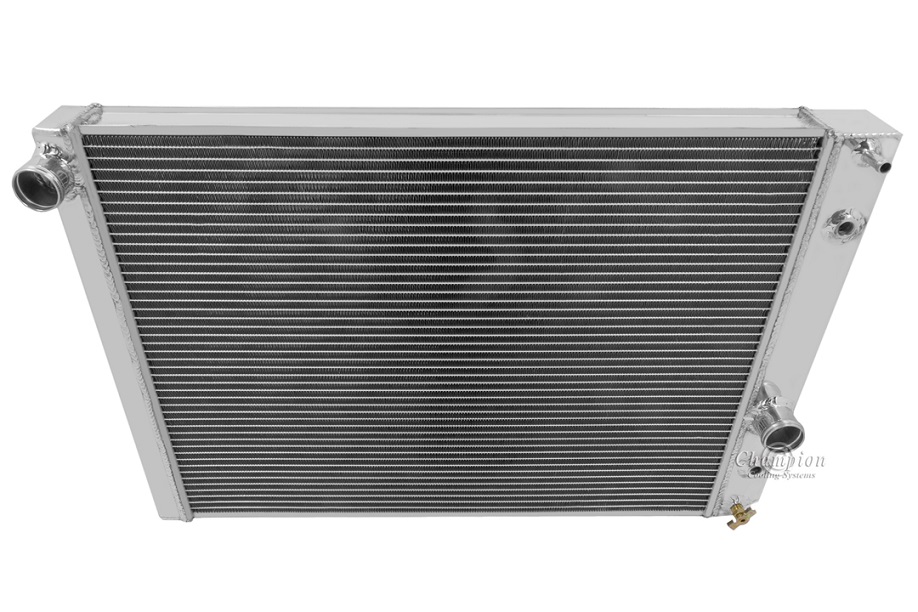

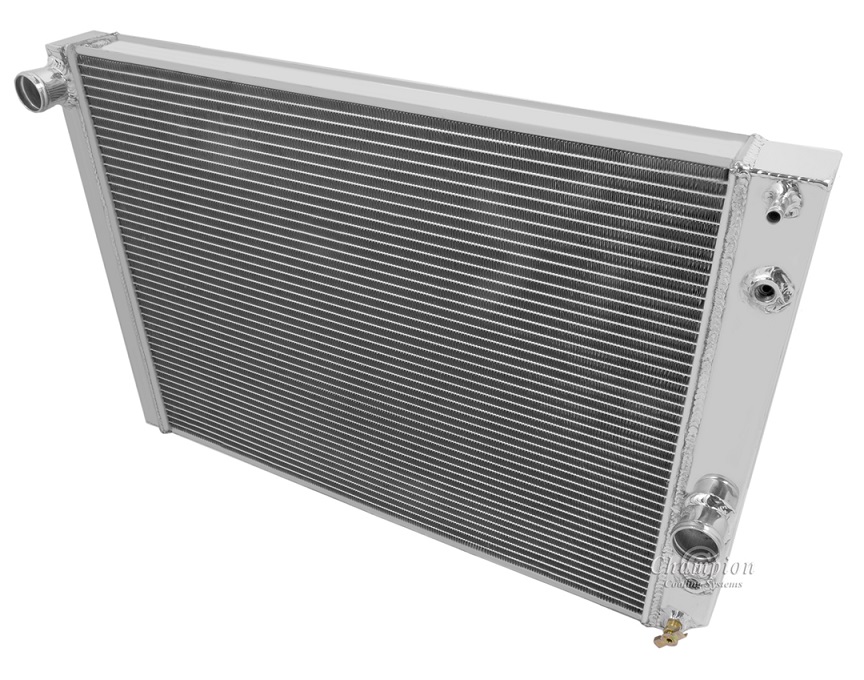

Champion All Aluminum Radiator
2-Row Core | Cools up to 400hp

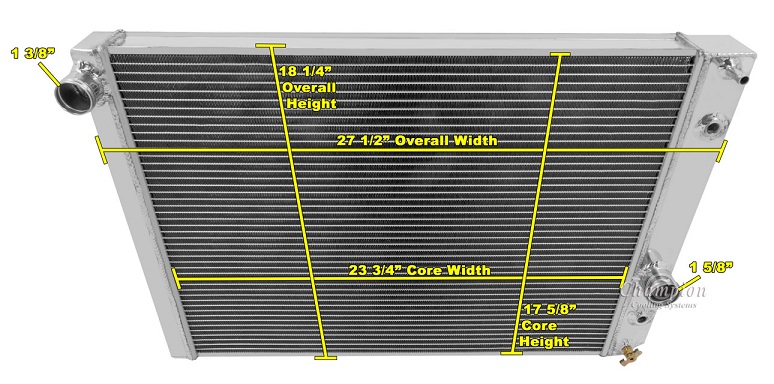

Radiator Dimensions:
Total: 18.13" tall x 27.5" wide
Core: 18" tall x 24" wide x 1.75" thick
Inlet: 1.38" driver side
Outlet: 1.63" passenger side
Tank: 2.5" thick
Tubes: 0.75" thick

Saddle Mounted


Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
note: no fill neck (part: CC829 for a fill neck)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)


Compatible With
Chevrolet Corvette 1989-1996 (5.7L V8)
CC1052

CC1052

CC1052
Click to enlarge image(s)
Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp

Radiator Dimensions:
Total: 18.13" tall x 27.5" wide
Core: 18" tall x 24" wide x 2" thick
Inlet: 1.38" driver side
Outlet: 1.63" passenger side
Tank: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted


Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
note: no fill neck (part: CC829 for a fill neck)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)

Custom shroud for electric fan(s) available upon request:


Compatible With
Chevrolet Corvette 1989-1996 (5.7L V8)
