Buick Skylark Champion radiator (1964-1965) V8

Please confirm your core and overall size as well as outlet positions
CC1651

CC1651

CC1651
Click to enlarge image(s)

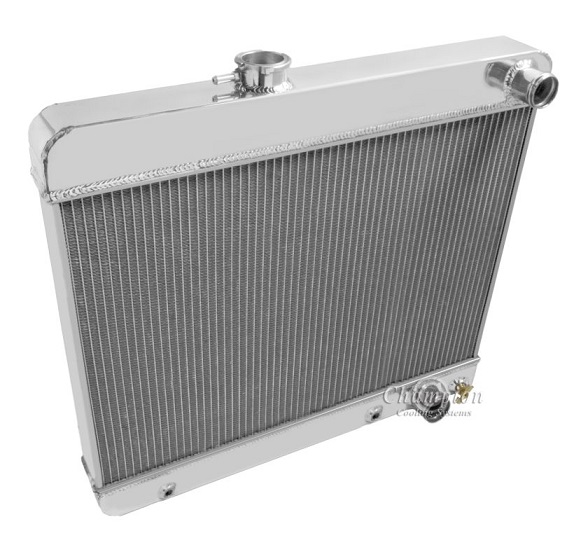

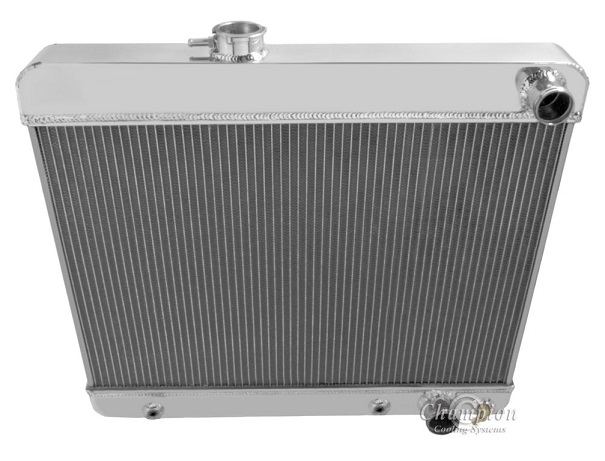

Champion All Aluminum Radiator
3-Row Core | Cools up to 500hp
For the 4.9 300 V8 with a Down Flow radiator
Make sure you do not have the cross flow radiator
The 4.9 300 crossflow is the CC571
We do not carry the 6.6 401 crossflow radiators

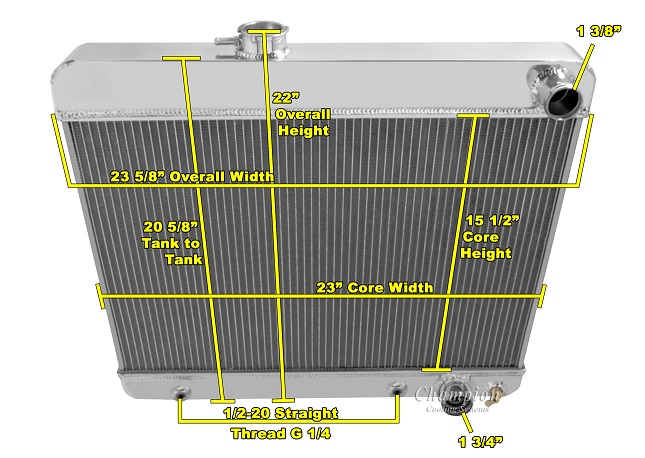

Radiator Dimensions:
Total: 22" tall x 23.63" wide (including cap) x 2.5" thick
Core: 15.5" tall x 23" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

16 lb. Radiator cap included
Transmission Cooler included (1/2"-20 Straight Thread, inverted flare)

Custom Shroud Available Upon Request.


Compatible With
Buick Skylark 1965 (4.9L/300ci V8 and 6.6L/401ci V8)
