Chevy Truck (47-54)

Scroll down for additional options
EC5100-5100FS16

EC5100-5100FS16

EC5100-5100FS16
Click to enlarge image(s)

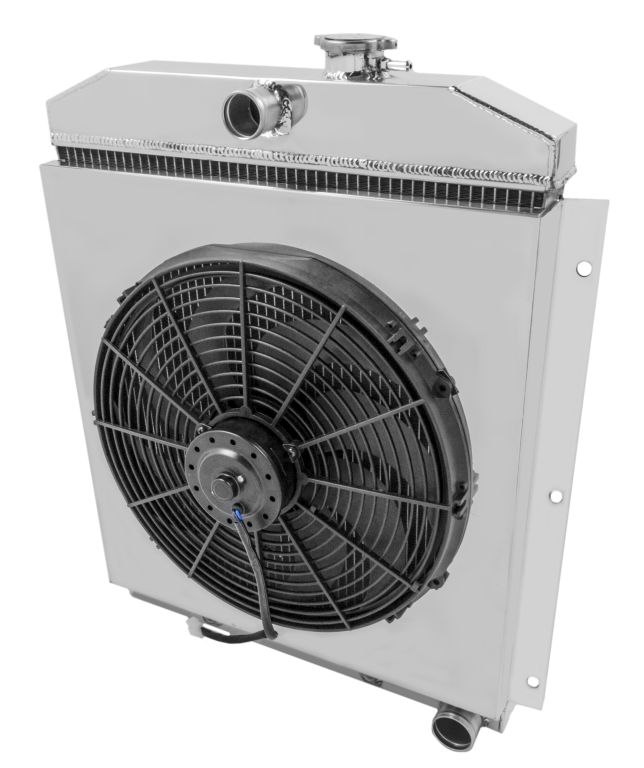

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud and 16" fan
Verify clearance for electric fan (3.5" thick)
Total thickness: 6" to fan motor
2-Row Core | Cools up to 450hp

Radiator Dimensions:
Total: 25.5" (26.5" Incl Cap) Tall x 22.75" Wide (Incl Brackets)
Core: 20.75” Tall x 19.5” Wide x 1.75" thick
Inlet: 1.5” center / Outlet 1.75” Pass side
Tanks: 2.75" thick
Tubes: 1" thick

Bracket Mounted

Transmission Cooler Included (1/2"- 20 straight thread)13lb. Radiator Cap included

Angled Brackets match OEM



Compatible With
Chevy C/K Series 1947-1954
Chevy Suburban 1947-1954
Chevy Panel truck 1947-1954
CC5100B-5100FS16

CC5100B-5100FS16

CC5100B-5100FS16
Click to enlarge image(s)

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" fan
Verify clearance for electric fan (3.5" thick)
Total thickness: 6.75" to fan motor

3-Row Core | 700hp Rating

Radiator Dimensions:
Total:
25.5" tall (26.5" with cap) x 22.75" wide (including brackets)
Core: 20.75" tall x 19.5" wide x 2.5" thick
Inlet 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

13 lb. radiator cap included
Transmission Cooler included (1/2"- 20 straight thread)


LS Version Available


MC5100-5100FS16

MC5100-5100FS16

MC5100-5100FS16
Click to enlarge image(s)

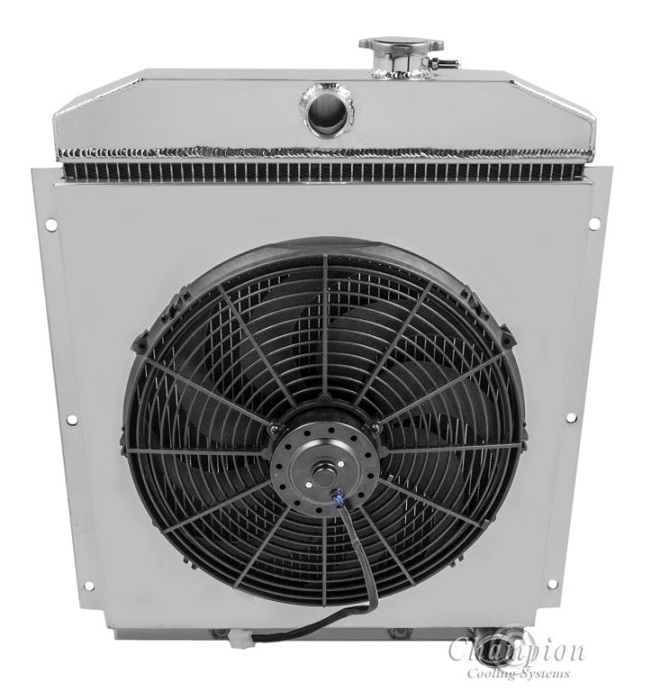

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan (3.5" thick)
Total thickness: 7.25" to fan motor

4-Row Core | Cools up to 800hp
Polished Tanks

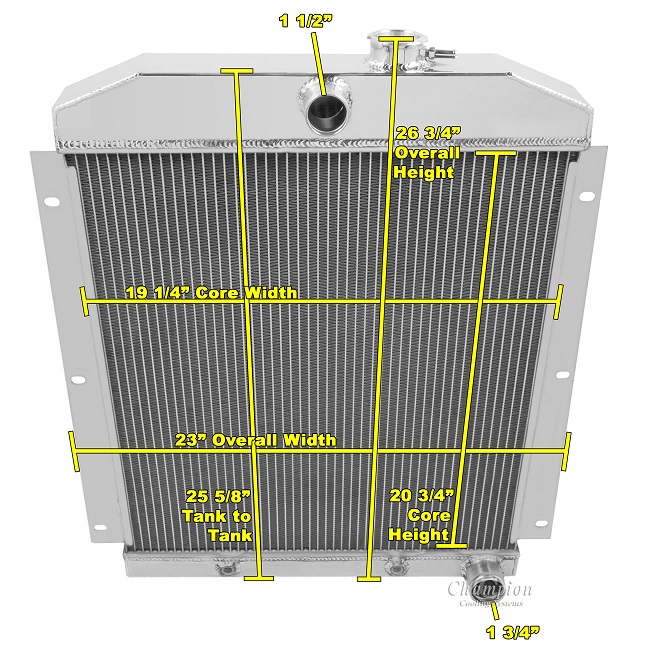

Radiator Dimensions:
Total: 26.75" tall x 23" wide (including brackets)
Core: 20.75" tall x 19.25" wide x 3.13" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick

Bracket Mounted
(Angled Brackets match OEM)

13 lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)




Compatible With
Chevrolet C/K Series 1947-1954
Chevrolet Suburban 1947-1954
Chevrolet Panel Truck 1947-1954
5100FS16

5100FS16

5100FS16
Click to enlarge image(s)

Ledfoot Racing Aluminum Fan Shroud for one 16" Electric Fan

Dimensions:
20 5/8" tall x 22 3/8" wide

Attributes:
All-Aluminum Fan Shroud
Cut-out to accept one 16" electric fan
Designed Exclusively for One Electric Fan (sold separately)
Made in the U.S.A

Compatible with:
Champion CC5100 and American Eagle AE5100.
