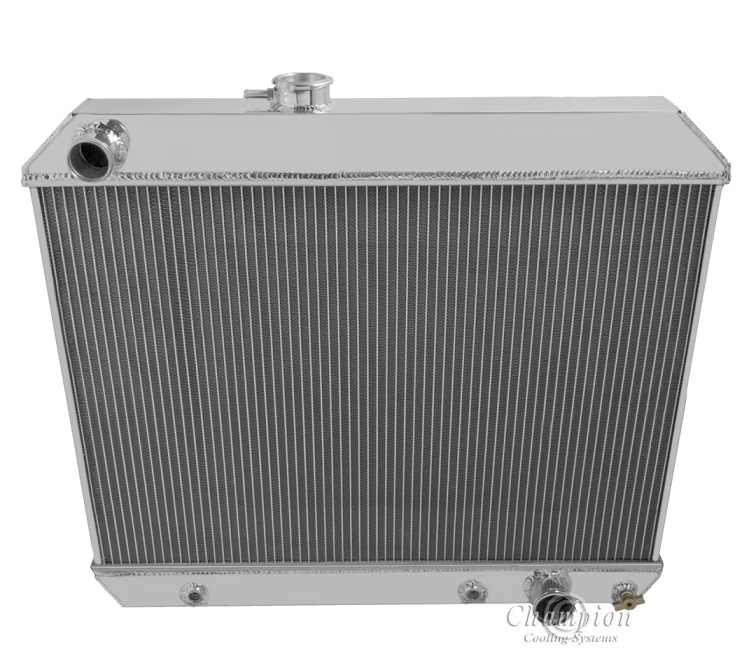

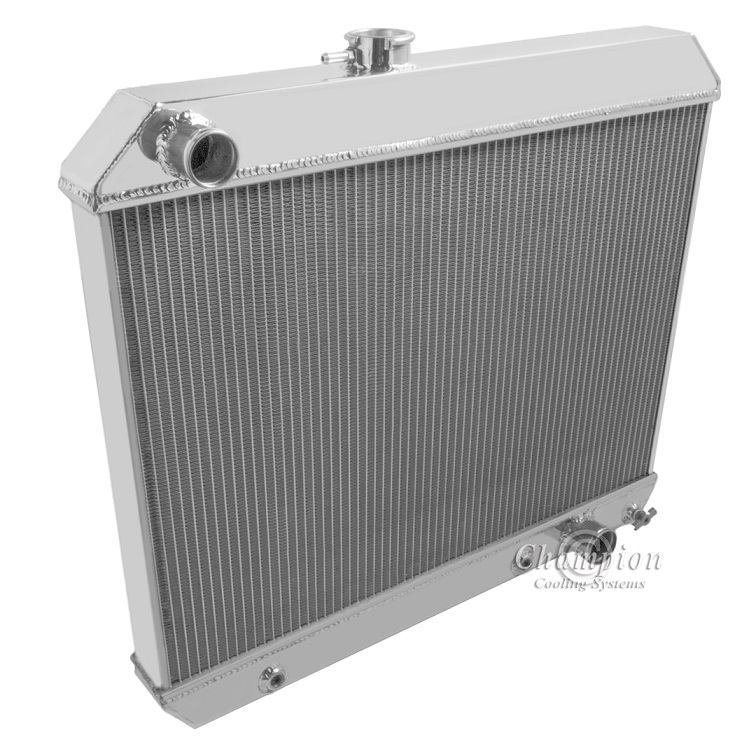

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp
Please verify you radiator height, we have 20", 20.5"
and 22.5" tank to tanks heights. Call for Assistance.

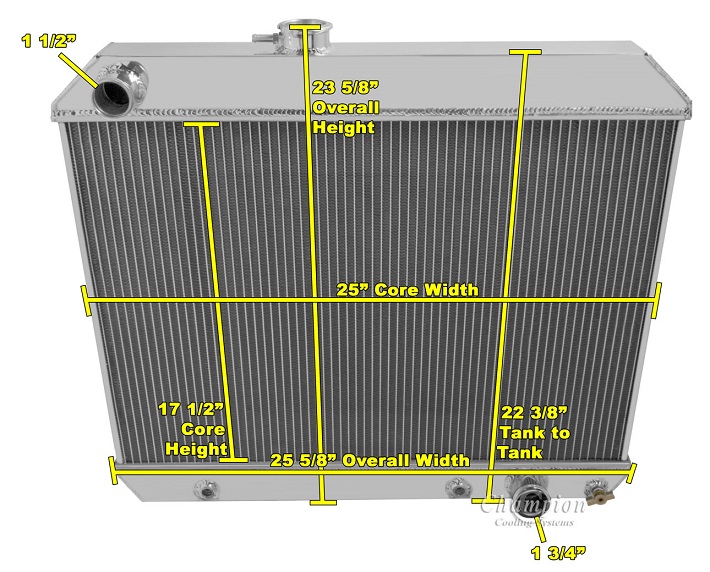

Radiator Dimensions:
Total: 22.5" Tall 23.5" (with cap) x 25.5" wide
Core: 17.5" tall x 25" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: (top) 2.75" thick, (bottom) 2.38" thick
Tubes: 0.63" thick

Saddle Mounted

16 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread)

When using electric fans:
Two 12" Electric fans or one 16" fan recommended for this core size (sold separately)



Compatible With
Pontioac Tempest 1964-1965 (5.3L V8)
Pontiac GTO 1964-1965 (5.3L V8)
Pontiac Lemans 1964-1965 (5.3L V8)
