(05-14) Mustang Radiator

(05-14) Ford Mustang Champion Radiator

EC2789

EC2789

EC2789
Click to enlarge image(s)
Champion All Aluminum Radiator
2-Row Core | Cools up to 350hp

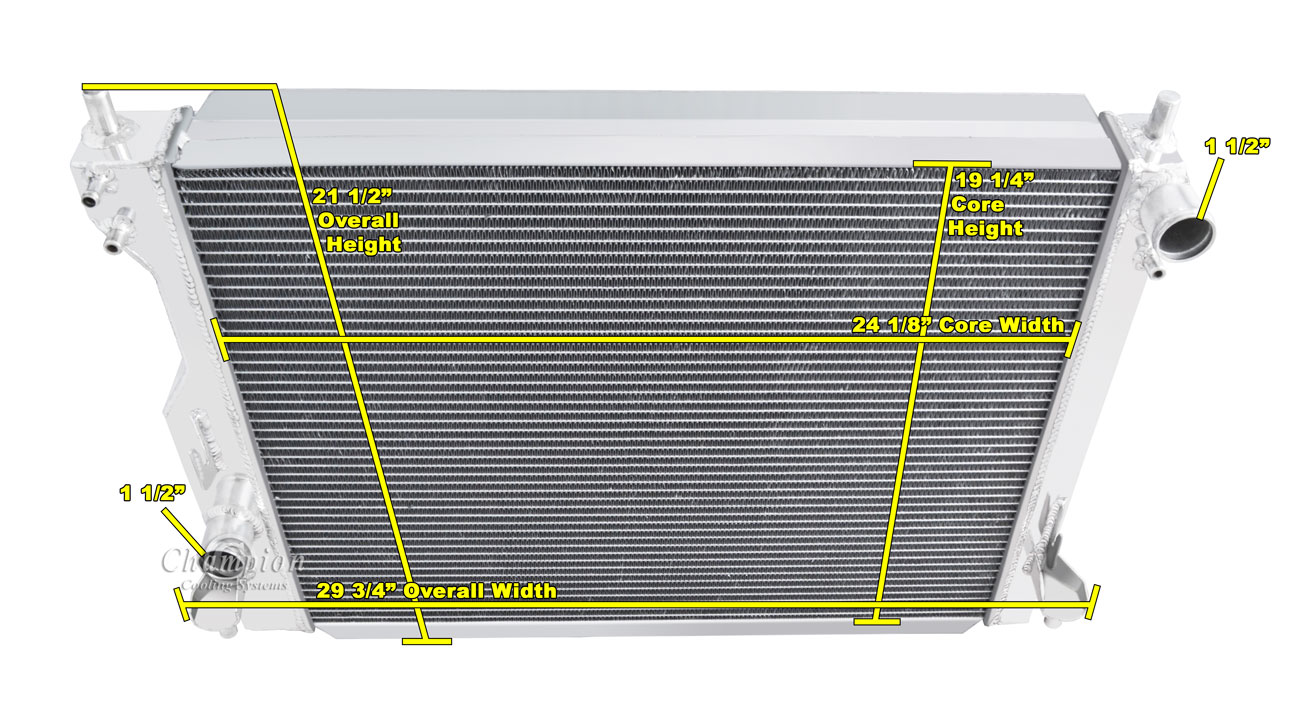

Radiator Dimensions:
Total: 21.5" tall x 29.75" wide
Core: 19.25" tall x 24.13" wide x 1.75" thick
Inlet: 1..5" drivers side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Pin Mounted

13 lb. Radiator Cap included
Transmission Cooler NOT Included


Compatible with:
2005-2014 Ford Mustang 3.7L, 4.0L, 4.6L, 5.0L
CC2789

CC2789

CC2789
Click to enlarge image(s)

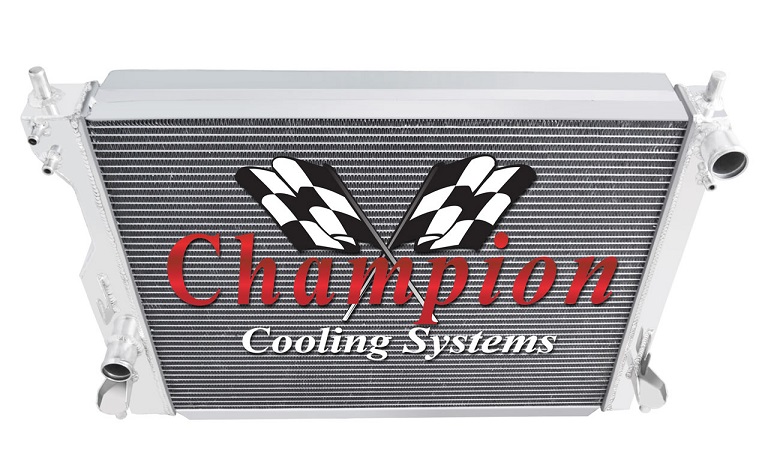

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp

Radiator Dimensions:
Total: 21.5" tall x 29.75" wide
Core: 19.25" tall x 24.13" wide x 2.13" thick
Inlet: 1..5" drivers side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Pin Mounted

16 lb. Radiator Cap included
Transmission Cooler NOT Included


Compatible with:
2005-2014 Ford Mustang 3.7L, 4.0L, 4.6L, 5.0L
