D100 / D200 (61-71)

These three choices may not be a direct fit replacments, however, they should be extremely close.
Scroll down to see all three. Please note your hose positions.

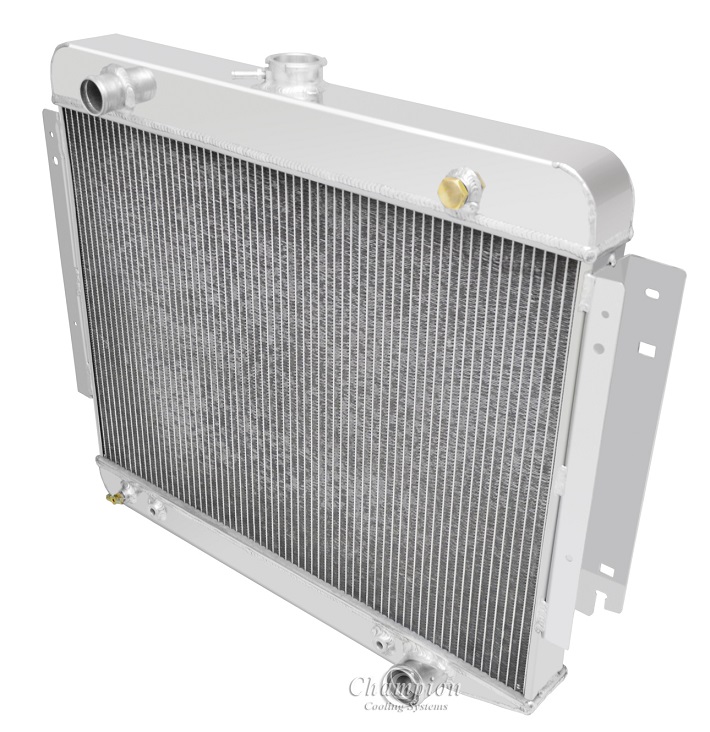

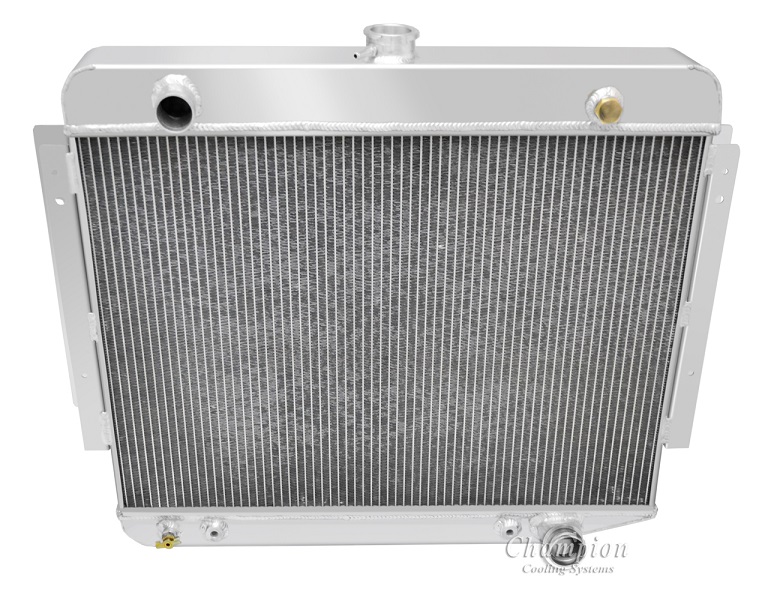

CC889

CC889

CC889
Click to enlarge image(s)
Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp
This is the 18" tall core we do not carry the 21"

Radiator Dimensions:
Total: 24" tall x 30" wide (with brackets) x 2.5" deep
Core: 18" tall x 26" wide x 2.25" thick
Inlet: 1.5" drivers side
Outlet: 1.75" passenger side
Tanks: 2.5"
Tubes: 0.63" thick

Plugged Bung size: 3/8" NPT (top tank)

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)


Compatible with:
70-78 B-series/Ram Vans
72-79 D/W Series Pickups
74-78 Ramcharger

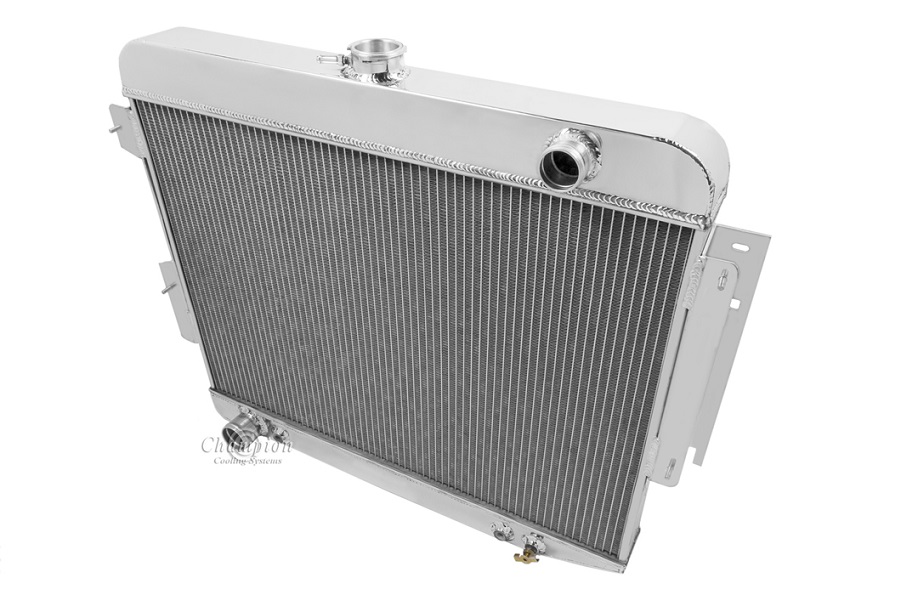

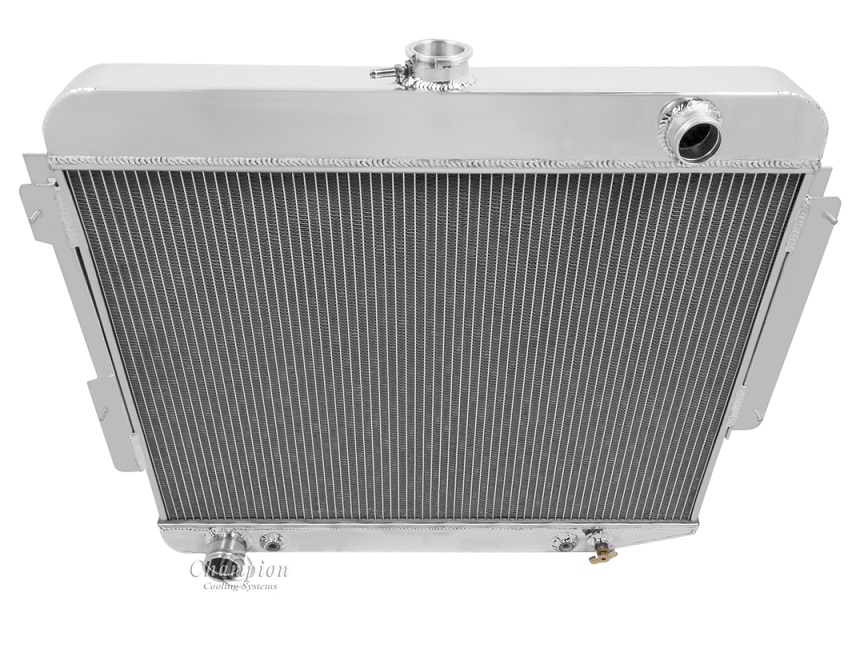

CC1640

CC1640

CC1640
Click to enlarge image(s)
Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp

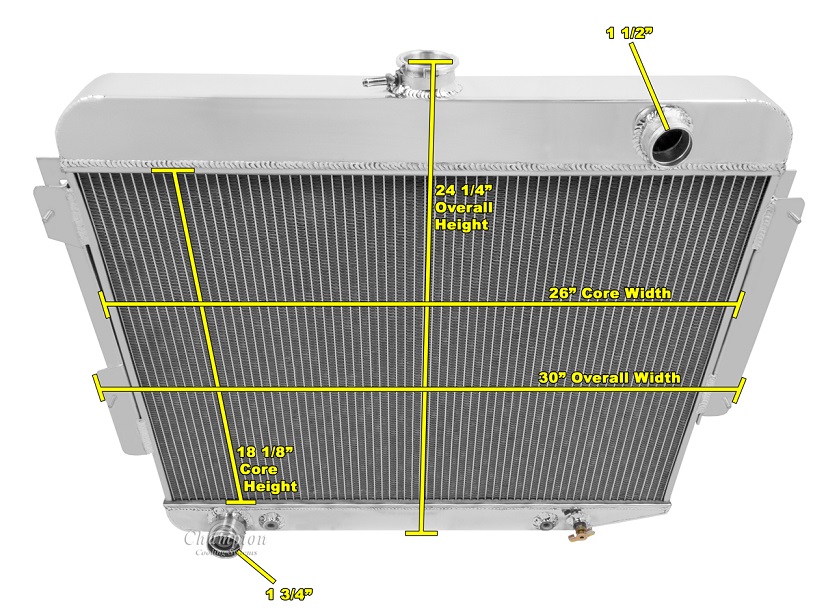

Radiator Dimensions:
Total: 24.75" tall (with cap) x 29.75" wide (with brackets) x 2.25" thick
Core: 18" tall x 26.25" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

16 lb. Radiator cap included
Transmission Cooler included (1/8-27NPT)

Custom shroud for electric fan(s) available upon request:



Compatible With
Dodge Charger 1966-1969
CC1638

CC1638

CC1638
Click to enlarge image(s)
Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp
This is taller than our other 26" core radiators
please confirm it will fit.


Radiator Dimensions:
Total: 24.75" tall (with cap) x 30" wide (with brackets) x 2.5" thick
Core: 17.5" tall x 26" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

16 lb. Radiator cap included
Transmission Cooler included (1/8-27NPT)

Custom shroud for electric fan(s) available upon request:



Compatible With
Dodge Charger 1966-1969
