Camaro (82-92)
If you need outlets other than shown below please call in your order
AN fittings ($35 each) are also available upon request
CC951DP

CC951DP

CC951DP
Click to enlarge image(s)

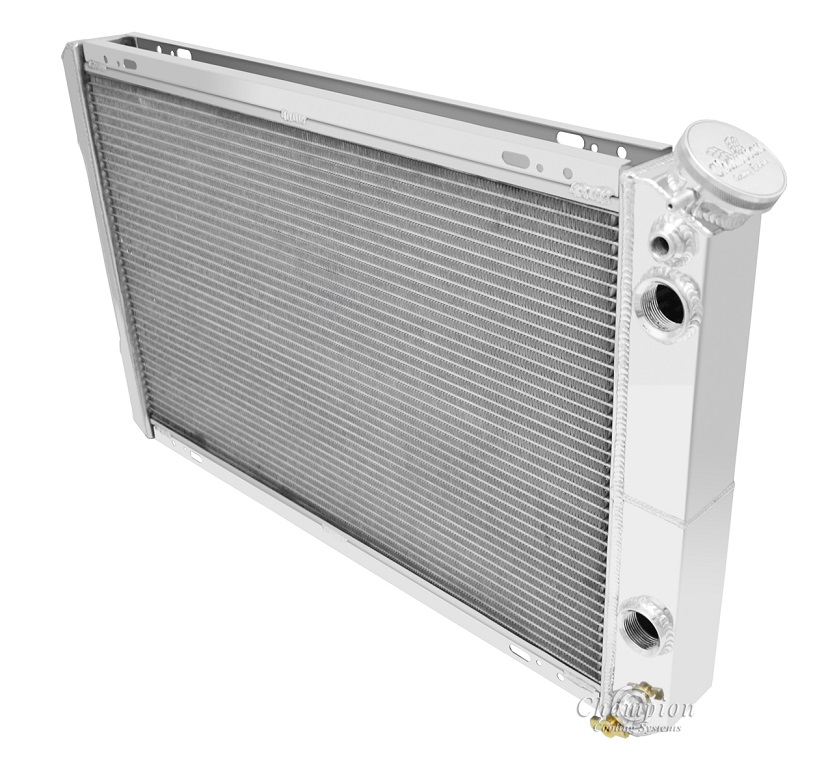

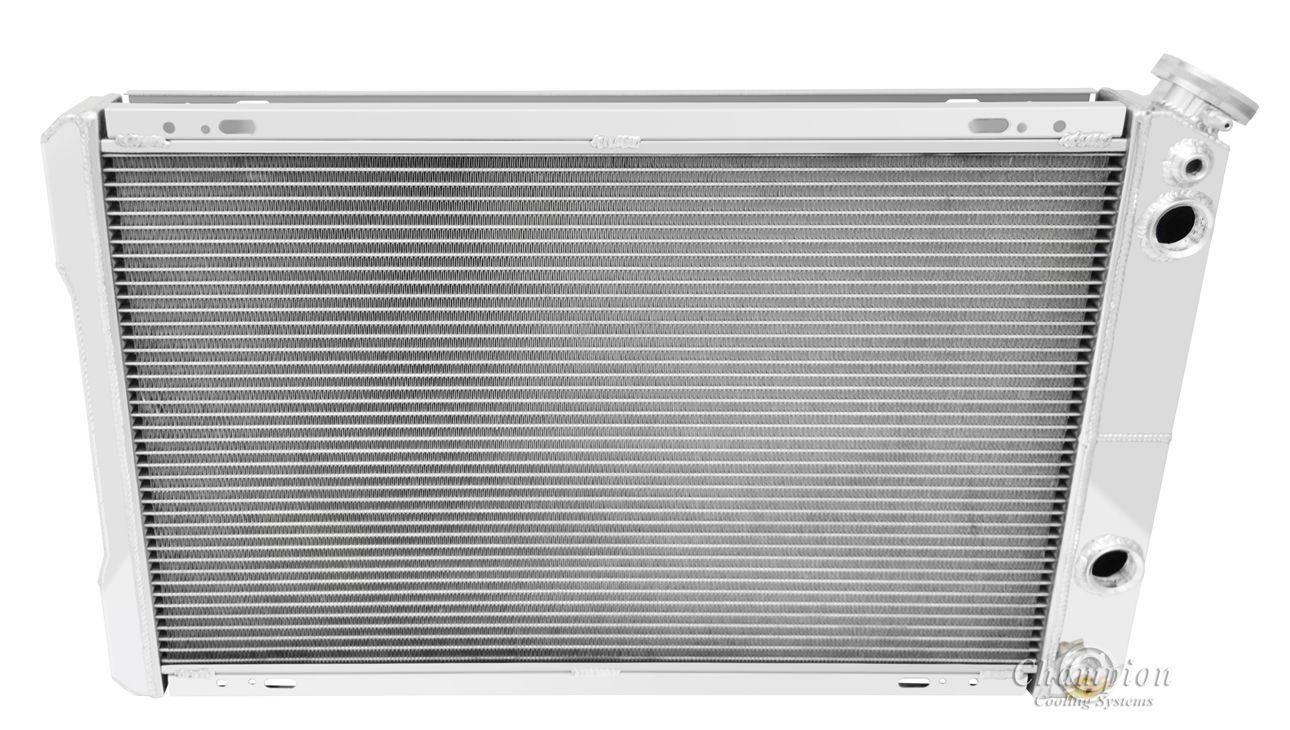

Champion All Aluminum Radiator
Dual Pass / LS Conversions
You MUST Choose your billet outlets in "Popular Add-Ons"

16-& 20 AN available upon request just call
3-Row Core

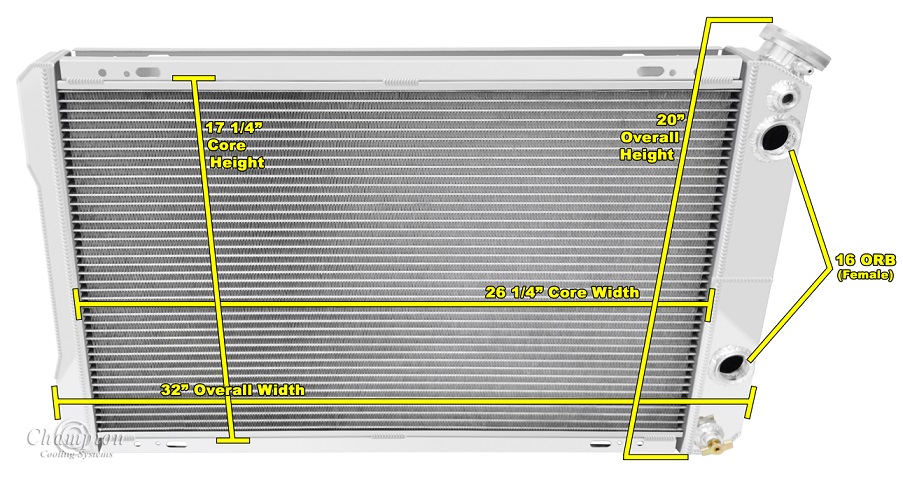

Radiator Dimensions:
Total: 18.88" tall (20.13" with cap) x 32” wide
Core: 17.25” tall x 26.25" wide x 2" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

16 lb. Billet Radiator Cap included
Steam Port with 1/4" barbed fitting and plug included
Aluminum Fan Shroud is also available (sold separately)

When using electric fans:
One 16" or Two 12" Electric fans recommended for this core size (sold separately)


Compatible With
Chevrolet Camaro 1982-92
Pontiac Firebird/ Trans Am - 1982-92
