Bronco 5.0 Conversion (66-77)

EC522

EC522

EC522
Click to enlarge image(s)

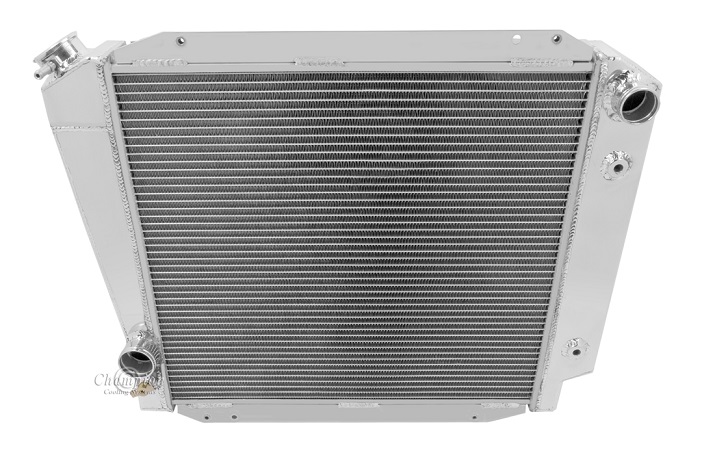

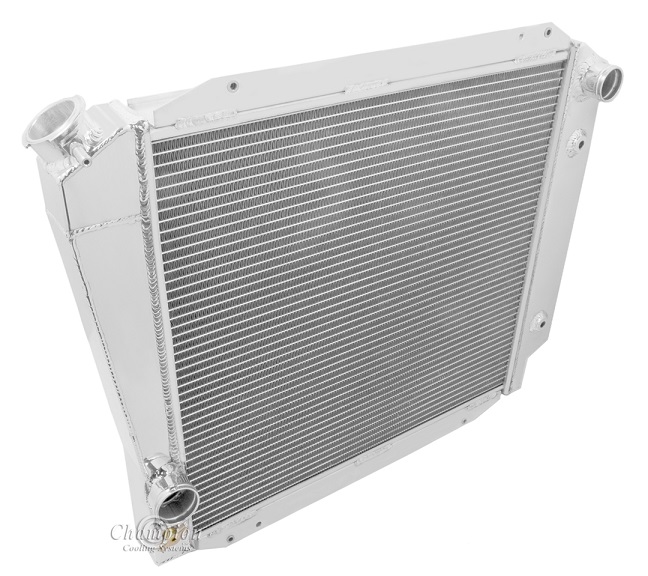

Champion All Aluminum Radiator
Conversion Style radiator
2-Row Core | Cools up to 400hp

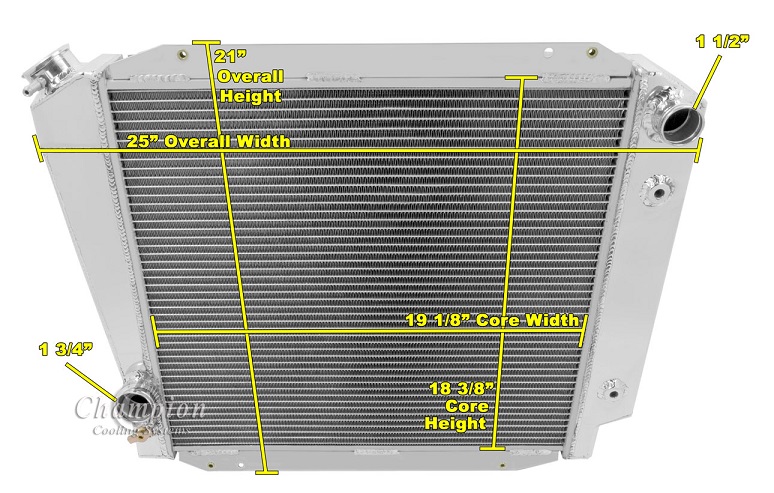

Radiator Dimensions:
Total: 21" tall x 26" wide (including brackets)
Core: 19" tall x 19" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.75" thick

Shroud Bracket Nut Inserts: 6MM-1

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also Available (sold separately)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)



Compatible With
66-77 Bronco with V8 Engine Conversion (5.0, etc)
CC522

CC522

CC522
Click to enlarge image(s)

Champion All Aluminum Radiator
Conversion Style radiator
3-Row Core | Cools up to 600hp

Radiator Dimensions:
Total: 21" tall x 26" wide (including brackets)
Core: 19" tall x 19" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick
Shroud Bracket Nut Inserts: 6MM-1

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also Available (sold separately)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)



Compatible With
66-77 Bronco with V8 Engine Conversion (5.0, etc)
MC522

MC522

MC522
Click to enlarge image(s)

Champion All Aluminum Radiator
Newer 5.0 Conversion style radiator
4-Row Core | Cools up to 650hp

Radiator Dimensions:
Total: 21" tall x 26" wide (including brackets)
Core: 19" tall x 19" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3.2" thick
Tubes: 0.63" thick
Shroud Bracket Nut Inserts: 6MM-1

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also Available (sold separately)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)



Compatible With
Ford Bronco 1966-1977 (Ford configuration V8 with lower hose on driver side)
