ChampionRadiators.com is owned and operated by Ledfoot Racing, an authorized distributor for Champion Cooling Systems and American Eagle Radiators.
Corvette (73-76)
Scroll down for additional options
AE478

AE478

AE478
Click to enlarge image(s)

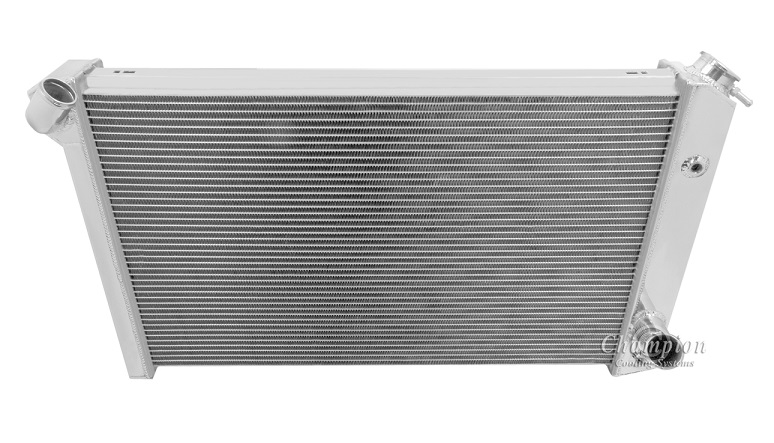

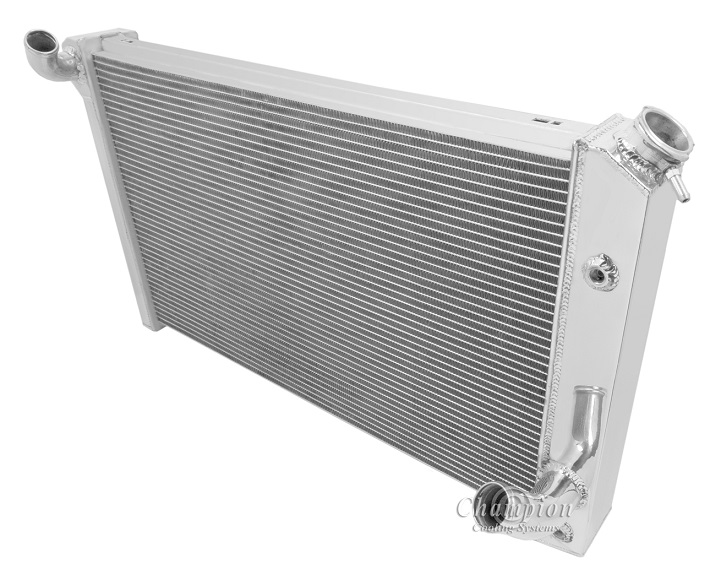

American Eagle All Aluminum Radiator
2-Row Core: 1" Thick Tubes | Cools up to 700hp

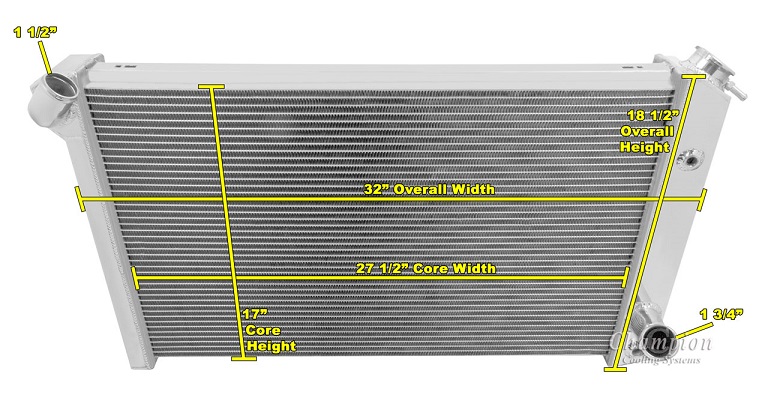

Radiator Dimensions:
Total: 18.5"  tall (19.75" with cap) x 32.5" wide (top); 31.5" wide (bottom)
Core: 16.5" tall x 27.5" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 1" thick

Saddle mounted

16 lb. Radiator Cap included
Transmission Cooler included (1/2- 20 STRAIGHT THREAD)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)


Buy the Fan and Shroud Combo, and Save!
Compatible With
Chevy Corvette 1973-1974 (350ci, 454ci V8)
Chevy Corvette 1975-1976 (350ci V8)
AE478-478FS12SP

AE478-478FS12SP

AE478-478FS12SP
Click to enlarge image(s)

American Eagle All Aluminum Radiator
Plus Ledfoot Racing Shroud and two SPAL 12" Fans
(We no longer recommend the Pro Series fans for this application)

2-Row Core: 1" Thick Tubes | Cools up to 700hp
($40 Discount)
Radiator Dimensions:
Total: 18.5"  tall (19.75" with cap) x 32.5" wide (top); 31.5" wide (bottom)
Core: 16.5" tall x 27.5" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 1" thick

Saddle mounted

16 lb. Radiator Cap included
Transmission Cooler included (1/2- 20 STRAIGHT THREAD)
SPAL 12" Medium Profile Fans: Part# SPAL12-1522



Compatible With
Chevy Corvette 1973-1974 (350ci, 429ci V8)
Chevy Corvette 1975-1976 (350ci V8)
