Toyota Corolla Champion Radiator (71-74)

Please confirm you overall width, some radiators were not as wide as the choices below.
Make sure you know where your oulets are located prior to ordering.


Click to enlarge image(s)

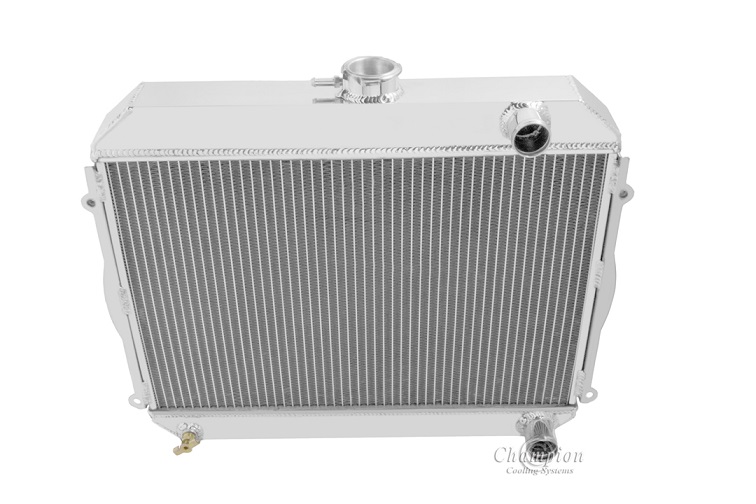

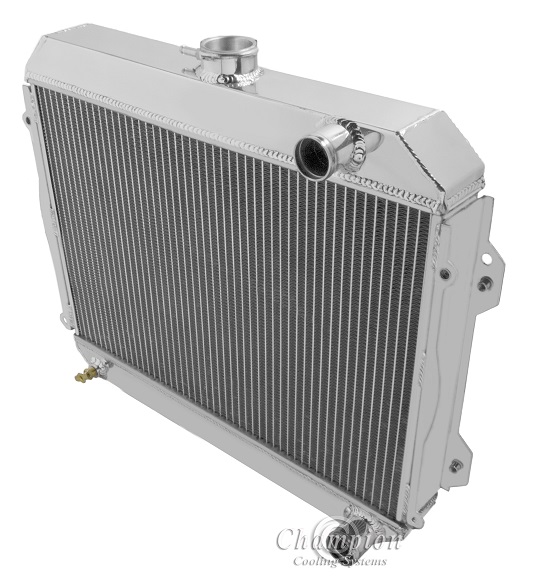

Champion Cooling Aluminum Radiator
3-Row Core | Cools up to 500hp

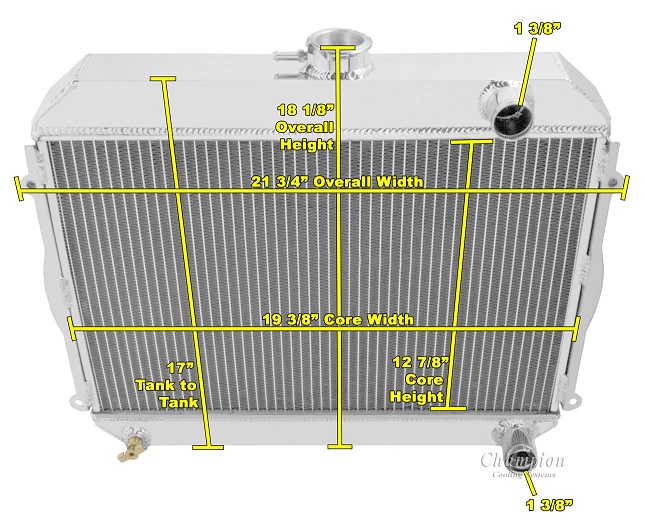

Radiator Dimensions:
Total: 18.12" tall x 21.75" wide
Core: 12.88" tall x 19.38" wide x 2.38" thick
Inlet: 1.38"
Outlet: 1.38" passenger side
Tanks: 2.75" thick
Tubes: .63" thick

16 lb. Radiator Cap included
Transmission Cooler NOT Included



Click to enlarge image(s)
All Aluminum Champion Radiator
3-Row Core | Cools up to 375hp

CC482 Radiator Dimensions:
Total: 18.25" tall (with cap) x 21.75" wide (with brackets)
Core: 13.75" tall x 19.13" wide x 2" thick
Inlet: 1.38" drivers side
Outlet: 1.38" drivers side
Tanks: 2.75" thick
Tubes: 0.63" thick

Bracket Mounted

Radiator Cap Included
Transmission Cooler NOT Included

Compatible With
Toyota Corolla 1975-1979
