Bronco Radiator & Shroud (85-97)
CC1451-1451FS14

CC1451-1451FS14

CC1451-1451FS14
Click to enlarge image(s)

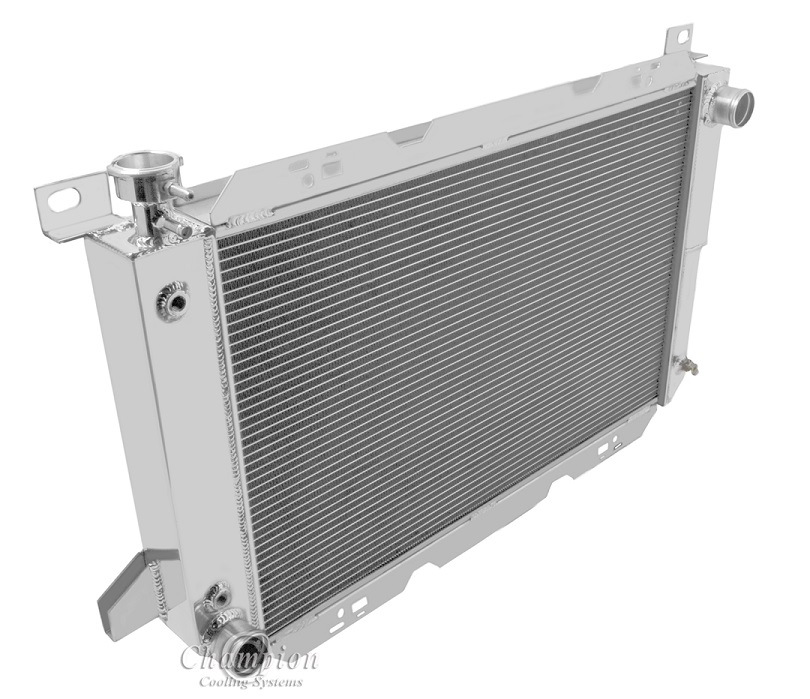

All Aluminum Champion Radiator

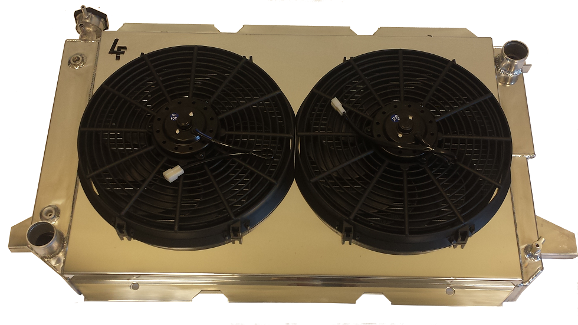

Plus Ledfoot Racing Aluminum Shroud & Two 14" Fans
3-Row Core | Cools up to 750hp

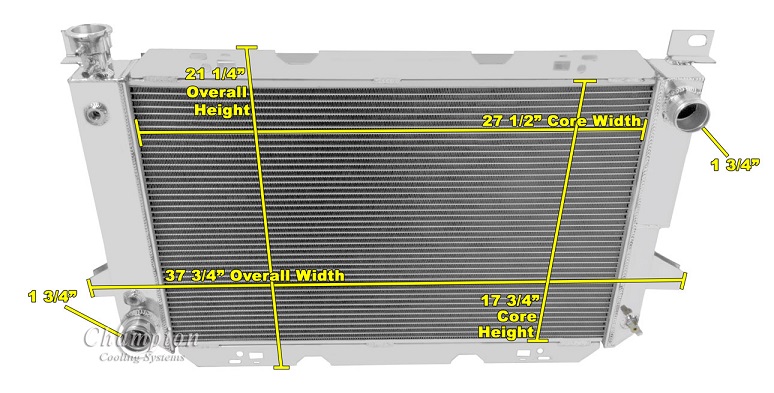

Radiator Dimensions:
Total: 22.25" tall (with cap) x 37.25" wide
Core: 18" tall x 28.13" wide x 2" thick
Inlet: 1.75" passenger side
Outlet: 1.75" drivers side
Tanks: 3" thick
Tubes: 0.63" thick
Total Thickness: 6" (5" between fan motors)

13 lb. Radiator cap included
Transmission Cooler included (1/4-18NPT)


Compatible With
Ford F Series 1985-1996 (302ci V8, 352ci V8, 460ci V8)
Ford F Series 1997 (351ci V8, 460ci V8)
Ford Bronco 1985-1996 (302ci V8, 351ci V8)
MC1451-1451FS14

MC1451-1451FS14

MC1451-1451FS14
Click to enlarge image(s)
All Aluminum Champion Radiator
Plus Ledfoot Racing Aluminum Shroud & 2-14" Fans
Verify clearance for electric fan
Total thickness: 7" to fan motor

4-Row Core | Cools up to 850hp

Radiator Dimensions:
Total: 22.25" tall (with cap) x 37.25" wide
Core: 18" tall x 28.13" wide x 2.75" thick
Inlet: 1.75" passenger side
Outlet: 1.75" drivers side
Tanks: 2.75" thick
Tubes: 0.63" thick
Total Thickness: 6.5" (5.5" between fan motors)

13 lb. Radiator cap included
Transmission Cooler included (1/4-18NPT)


Compatible With
Ford F Series 1985-1996 (302ci V8, 352ci V8, 460ci V8)
Ford F Series 1997 (351ci V8, 460ci V8)
Ford Bronco 1985-1996 (302ci V8, 351ci V8)
