Firebird / Trans Am (67-69)

Scroll down for additional options. If you need the smaller 21"
core radiator look up the same year Camaro with a small block.
CC370B-370FS11SPF

CC370B-370FS11SPF

CC370B-370FS11SPF
Click to enlarge image(s)

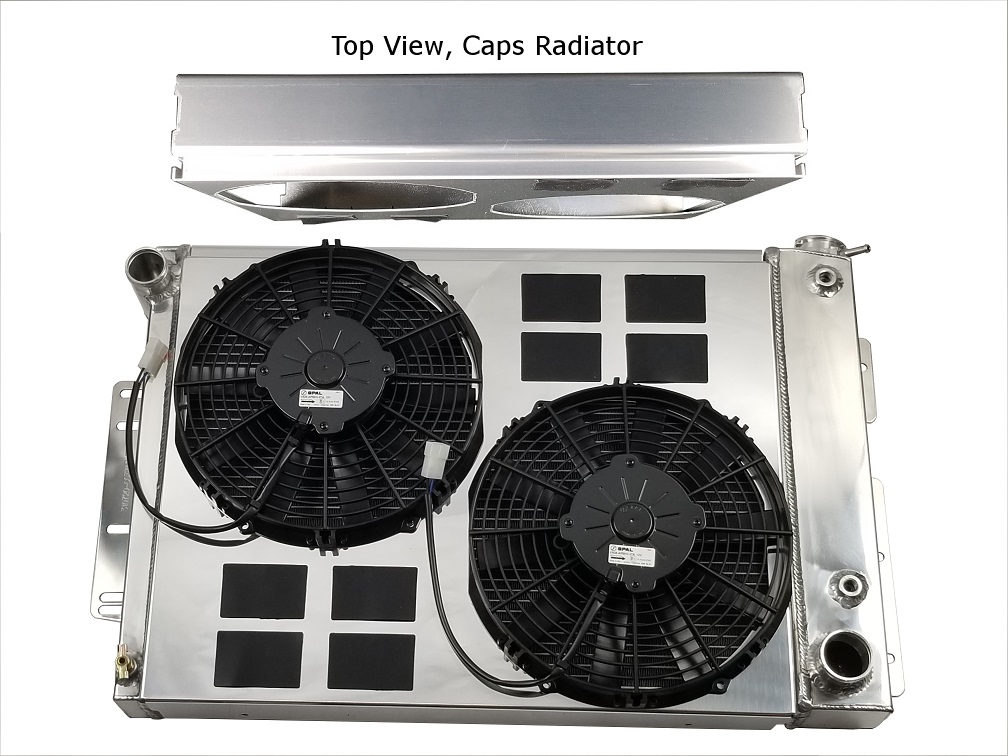

Champion All Aluminum Radiator
Plus Ledfoot Racing Shroud & 2-11" SPAL Medium Profile fans
3-Row Core | Cools up to 600hp

Radiator Dimensions:
Total: 18.5" (19.5" with cap) x 30.25" (with brackets)
Core: 16.75" tall x 22.75" wide x 2.5" thick
Inlet: 1.5"
Outlet:1.75"
Tanks: 2.75" thick
Tubes: 0.75" thick
Total Thickness: 6.5 to back of fans, 5.75" at center
Fan Thickness: 2.05

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included



MC370-MC370FS11SPF

MC370-MC370FS11SPF

MC370-MC370FS11SPF
Click to enlarge image(s)

Champion All Aluminum Radiator Plus
Ledfoot Racing Aluminum Shroud &
2-11" SPAL-1500 Fans
New Design: Now with Rubber Flaps for better air flow
Shroud also covers top of radiator for a clean look

4-Row Core, Polished Tanks
Cools up to 700hp

Radiator Dimensions:
Total: 19.25" tall x 30.25" (including brackets)
Core: 17" tall x 23" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick
Total Thickness: 6.5 to back of fans, 5.75" at center
Fan Thickness: 2.05
Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)



370CCFS11F

370CCFS11F

370CCFS11F
Click to enlarge image(s)

Ledfoot Racing Aluminum Fan Shroud for Two 11" SPAL Fans

Dimensions:
19.5" tall x 23.25" wide x 3/4" thick (off core)

Attributes:
All-Aluminum Fan Shroud
Cut-outs to accept two 11" SPAL or 12" Pro-series fans
Designed Exclusively for Two Electric Fans (sold separately)
Made in the U.S.A

Compatible with:
Champion CC370 and American Eagle AE370.



This part applies to the following cars:
370MCFS11F

370MCFS11F

370MCFS11F
Click to enlarge image(s)

Ledfoot Racing Aluminum Fan Shroud for Two 11" SPAL Fans
New Design: Just added (4) Rubber flaps for better air flow


Dimensions:
19.5" tall x 23.25" wide x 3/4" thick (off core)

Attributes:
All-Aluminum Fan Shroud
Cut-outs to accept two 11" SPAL or 12" Pro-series fans
Designed Exclusively for Two Electric Fans (sold separately)
Made in the U.S.A

Compatible with:
Champion MC370 ONLY



This part applies to the following cars:
