Chevrolet Corvette Champion Radiator (66-68)

CC615

CC615

CC615
Click to enlarge image(s)

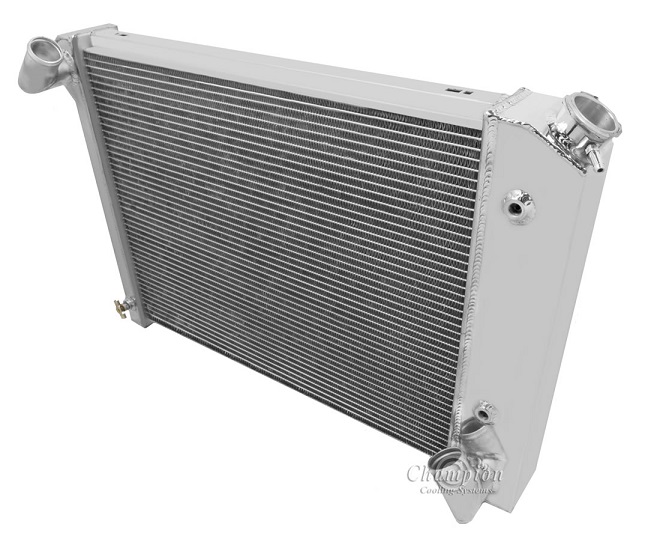

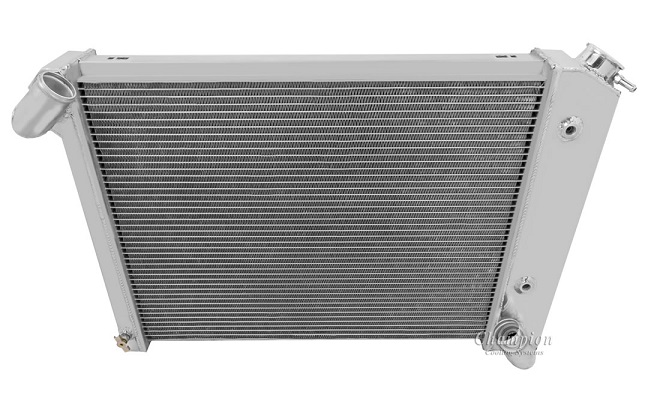

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp
Only fits the 4-Row saddle mounts
Automatic Transmissions ONLY

Radiator Dimensions:
Total: 19.25" tall (with cap) x 28" wide
Core: 17.25" tall x 22.75" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.25" thick
Tubes: 0.63" thick

Saddle Mounted

Radiator Cap Included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)


Compatible With
Chevrolet Corvette 1966-1968 (7.0L/427 V8, 454ci "big block" V8))
MC615

MC615

MC615
Click to enlarge image(s)
Champion All Aluminum Radiator
4-Row Core | Cools up to 650hp
Only fits the 4-Row saddle mounts
Automatic Transmissions ONLY

Radiator Dimensions:
Total: 19.25" tall (with cap) x 29" wide
Core: 17" tall x 22.5" wide x 2.8" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.25" thick
Tubes: 0.63" thick

Saddle Mounted

Radiator Cap included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)


Compatible With
Chevrolet Corvette 1966-1968 (7.0L/427ci V8)
