Ford Bronco 6 Cyl (66-77)

CC6677

CC6677

CC6677
Click to enlarge image(s)

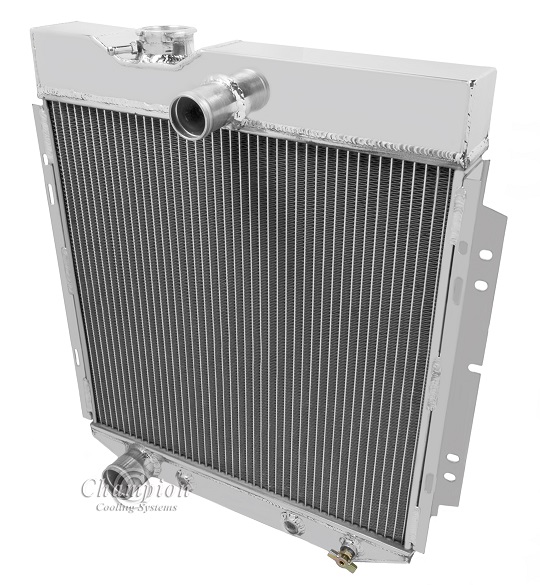

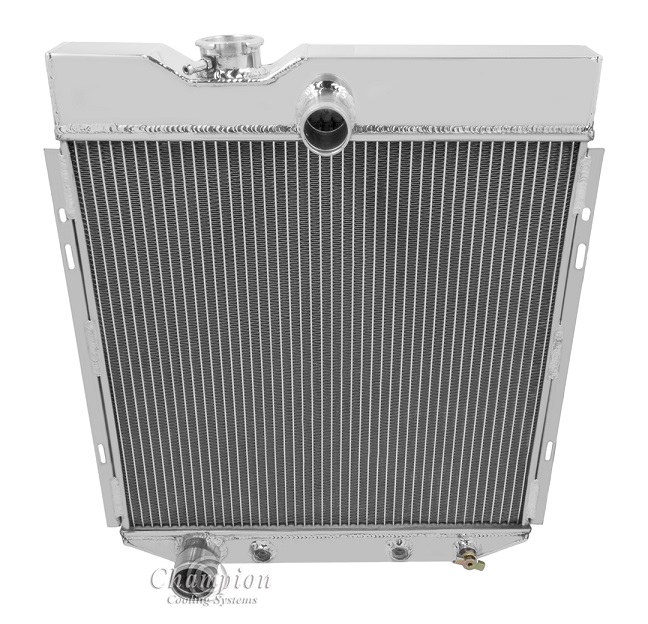

Champion All Aluminum Radiator
3-Row Core | Cools up to 450hp

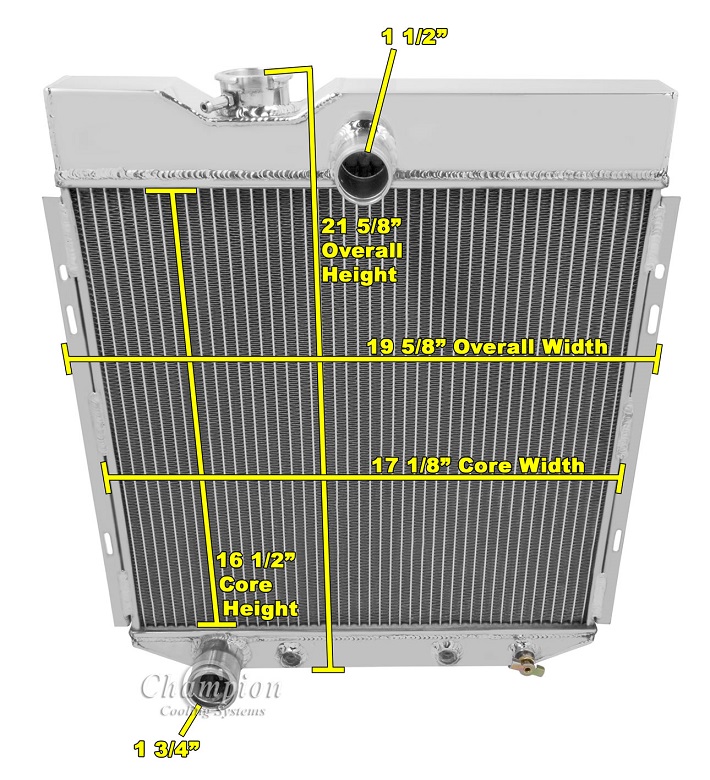

Radiator Dimensions:
Total: 21" tall (21.5" with cap) x 19.63" wide (including brackets)
Core: 16.5" tall x 17" wide x 2" thick
Inlet: 1.5" Center
Outlet: 1.75" driver side
Tanks: 2.75" thick
Tubes: 0.63" thick

Bracket Mounted

Radiator Cap included
Transmission Cooler included (1/8-27npt)
Aluminum Fan Shroud is also available

When using electric fans:
One 16" fan recommended for this core size (sold separately)
Fan shipping is FREE when purchased with a radiator

note: If buying our 16" fan make sure you have room for the 3.5" thickness



Compatible With
Ford Falcon 1960-1965 (5.0L/302ci V8, 351ci V8, 390ci V8, 428ci V8, 429ci V8)
Ford Mustang 1965-1966 (5.0L/302ci V8, 351ci V8, 390ci V8, 428ci V8, 429ci V8)
Ford Ranchero 1960-1965 (5.0L/302ci V8, 351ci V8, 390ci V8, 428ci V8, 429ci V8)
Mercury Comet 1961-1965 (5.0L/302ci V8, 351ci V8, 390ci V8, 428ci V8, 429ci V8)
