(65-69) Datsun Fairlady / Roadster without fill neck

EC1600

EC1600

EC1600
Click to enlarge image(s)
Champion All Aluminum Radiator
2-Row Core | Cools up to 300hp

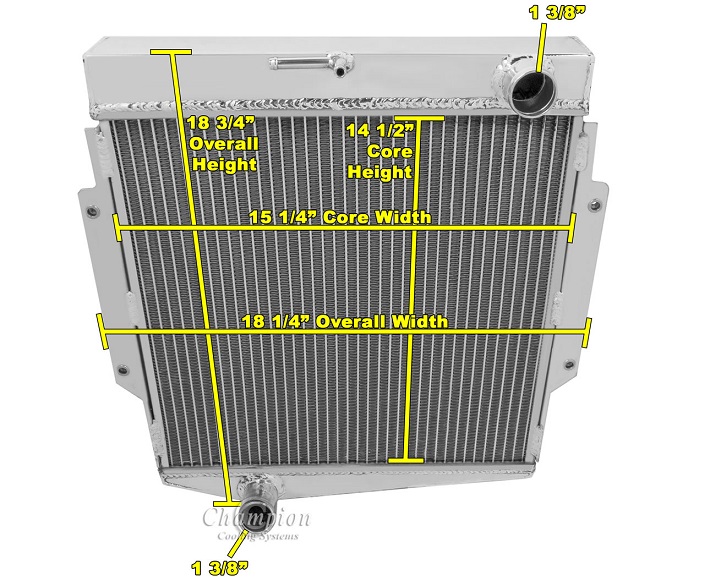

Radiator Dimensions:
Total: 18.75" tall x 18.25" wide (including brackets)
Core: 14.5" tall x 15.25" wide x 1.75" thick
Inlet: 1.38" passenger side
Outlet: 1.38" driver side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted

Radiator Cap included
Transmission Cooler NOT Included


Compatible With
Datsun Fairlady 1600 1965-1970
CC1600

CC1600

CC1600
Click to enlarge image(s)
Champion All Aluminum Radiator
3-Row Core | Cools up to 400hp

Radiator Dimensions:
Total: 18.75" tall x 18.25" wide (with brackets)
Core: 14.5" tall x 15.25" wide x 2" thick
Inlet: 1.38" passenger side
Outlet: 1.38" driver side
Tanks: 2.75" deep
Tubes: 0.63" thick

Bracket Mounted

Transmission Cooler NOT Included
16 lb. Radiator Cap included


Compatible With
Datsun Fairlady 1600 1965-1970
