Mustang (67-70) Driver Side Outlet
Scroll down for additional options

Please note your core width and outlet position for your Mustang. The 20" Core Radiator is listed at the top and the 24" at the bottom.

We also carry Aluminum Shrouds with Fan(s) for these radiators. Please call if you need any assistance.

AE339

AE339

AE339
Click to enlarge image(s)

American Eagle All Aluminum Radiator
2-Row Core: 1" Tubes | Cools up to 550hp

Radiator Dimensions:
Total: 21" (22" with cap) x 22.25" wide (including brackets)
Core: 16.5" tall x 19.5" wide x 2.2" thick
Inlet: 1.5" passenger
Outlet: 1.5" driver
Tanks: 2.5" thick
Tubes: 1" thick

Transmission Cooler included (1/8-27NPT)
16 lb. Radiator Cap included
Aluminum fan Shroud for One 16" Electric Fan is also available (sold separately)

Recommended electric fans:
One 16" Electric Cooling Fan is recommended for this core size (sold separately)


Compatible With
Ford Mustang 1969-1970 (all engines)
Ford Macrick 1970-1977 (all engines)
Ford Falcon 1966-1970 (all engines)
Ford Torino 1968-1969 (all engines)
Ford Fairlane 1963-1969 (all engines)
Mercury Comet 1966-1968 (all engines)
Mercury Comet 1971-1973 (all engines)
Mercury Cougar/XR7 1970 (all engines)
AE379

AE379

AE379
Click to enlarge image(s)

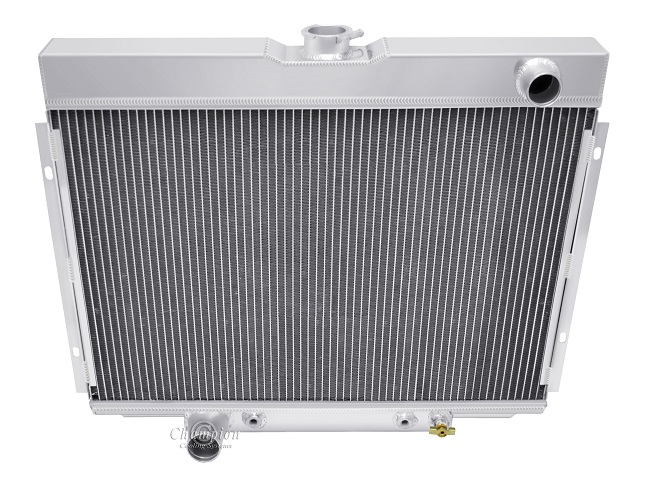

American Eagle All Aluminum Radiator
2-Row Core | Cools up to 650hp | 1" Thick Tubes
Usually For Big Blocks

Radiator Dimensions:
Total: 21" tall (22" with cap) x 25.75" wide (with brackets)
Core: 16.5" tall x 24.25" wide x 2.1" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 1" thick

Saddle or Bracket Mounted

16lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also available (sold separately)

When using electric fans (sold separately):
One 16" or two 12" Electric fans recommended for this core size



Compatible With
Ford Fairlane 1967 (390ci V8)
Ford Fairlane1968-1969 (390ci V8, 429ci V8)
Ford Mustang 1967-1968 (390ci V8)
Ford Mustang 1969-1970 (390ci, 428ci, 429ci V8)
Ford Ranchero 1967 (390ci V8)
Ford Ranchero 1968-1969 (390ci, 429ci V8)
Mercury Cougar/XR7 1968 (390ci V8)
Mercury Cougar/XR7 1969 (390ci, 428ci V8)
Mercury Cougar/XR7 1970 (428ci, 429ci V8)
Ford Torino 1968-1969 (428ci V8)
AE379-379FS11SP

AE379-379FS11SP

AE379-379FS11SP
Click to enlarge image(s)

American Eagle Aluminum Radiator Plus Ledfoot Racing
Aluminum Shroud
& Two SPAL-1500 11" Electric Fans
(We no longer recomend the Pro-series fans for this combo)

2-Row Core; 1" Thick Tubes | Cools up to 650hp
Usually For Big Blocks

Radiator Dimensions:
Total: 21" tall (22" with cap) x 25.75" wide (including brackets)
Core: 16.5" tall x 24.25" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 1" thick
Total Thickness: 5.5" to back of motors, 4.25" between motors

Saddle or Bracket Mounted

16 lb. Radiator Cap Included
Transmission Cooler Included (1/8-27NPT)



Specifications
Ford Fairlane 1967 (390ci V8)
Ford Fairlane1968-1969 (390ci V8, 429ci V8)
Ford Mustang 1967-1968 (390ci, 429ci V8)
Ford Mustang 1969-1970 (390ci, 428ci, 429ci V8)
Ford Ranchero 1967 (390ci V8)
Ford Ranchero 1968-1969 (390ci, 429ci V8)
Mercury Cougar/XR7 1968 (390ci V8)
Mercury Cougar/XR7 1969 (390ci, 428ci V8)
Mercury Cougar/XR7 1970 (428ci, 429ci V8)
Ford Torino 1968-1969 (428ci V8)
379FS11

379FS11

379FS11
Click to enlarge image(s)

Ledfoot Racing Aluminum Fan Shroud for Two 11" SPAL Fans

Dimensions:
25 1/2" wide x 16 1/8" tall

Attributes:
All-Aluminum Fan Shroud
Cut-outs to accept two 11" SPAL or 12" Pro-series fans
Designed Exclusively for Two Electric Fans (sold separately)
Made in the U.S.A

Compatible with:
Champion EC379, CC379, MC379, and American Eagle AE379. Will also fit OEM radiator.
