F-Series Diesel (83-94)
AE1165

AE1165

AE1165
Click to enlarge image(s)
American Eagle All Aluminum Radiator
2-Row Core: 1" Thick Tubes
Cools up to 750hp

Radiator Dimensions:
Total: 30.88" tall (with cap) x 33.75" wide (with brackets)
Core: 23.75" tall x 31.13" wide x 2.25" thick
Inlet: 1.75" passenger side
Outlet: 2” Driver side
Tanks: 2.75" thick
Tubes: 1" thick

Bracket Mounted

16 lb. Radiator Cap included
Transmission Cooler included ( M22 x 1.5)

When using electric fans:
Two 16" Electric fans recommended for this core size (sold separately)

Shipping is higher for this oversized item


Compatible With
F-Series Pickups 1983-1994 6.9L/7.3L V8
AE1165-1165FS16

AE1165-1165FS16

AE1165-1165FS16
Click to enlarge image(s)

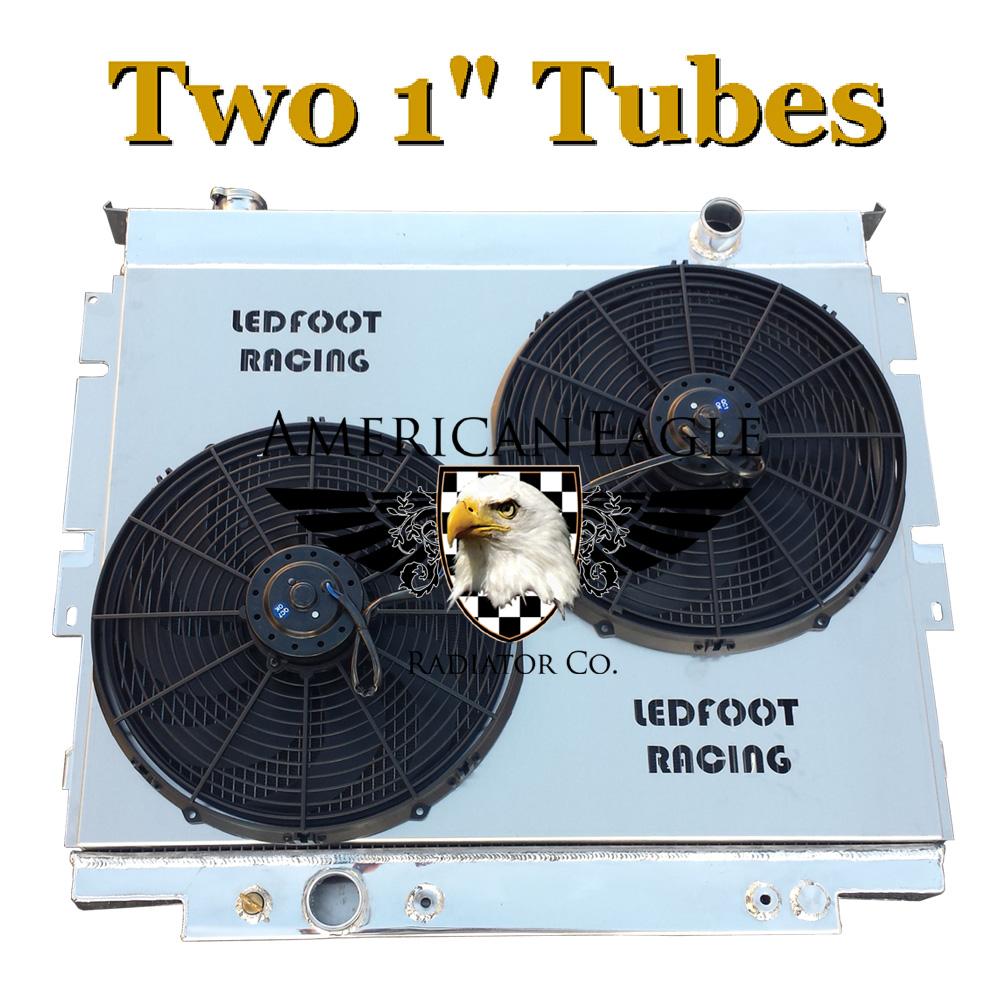

All Aluminum American Eagle Radiator
Plus Ledfoot Racing Aluminum Shroud and two 16" Fans

2-Row Core | Cools up to 700hp

Radiator Dimensions:
Total: 30.88" tall (with cap) x 33.75" wide (including brackets)
Core: 20.25" tall x 30.25" wide x 2.2" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 2.75" thick
Tubes: 1" thick

Bracket Mounted

16 lb. Radiator Cap included
Transmission Cooler included ( M22 x 1.5)

Shipping is higher for this oversized item


Compatible With
Ford F-Series Pickups 1983-1994 (6.9L V8, 7.3L V8)
1165FS16

1165FS16

1165FS16
Click to enlarge image(s)

Ledfoot Racing Aluminum Fan Shroud for Two 16" Electric Fans

Dimensions:
23.375" tall x 33.75" wide

Attributes:
All-Aluminum Fan Shroud
Cut-outs to accept two 16" electric fans
Designed Exclusively for Two Electric Fans (sold separately)
Made in the U.S.A

Compatible with:
Champion CC1165, MC1165, and American Eagle AE433.
Will also fit the stock Ford Radiator.
