Chevelle (64-67)
AE289

AE289

AE289
Click to enlarge image(s)

American Eagle All Aluminum Radiator
2-Row Core: 1" Tubes | Cools up to 650hp

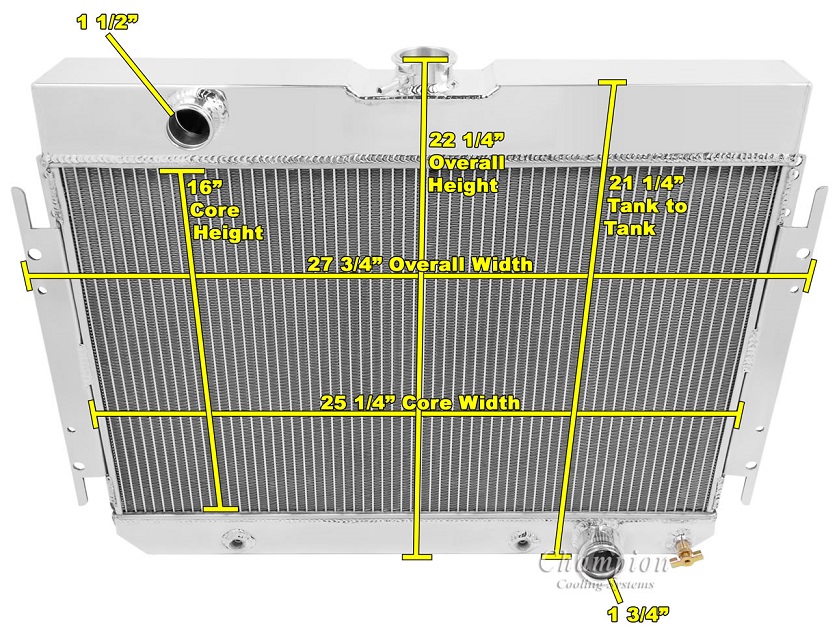

Radiator Dimensions:
Overall: 21.75" tall x 28" wide (including brackets)
Core: 16.13" tall x 25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 1" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud for One 16" Electric fan or 2-12" Electric fans is also available (sold separately)

Recommended electric fans:
One 16" Electric fan or two 12" Electric fans recommended for this core size (sold separately)



Compatible With
Chevrolet Chevelle 1964-1967 (283ci, 396ci V8)
Chevrolet Caprice 1966 (283ci, 327ci V8)
Chevrolet Caprice 1967-1968 (4.1L I6, 283ci, 327ci V8)
Chevrolet Impala 1963-1965 (3.8L I6, 283ci, 327ci V8)
Chevrolet Impala 1966-1968 (4.1L I6, 283ci, 327ci V8)
Chevrolet Biscayne 1963-1965 (3.8L I6, 283ci, 327ci V8)
Chevrolet Biscayne 1966-1968 (4.1L I6, 283ci, 327ci V8)
Chevrolet Bel-Air 1963-1965 (3.8L I6, 283ci, 327ci V8)
Chevrolet Bel-Air 1966 (4.1L I6, 238ci, 327ci V8)
Chevrolet Bel-Air 1967-1968 (4.1L I6, 283ci, 327ci V8)
Chevrolet El Camino 1964-1967 (all engines)
AE289-289FS16

AE289-289FS16

AE289-289FS16
Click to enlarge image(s)

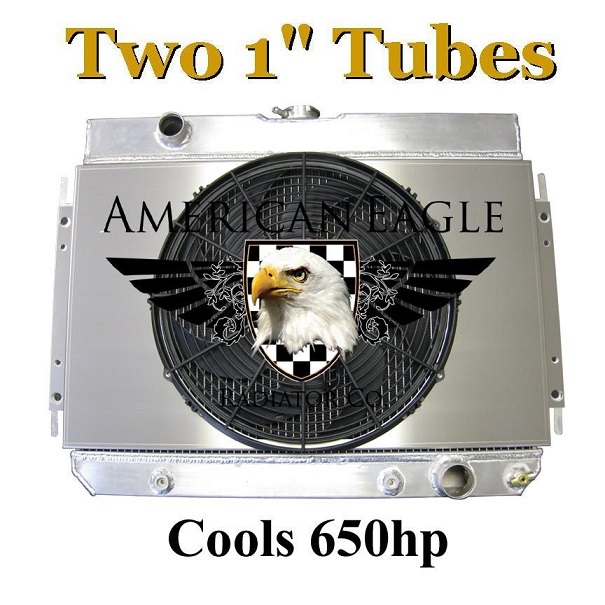

All Aluminum American Eagle Radiator
Plus Ledfoot Racing Aluminum Shroud and 16" cooling fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor
2-Row Core: 1" Thick Tubes | Cools up to 650hp

Radiator Dimensions:
Overall: 21.75" tall x 28" wide (including brackets)
Core: 16.13" tall x 25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 1" thick

Total Thickness: 6.87", Thinner fans available

Bracket Mounted

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)



Compatible With
Chevy Chevelle 1964-1967 (283ci, 396ci V8)
Chevy Caprice 1966 (283ci, 327ci V8)
Chevy Caprice 1967-1968 (4.1L I6, 283ci, 327ci V8)
Chevy Impala 1963-1965 (3.8L I6, 283ci, 327ci V8)
Chevy Impala 1966-1968 (4.1L I6, 283ci, 327ci V8)
Chevy Biscayne 1963-1965 (3.8L I6, 283ci, 327ci V8)
Chevy Biscayne 1966-1968 (4.1L I6, 283ci, 327ci V8)
Chevy Bel-Air 1963-1965 (3.8L I6, 283ci, 327ci V8)
Chevy Bel-Air 1966 (4.1L I6, 238ci, 327ci V8)
Chevy Bel-Air 1967-1968 (4.1L I6, 283ci, 327ci V8)
Chevy El Camino 1964-1967 (all engines)
AE289-289FS12SP

AE289-289FS12SP

AE289-289FS12SP
Click to enlarge image(s)

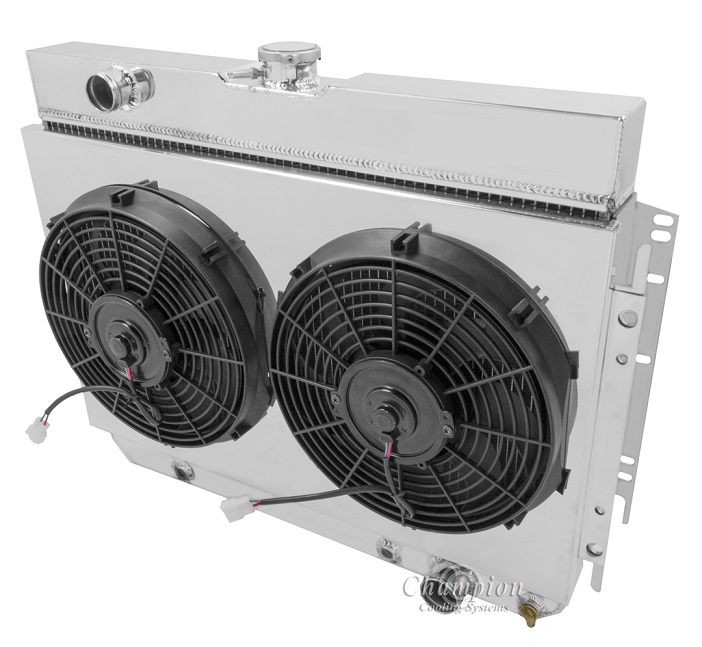

American Eagle All Aluminum Radiator
Plus Ledfoot Racing Shroud & 2-12" SPAL 1522 Fans
2-Row Core 1" tubes | Cools up to 700hp

Radiator Dimensions:
Total: 21.75" tall x 28" wide (with brackets)
Core: 16.13” tall x 25” wide x 2.25" deep
Inlet: 1.5” driver side
Outlet: 1.75” passenger side
Tanks: 2.75” thick
Tubes: 1" thick

Total Thickness: 5.87" to back of fans, 4.63" at Center

Bracket Mounted

Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
Polished Champion 16 lb Radiator Cap included (Pictured Above)


Compatible With
Chevy Chevelle 1964-1967 (283ci V8, 396ci V80
Chevy Caprice 1966 (283ci V8, 327ci V8)
Chevy Caprice 1967-1968 (4.1L I6, 283ci V8, 327ci V8)
Chevy Impala 1963-1965 (3.8L I6, 283ci V8, 327ci V8)
Chevy Impala 1966-1968 (4.1L I6, 283ci V8, 327ci V8)
Chevy Biscayne 1963-1965 (3.8L I6, 283ci V8, 327ci V8)
Chevy Biscayne 1966-1968 (4.1L I6, 283ci V8, 327ci V8)
Chevy Bel Air 1963-1965 (3.8L I6, 283ci V8, 327ci V8)
Chevy Bel Air 1966 (4.1L I6, 283ci V8, 327ci V8)
Chevy Bel Air 1967-1968 (4.1L I6, 283ci 283ci V8, 327ci V8)
Chevy El Camino 1964-1967 (all engines)
