Buick Skylark Champion radiator (62-63)

CC6263

CC6263

CC6263
Click to enlarge image(s)

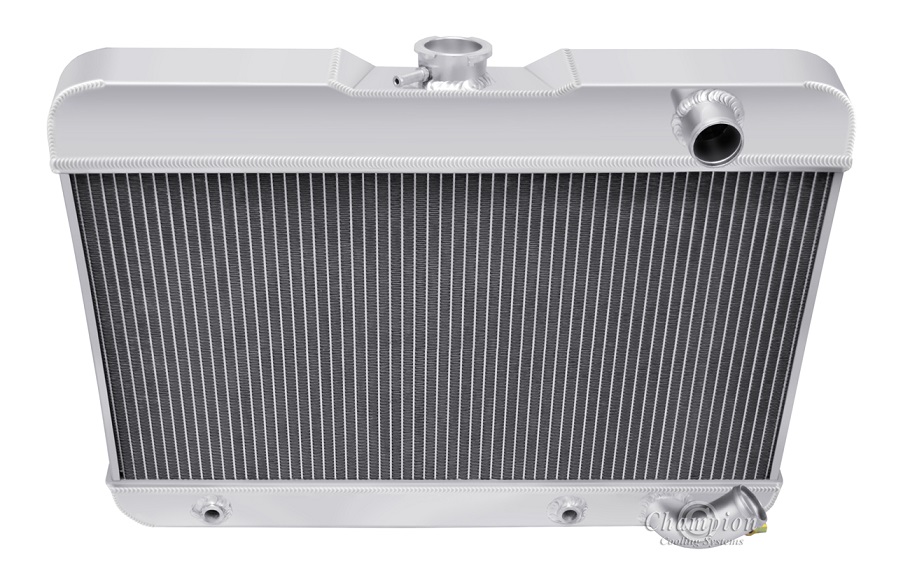

Champion All Aluminum Radiator
3-Row Core | Cools up to 400hp

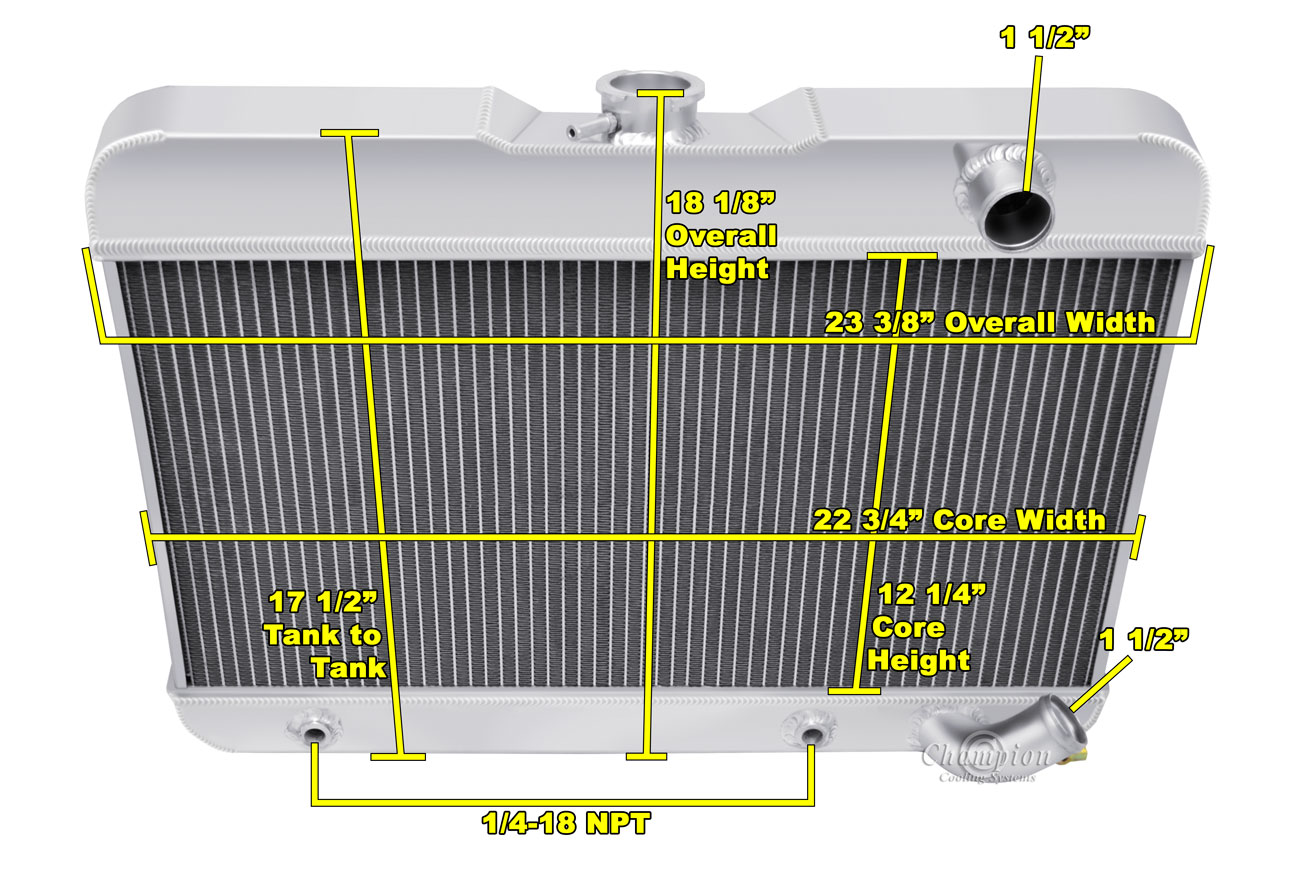

Radiator Dimensions:
Total: 18.13" tall  x 23.38" wide
Core: 12.25" tall x 22.75" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.5" passenger side
Tanks: 2.38" thick (top) / 2.38" thick (bottom)
Tubes: 0.63" thick

Saddle Mounted

Radiator Cap Included
Transmission Cooler Included (1/4-18NPT)

When using electric fans:
 One 12" electric fan recommended for this core size (sold separately)



Compatible With
1962 - 1963 Buick Skylark 3.5L 215ci V8
1962 - 1963 Buick Special 3.5L 215ci V8
CC1649

CC1649

CC1649
Click to enlarge image(s)
Champion All Aluminum Radiator
3-Row Core | Cools up to 500hp

Radiator Dimensions:
Total: 18.63" tall x 23.63" wide (with cap) x 2.5" thick
Core: 12.38" tall x 23" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

16 lb. Radiator cap included
Transmission Cooler included (1/2"-20 Straight Thread, inverted flare)


Compatible With
Buick Skylark 1962-1963 (3.2L/198ci V6 and 3.5L/215ci V8)
