Mustang (64-66) Radiator

Ford Mustang Radiator and Shroud combo (64-66)

AE259

AE259

AE259
Click to enlarge image(s)

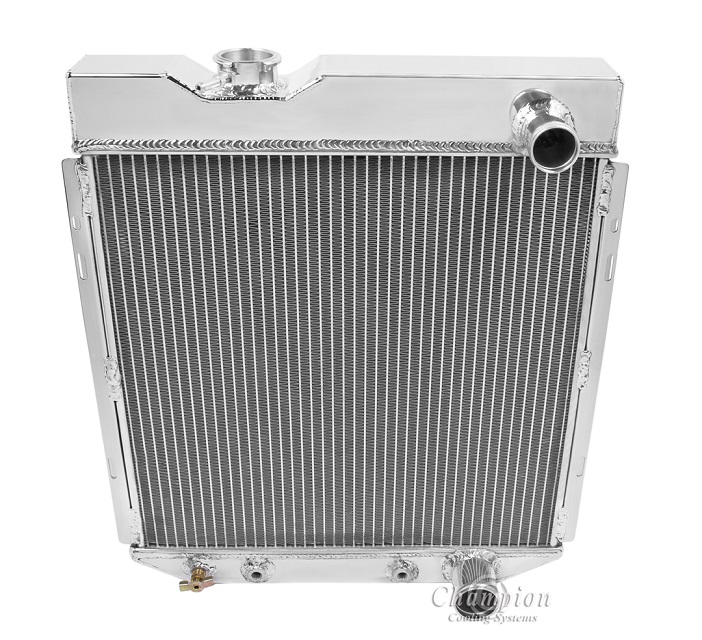

American Eagle All Aluminum Radiator
2-Row Core 1" Tubes | Cools up to 450hp

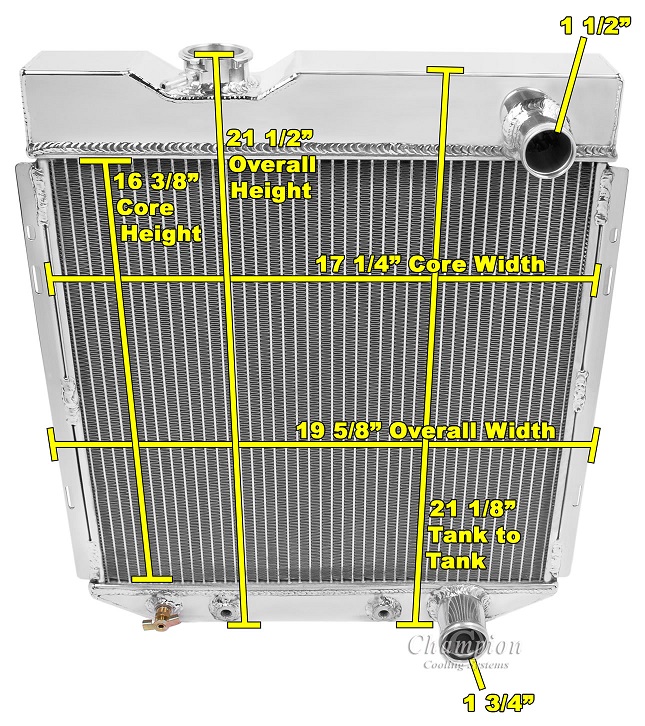

Radiator Dimensions:
Total: 21" tall (21.5" with cap) x 19.63" wide (with brackets)
Core: 16.5" tall x 17" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.75"
Tubes: 1" thick

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/8-27NPT)
Aluminum Fan Shroud for One 16" Electric Fan is also available (sold separately)

Recommended electric fans:
One 16" electric fan recommended for this core size. (sold separately)

Note: When buying our 16" fan, make sure there's room for the 3.5" Fan thickness



Compatible With
Ford Falcon 1965 (3.3L I6, 289ci V8)
Ford Mustang 1965-1966 (289ci V8)
Mercury Comet 1964-1965 (289ci V8)
Ford Ranchero 1960-1965 (289ci V8)
AE259-259FS16SP

AE259-259FS16SP

AE259-259FS16SP
Click to enlarge image(s)

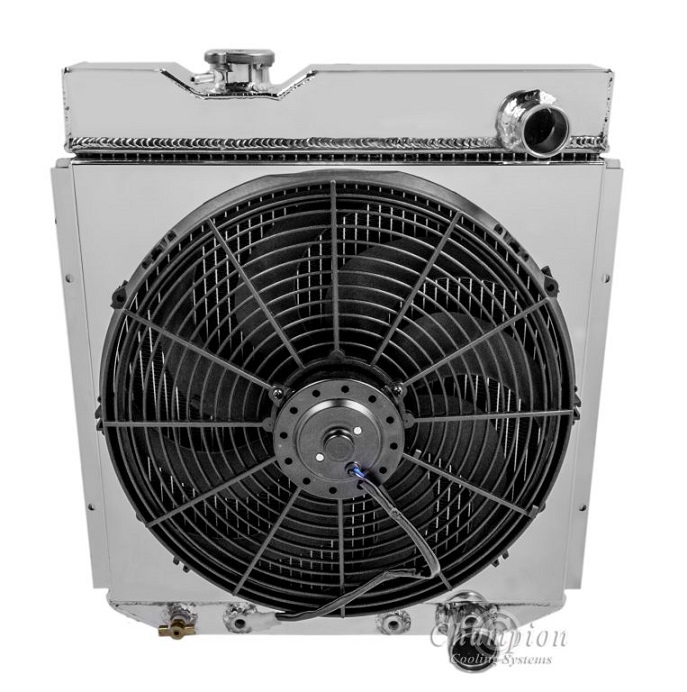

American Eagle All Aluminum Radiator
Ledfoot Racing Shroud & 16" SPAL Medium Profile Fan
The SPAL fan should solve the thickness issues in front
of your water pump. Please confirm it will fit.

2-Row Core 1" Tubes | Cools up to 450hp

Radiator Dimensions:
Total: 21" tall (21.5" with cap) x 19.63" wide (with brackets)
Core: 16.5" tall x 17" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.75"
Tubes: 1" thick

Total Thickness: 5.25" to back of fan

Bracket Mounted

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler Included (1/8-27NPT)



Compatible With
Ford Falcon 1965 (3.3L I6, 289ci V8)
Ford Mustang 1965-1966 (289ci V8)
Mercury Comet 1964-1965 (289ci V8)
Ford Ranchero 1960-1965 (289ci V8)
