(64-78) Triumph Spitfire Champion Radiator
EC6480

EC6480

EC6480
Click to enlarge image(s)

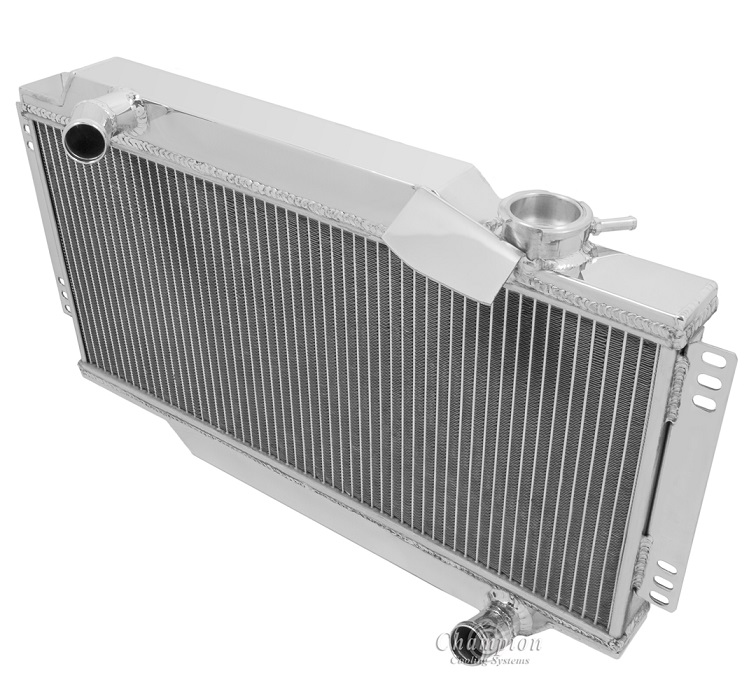

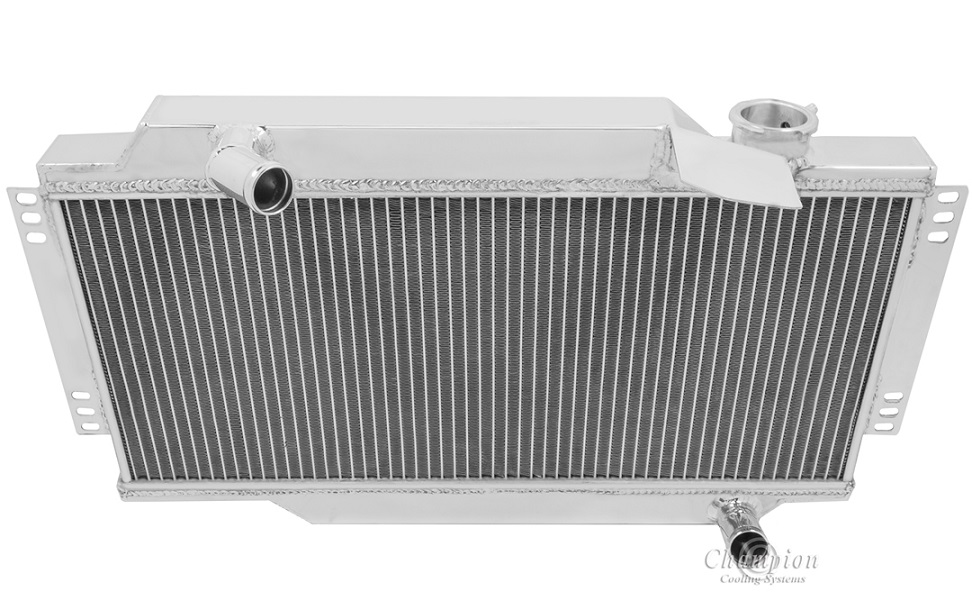

Champion All Aluminum Radiator
2-Row Core | Cools up to 325hp

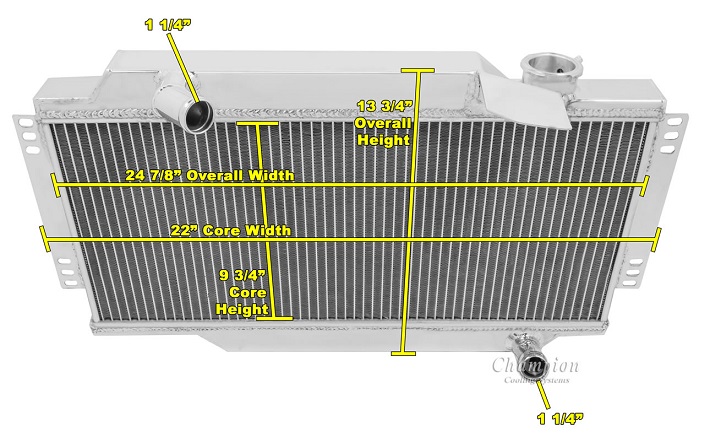

Radiator Dimensions:
Total: 13.75" tall x 24.88" wide (including brackets)
Core: 9.75" tall x 22" wide x 1.75" thick
Inlet: 1.25" driver
Outlet: 1.25" passenger
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
No Transmission Cooler

When using electric fans:
Two 10" Electric fans recommended for this core size (sold separately)
(The fans will slightly overlap the tanks)


Compatible With
Triumph Spitfire 1964-1978
