Road Runner (68-74) 26" Small Block Radiator

This is the 26" Core radiator call if you need the 22" Core.
Please note your inlet and outlet positions.
Call if you have any questions.

EC374-374FS12SP

EC374-374FS12SP

EC374-374FS12SP
Click to enlarge image(s)

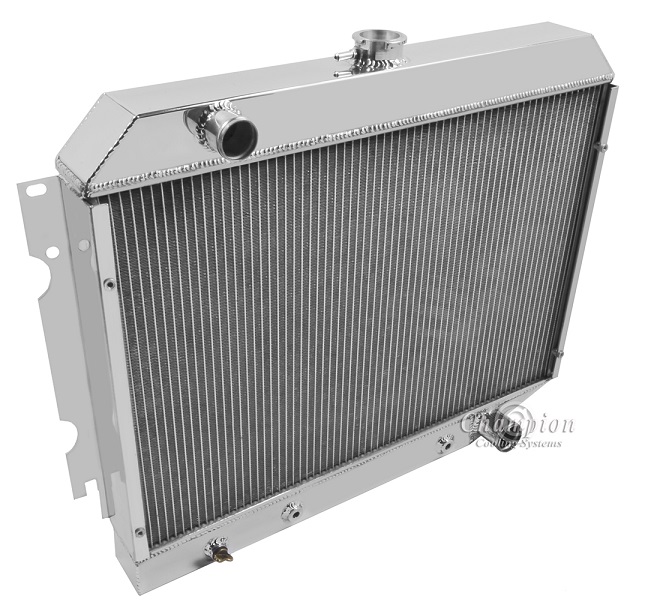

Champion All Aluminum Radiator

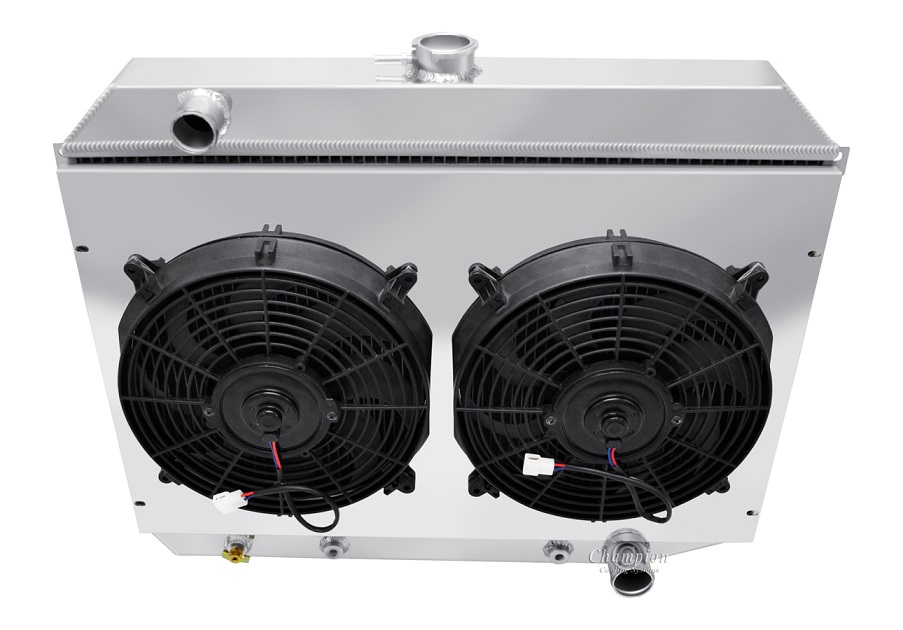

Ledfoot Racing Shroud and two 12" SPAL 1522 fans
Verify clearance for electric fan
Total thickness: 5.5" to fan motor
2-Row Core | Cools 400hp

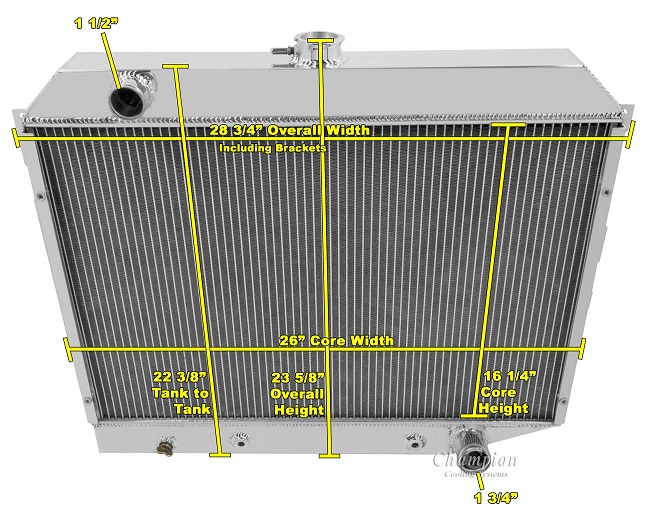

Radiator Dimensions:
Total: 22.5" tall (23.63" with Cap) x 29" wide (including brackets)
Core: 17.13" tall x 26” wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" Thick
Tubes: 0.75" thick

Bracket Mounted
No OEM Shroud support

13lb. Radiator Cap included
Transmission Cooler Included



CC374B-374FS12SP

CC374B-374FS12SP

CC374B-374FS12SP
Click to enlarge image(s)

Champion All Aluminum Radiator Plus
Ledfoot Racing Shroud
 & Two SPAL-1522 12" Fans
3-Row Core | Cools up to 700hp

Radiator Dimensions:
Total: 22.5" tall (23.5" w/ Cap) x 29" wide (including brackets)
Core: 17.13" tall x 26" wide x 2.5" thick
Inlet: 1.5" driver
Outlet: 1.75" passenger
Tanks: 2.75" thick
Tubes: 0.75" thick

Total Thickness: 6" to back of fan motors
4.75" between motors where waterpump sits

Bracket Mounted
No OEM Shroud support

13lb. Radiator Cap included
Transmission Cooler included



MC374-374FS12SP

MC374-374FS12SP

MC374-374FS12SP
Click to enlarge image(s)

Champion All Aluminum Radiator Plus
Ledfoot Racing Shroud
 & Two SPAL-1522 12" Fans
(1000 more CFM than Pro-Series fans)

4-Row Core: Polished Tanks
Cools 750hp

MC374 Radiator Dimensions:
Total: 23.5" tall (w/ Cap) x 28.75" wide (including brackets)
Core: 17.13" tall x 26" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick

Bracket Mounted
No OEM Shroud support

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27 npt)



374FS12

374FS12

374FS12
Click to enlarge image(s)

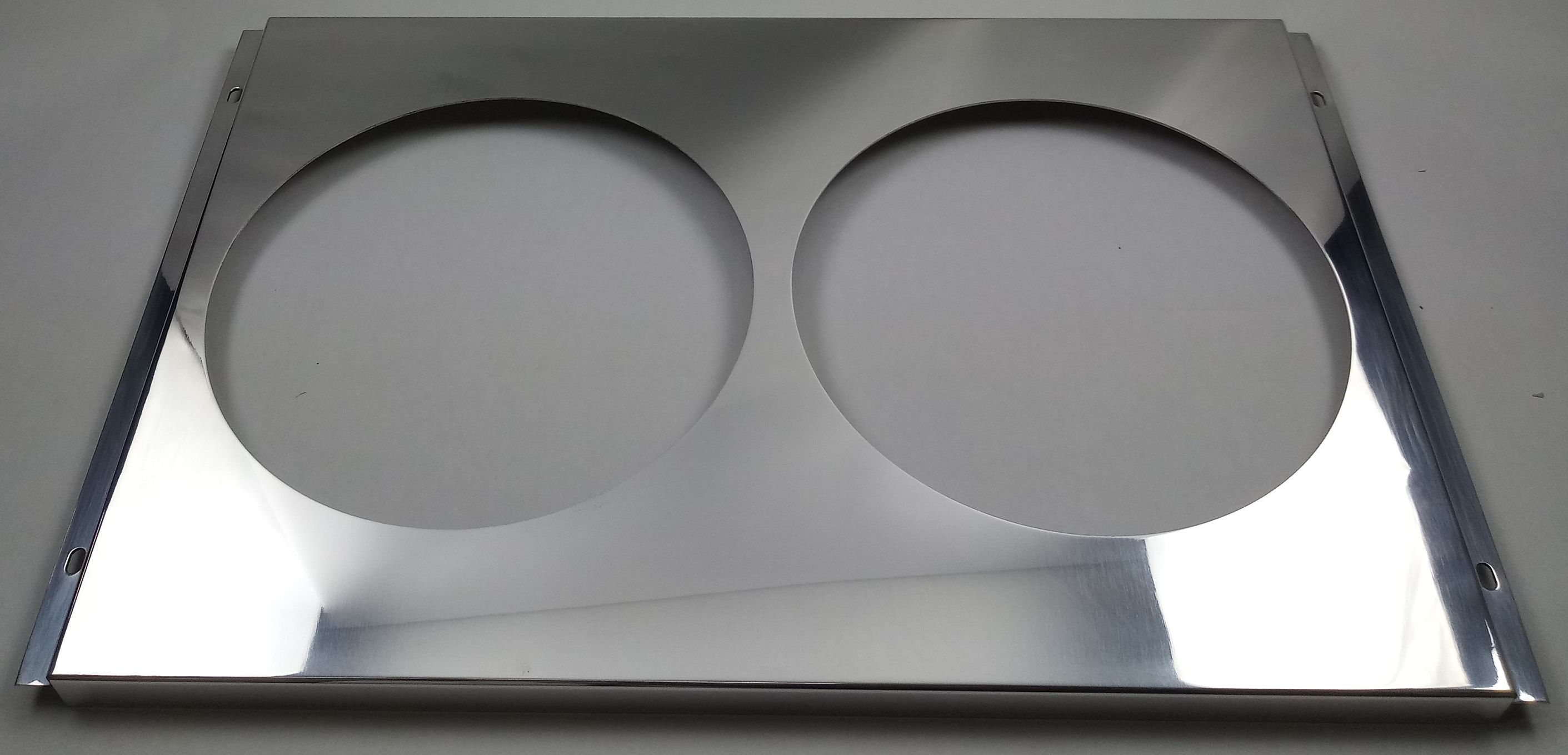

Ledfoot Racing Aluminum Fan Shroud for Two 12" Electric Fans
Radiator and fan sold separately

Dimensions:
17" tall x 26.5" wide

Attributes:
All-Aluminum Fan Shroud
Cut-outs to accept two 12" electric fans
Designed Exclusively for Two Electric Fans (sold separately)
Made in the U.S.A

Compatible with:
Champion EC374, CC374, MC374, and American Eagle AE374.



This part applies to the following cars:
374FS16

374FS16

374FS16
Click to enlarge image(s)

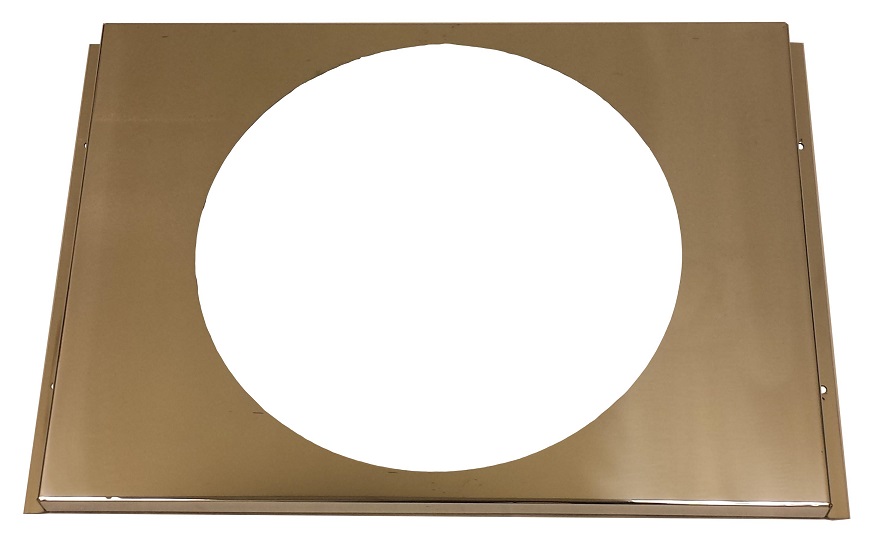

Ledfoot Racing Aluminum Fan Shroud
for One 16" Electric Fan

Radiator and fan sold separately

Dimensions:
17" tall x 26.5" wide

Attributes:
All-Aluminum Fan Shroud
Cut-outs to accept one 16" electric fan
Designed Exclusively for one Electric Fan (sold separately)
Made in the U.S.A

Compatible with:
Champion EC374, CC374, MC374, and American Eagle AE374.
