SPAL Low-Profile Series
SPAL Low Profile 10" Fan

SPAL Low Profile 10" Fan

SPAL Low Profile 10" Fan
Click to enlarge image(s)
SPAL Low Profile Series -0360
10" Cooling Fan
Straight Blade - Pull

Specifications:
A: Length 11.20"
B: Depth 2.05"
C: Width 10.59

CFM: 749

Recommended Fuse: 15 amp


SPAL Low Profile 11" Fan : Replaces many 12" fans

SPAL Low Profile 11" Fan : Replaces many 12" fans

SPAL Low Profile 11" Fan : Replaces many 12" fans
Click to enlarge image(s)
SPAL Low Profile Series -0364
11" Cooling Fan
(Same size as 12" Pro-Series fans)
Straight Blade - Pull

Specifications:
A: Length 12.20"
B: Depth 2.05"
C: Width 11.57

CFM: 808
Recommended Fuse: 15 amp


SPAL Low Profile 14" Fan

SPAL Low Profile 14" Fan

SPAL Low Profile 14" Fan
Click to enlarge image(s)
SPAL Low Profile Series -0382
14" Cooling Fan
Straight Blade - Pull

Specifications:
A: Length 15.04"
B: Depth 2.05"
C: Width 14.45"

CFM: 1038

Recommended Fuse: 15 amp

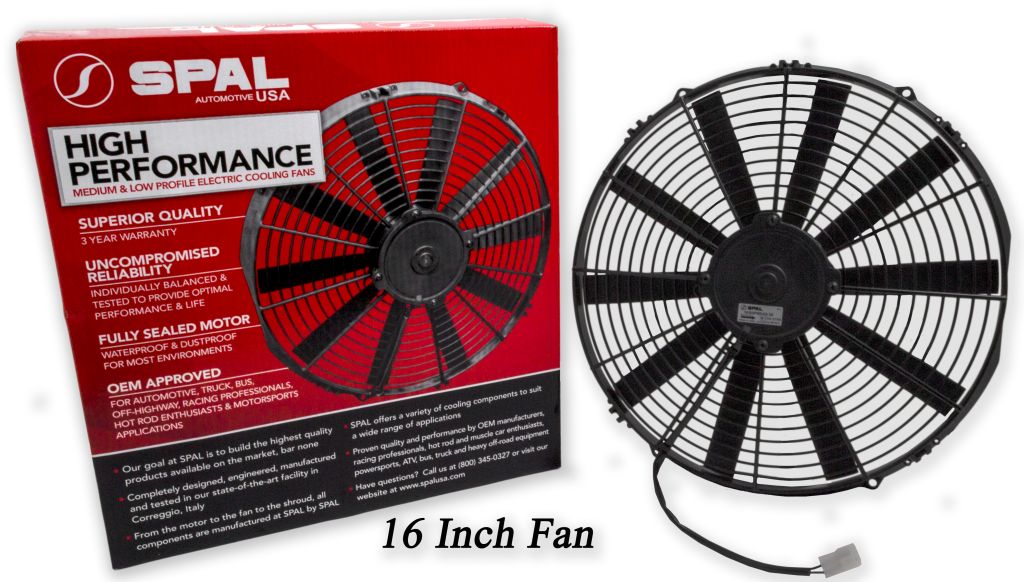

SPAL Low Profile 16" Fan

SPAL Low Profile 16" Fan

SPAL Low Profile 16" Fan
Click to enlarge image(s)

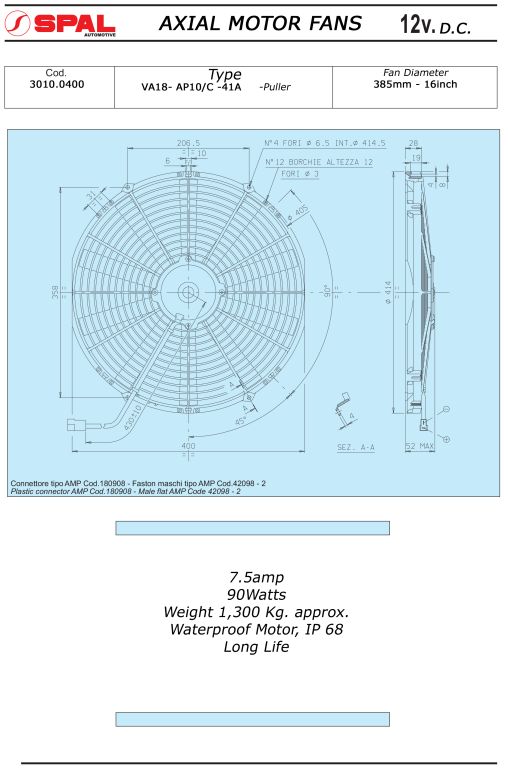

SPAL Low Profile Series -0400
16" Cooling Fan
Straight Blade - Pull

Specifications:
A: Length 16.3"
B: Depth 2.05"
C: Width 15.75"

CFM: 1298

Recommended Fuse: 15 amp
