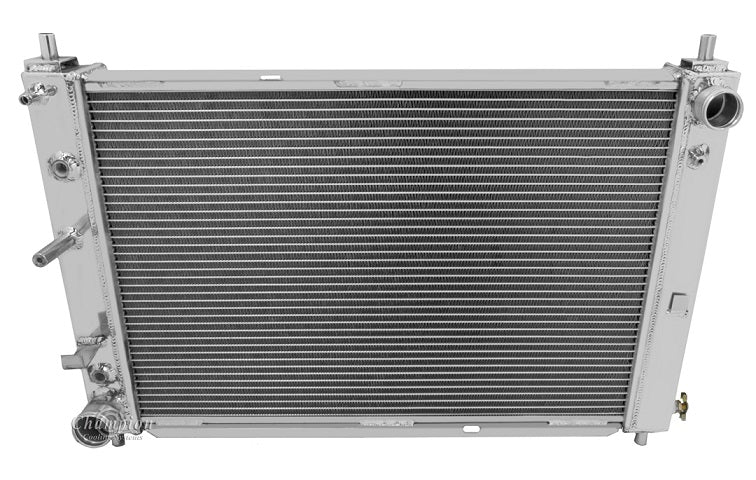

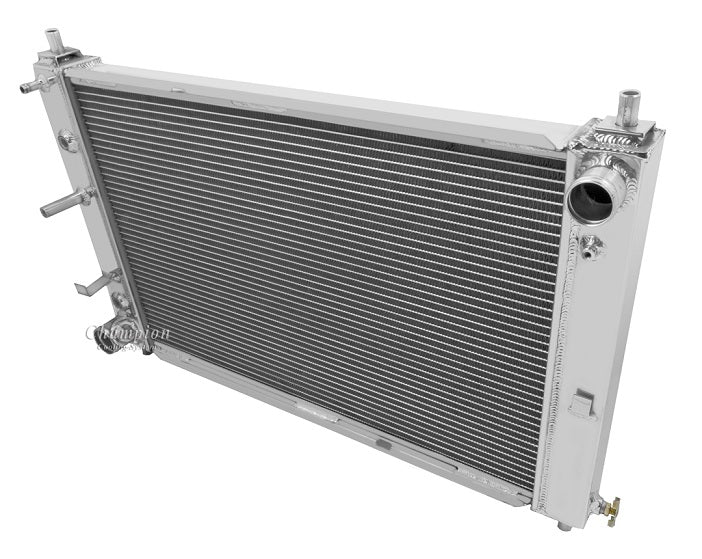

CC2139 3 Row

All Aluminum Champion Radiator
3-Row Core | Cools up to 700hp

Radiator Dimensions:
Total: 19.75" tall x 31.75" wide
Core: 16.75" tall x 25.5" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" drivers side
Tanks: 2.75" thick
Tubes: 0.63" thick

Pin Mounted

Transmission Cooler included (1/4-18npt)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
6165FS12 Very close when needing fanshroud
