CC6769 3 Row

All Aluminum Champion Radiator
3-Row Core | Cools up to 500hp

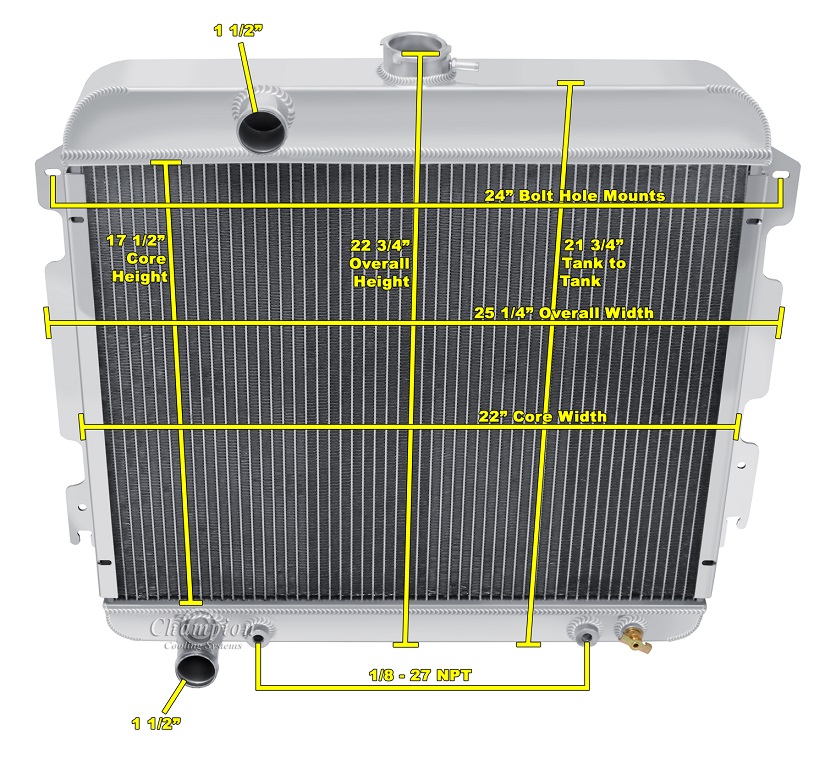

CC6769 Radiator Dimensions:
Total: 22.75" tall (with cap) x 25.25" wide (with brackets)
Core: 17.5" tall x 22" wide x 2.25" thick
Inlet: 1.5" driver
Outlet: 1.5" driver
Tanks: Upper 3.5" thick, Lower 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8" 27npt)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
