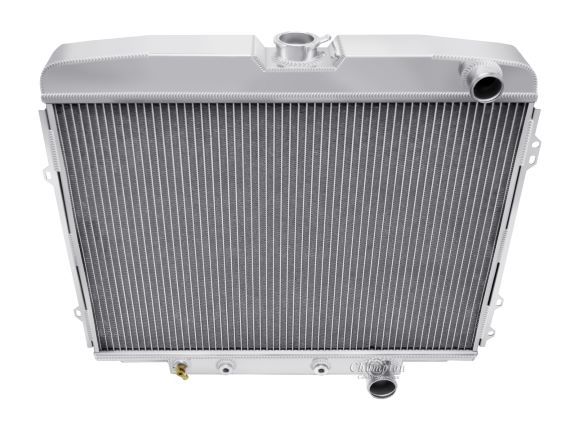

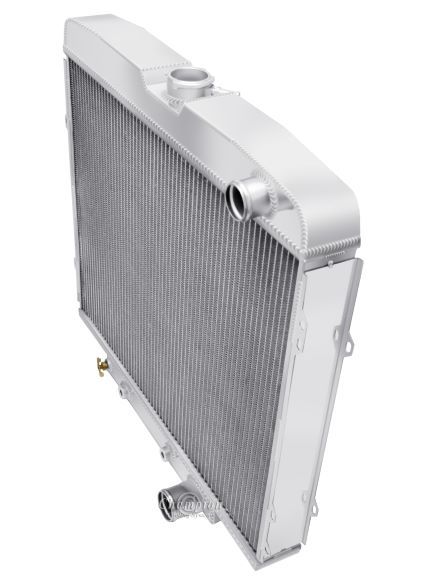

Champion All Aluminum Radiator
3-Row Core | Cools up to 600hp

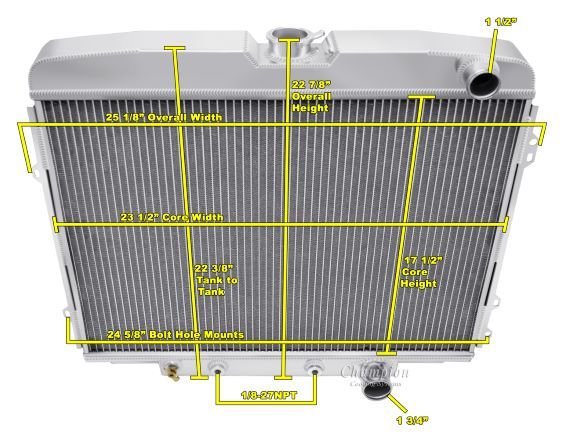

Radiator Dimensions:
Total: 22.88" tall  x 25.13" wide (with brackets)
Core: 17.5" tall x 23.5" wide x 2" thick
Inlet: 1.5" passenger
Outlet: 1.75" driver
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle or Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also available (sold separately)

When using electric fans (sold separately):
One 16" or two 12" Electric fans recommended for this core size



Compatible With
1968 - 1969 Ford Fairlane (5.0L 302ci V8, 5.8L 351ci V8)
1968 - 1969 Ford Ranchero (1.5.0L 302ci V8, 5.8L 351ci V8)
1968 - 1969 Ford Torino (5.0L 302ci V8, 5.8L 351ci V8)
Ford mustang 1969-1970 (390ci V8, 428ci V8, 429ci V8)
1968 - 1969 Mercury Comet (4.7L 289ci V8, 5.0L 302ci V8)
1968 - 1969 Mercury Cyclone (4.7L 289ci V8, 5.0L 302ci V8, 5.8L 351ci V8)
