CC161DP-161FS14
CC161DP-161FS14

CC161DP-161FS14

CC161DP-161FS14
Click to enlarge image(s)

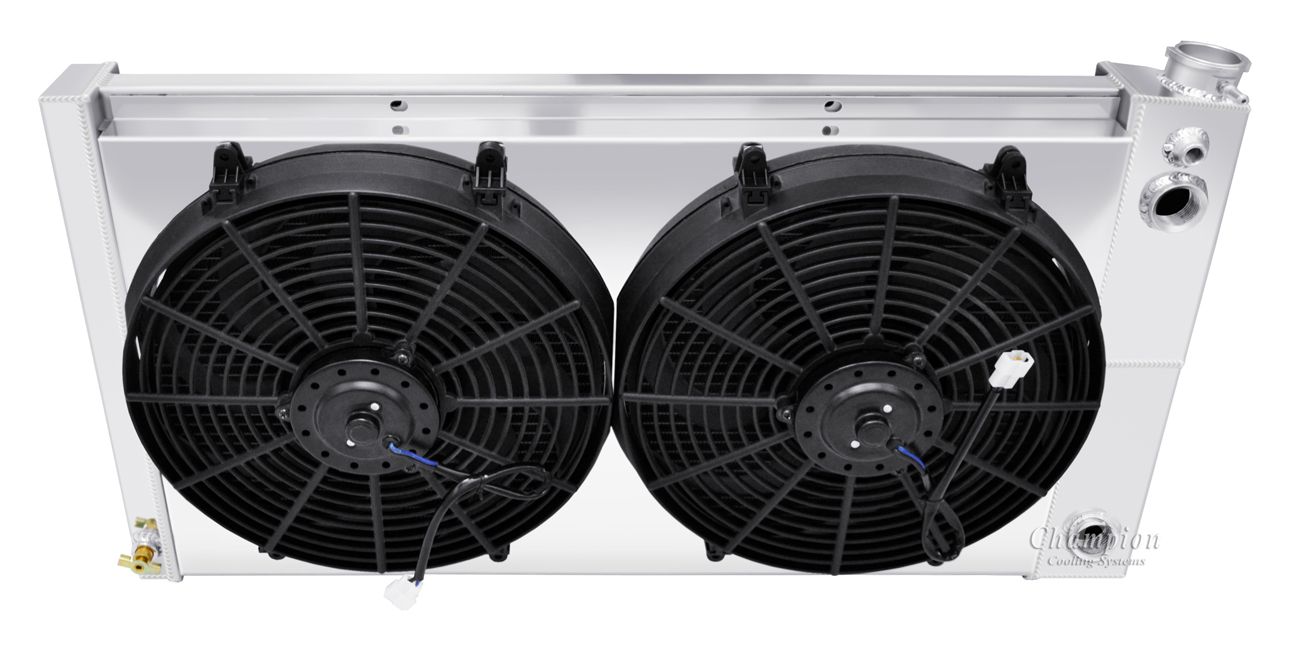

Champion All Aluminum Radiator
Dual Pass / LS Conversions

Plus Ledfoot Racing Aluminum Shroud & 2-14" Fans
Verify clearance for electric fan
You MUST Choose your billet outlets in "Popular Add-Ons"
3-Row Core | Cools up to 1000hp

Radiator Dimensions:
Total: 18.63" tall (19" with cap) x 33" wide
Core: 17" tall x 28.25" wide x 2" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Total Thickness: 6" (5" between fan motors)

Saddle Mounted

16 lb. Billet Radiator Cap included
Steam Port with 1/4" barbed fitting and plug included



Compatible with:
Buick Skylark - 1967 - 72
Buick LeSabre - 1965 - 79
Chevy Chevelle - 1968 - 77
Chevy El Camino/Cabellero - 1968-77
Chevy Monte Carlo - 1970 - 77
Olds Cutlass - 1966 - 77
