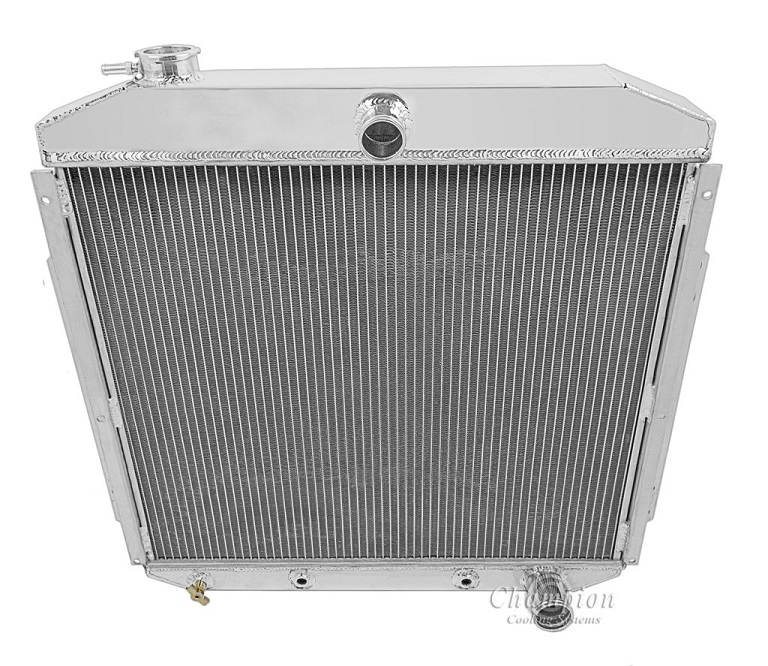

All Aluminum Champion Radiator
4-Row Core | Cools up to 750hp

Radiator Dimensions:
Total: 26.5" tall (with cap) x 26.5" wide (including brackets)
Core: 20.25" tall x 23" wide x 2.75" thick
Tanks: 3.25" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tubes: 0.75" thick
Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud is also available (sold separately)

When using electric fans:
One 16" Electric fans recommended for this core size

Compatible With
Ford Truck 1953-1956 (Chevrolet V8 conversion)
