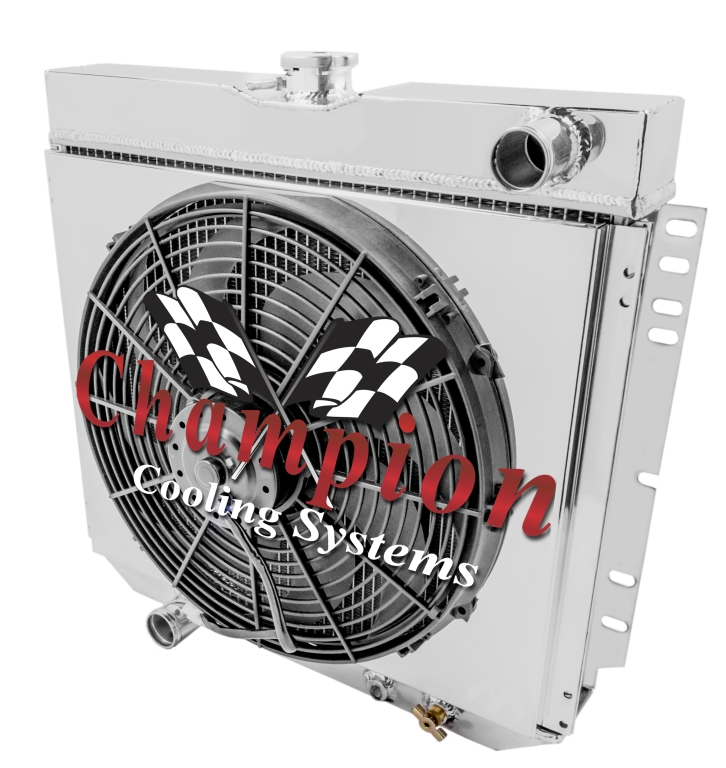

Champion All Aluminum Radiator Plus
Ledfoot Racing Shroud
 & 16" SPAL Medium Profile Fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below

Cools 650hp

Radiator Dimensions:
Total: 20.38" tall (21" with cap) x 22.13" wide (including brackets)
Core: 16.38" tall x 20.25" wide x 2.75" thick
Inlet: 1.5: passenger
Outlet: 1.5" driver
Tanks: 3.38" thick
Tubes: 0.63" thick
Total Thickness: 6" to back of fan

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/8-27npt)
