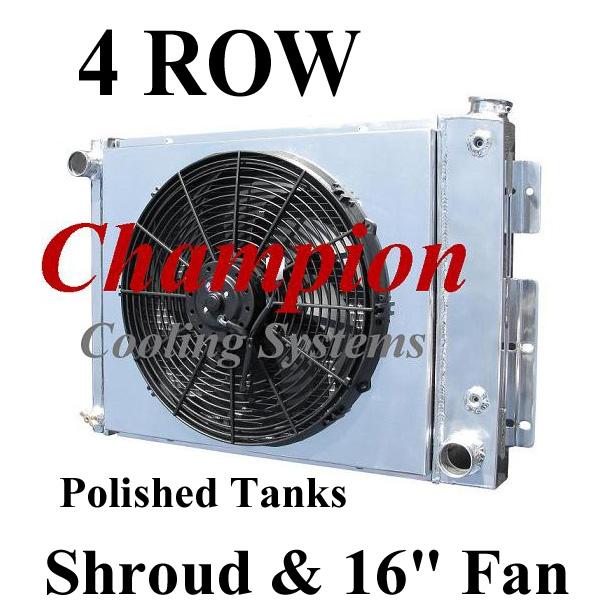

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 7" to fan motor

4-Row Core: Polished tanks
Cools up to 600hp

Radiator Dimensions:
Core: 17" tall x 20.75" wide x 2.75" thick
Total: 19.25" tall (19.5" with cap) x 28.75" wide (including brackets)
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
