(53-56) Ford Truck 3-row Champion Radiator

CC5356

CC5356

CC5356
Click to enlarge image(s)

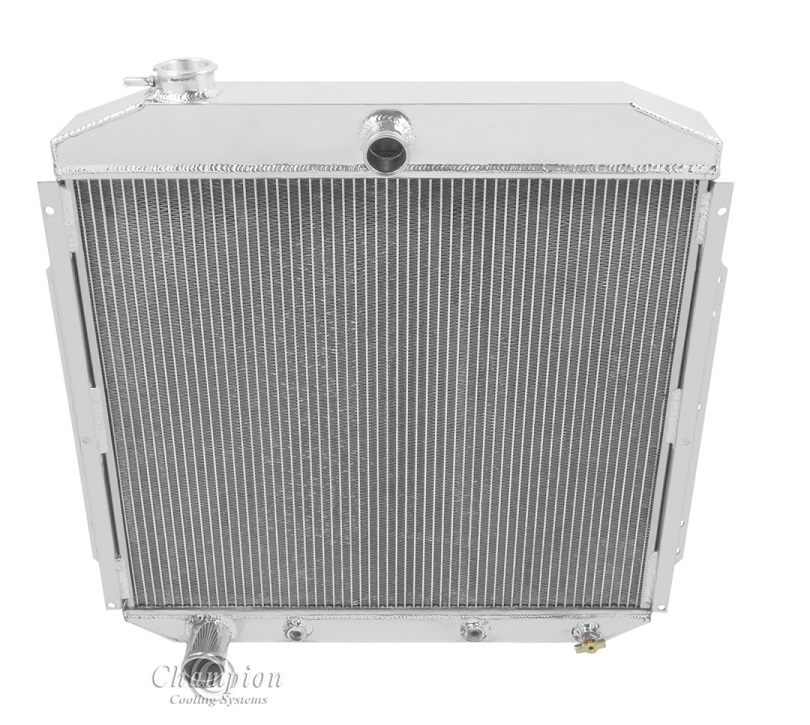

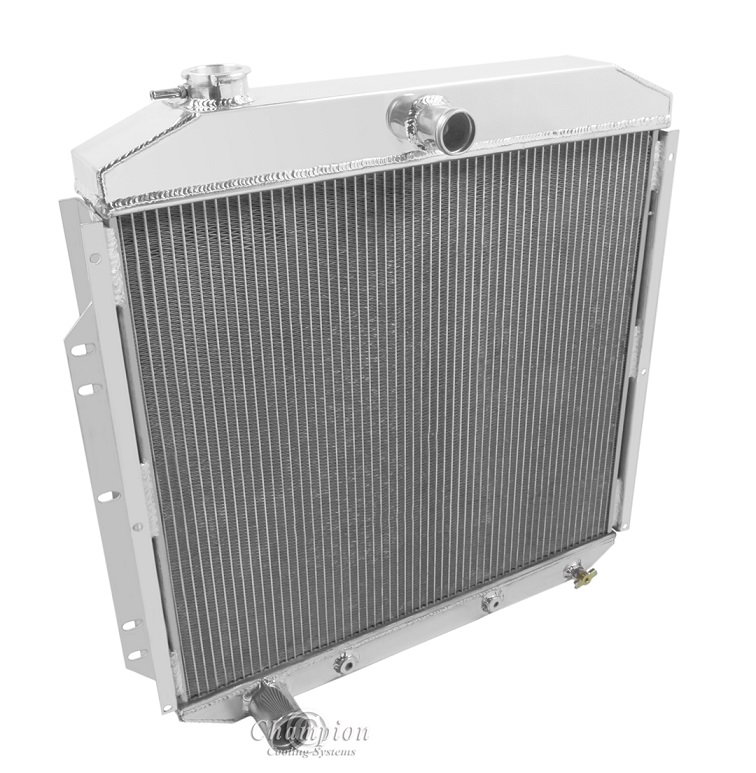

All Aluminum Champion Radiator
3-Row Core | Cools up to 650hp

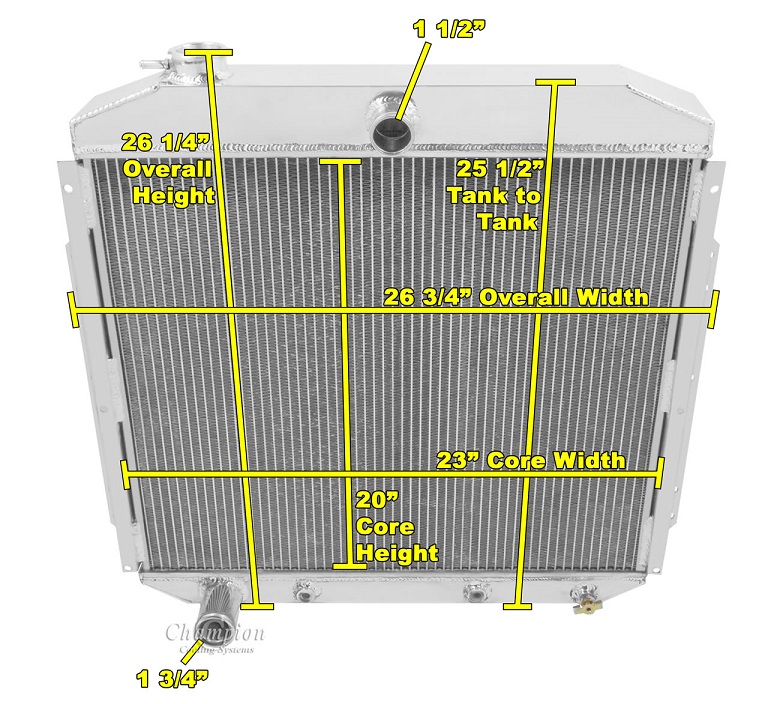

Radiator Dimensions:
Total: 26.25" tall (with cap) x 26.75" wide
Core: 20" tall x 23" wide x 2" thick
Inlet: 1.5" center
Outlet: 1.75" drivers side
Tanks: 2.75" thick
Bracket Specs: Vert - 18 1/2" Hor - 24 7/8"
Tubes: 0.63" thick

Bracket Mounted

Transmission Cooler Included (1/8-27 NPT)
13 lb. Radiator Cap included
Aluminum shroud is also available (sold separately)

When using electric fans:
One 16" Electric fans recommended for this core size (sold separately)



Compatible With
Ford Truck 1953-1956 (V6 or V8 but does NOT work on Flat Head application)
