CC259B-259FS16SP

CC259B-259FS16SP

CC259B-259FS16SP
Click to enlarge image(s)

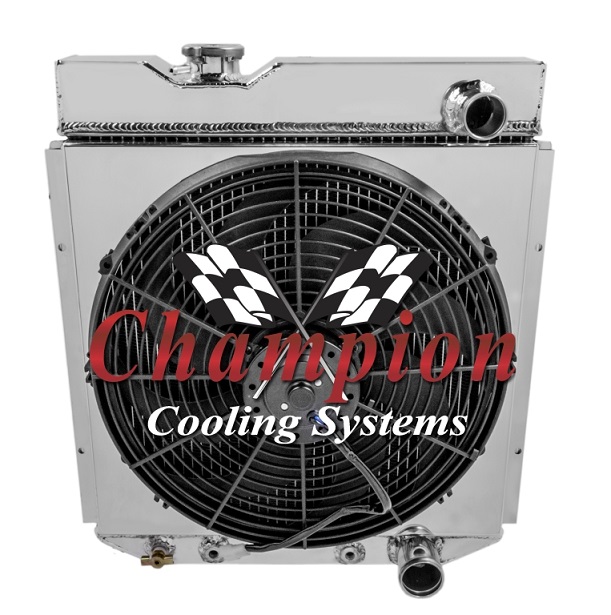

Champion All Aluminum Radiator
Ledfoot Racing Shroud & 16" SPAL Medium Profile Fan

The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below

3-Row Core | Cools up to 450hp

Radiator Dimension:
Total:  21" tall (21.5" with cap) x 19.63" wide (including brackets)
Core: 16.38" tall x 17.25" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Total Thickness: 5.5" to back of fan

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/8-27NPT)



Compatible With
Ford Falcon 1960-1965 (3.3L I6, 289ci V8)
Ford Mustang 1964-1966 (289ci V8)
Ford Ranchero 1960-1965 (289ci V8)
Mercury Comet 1960-1965 (289ci V8)
