CC522-522FS16SP

CC522-522FS16SP

CC522-522FS16SP
Click to enlarge image(s)

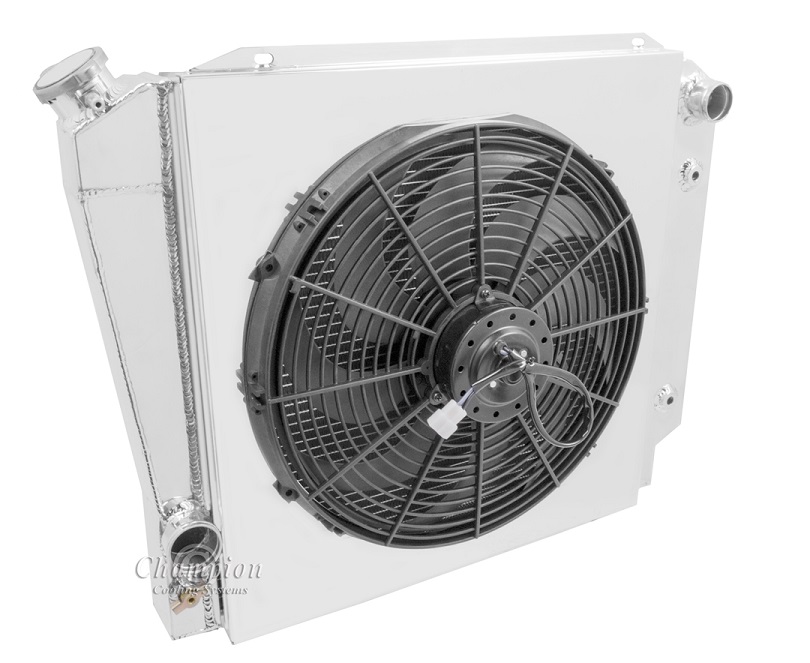

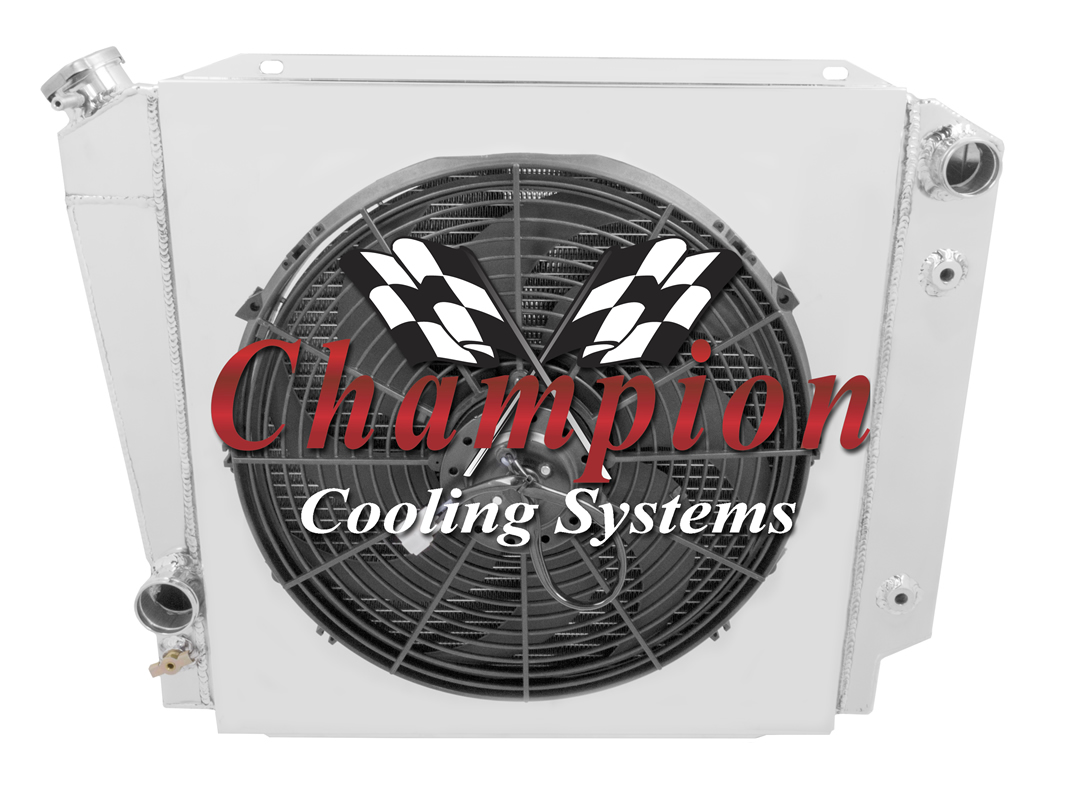

Champion All Aluminum Radiator Plus
Shroud
 & SPAL Medium Profile 16" Fan
Verify clearance for electric fan
Total thickness: 5.25" to fan motor

5.0 Conversion style outlets
3-Row Core | Cools 600hp

Radiator Dimensions:
Total: 21" tall x 26.38" wide
Core: 19.13" tall x 19" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Total Thickness: 5.25"
Shroud Bracket Nut Inserts: 6MM-1

Saddle Mounted

Transmission Cooler included (1/8-27NPT)

13 lb. Radiator Cap included

4-Row Mounts needed for this thicker Radiator



Specifications
66-77 Bronco with V8 Engine Conversion (5.0, etc)
